Avalon Firestyles Outside Air Kit - Manual (Page 3)

Outside Air Kit
99200139
Page 3 of 4 17601452 - 9/7/12 © Travis Industries, Inc.

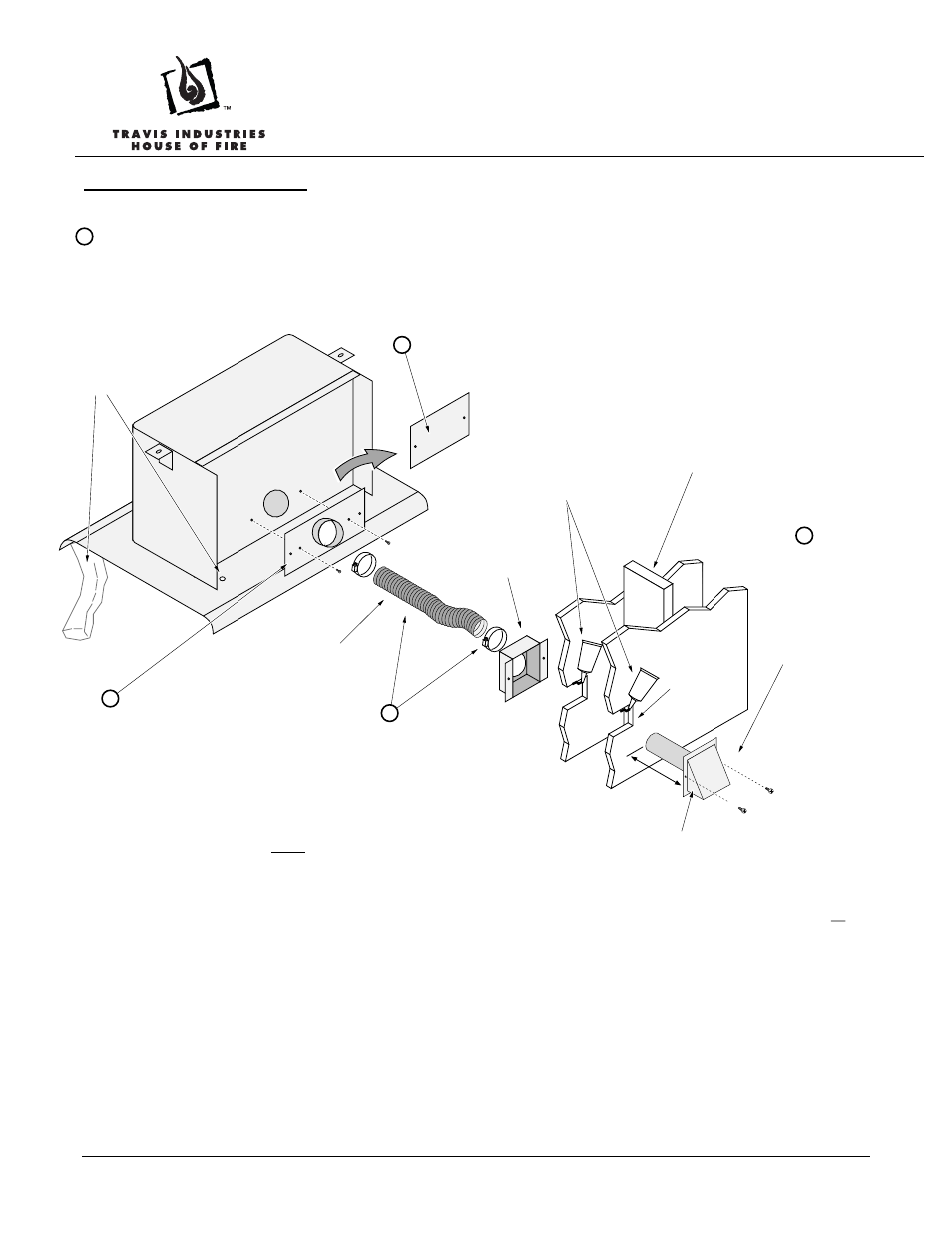

Installation with Pedestal
3" Dia. Flex Duct
(4' max. length)
Select a location between
framing members for the
wall penetration.
NOTE
: If wall is thicker
than 8", attach the flex duct
to the hood then slide the
hood into place.
Hood with Rodent Screen
Silicone
Seal the area around
the tube to prevent
air from entering
through the wall.
Silicone
Remove the cover
plate on the pedestal.
Secure the flex duct to the
air duct assembly using
the included hose clamp.
Attach the outside air duct
assembly to the pedestal
with the same screws that
held the cover plate in
place.
b
c
a
Tuck insulation (included with the
pedestal) under both sides of the
pedestal and under the holes on the
base of the pedestal. This prevents air
from being
drawn from below
the pedestal.
e
Slide the hood
through the wall and
secure to the outside
wall with the two
included screws. Cover Plate
d
Slide the cover plate over the flex duct
then attach the flex duct to the hood with
the included hose clamp. Secure the
cover plate to the wall with the included
screws (and drywall anchors if needed).
HINT
: The flex must be fully stretched and
the ends cut square and flatted for it to fit
properly. The tube on the hood and air
duct may be crimped if necessary.
Min. 3"
Dia. Hole
8"
