Installation
(for qualified installers only)
3 7
© Travis Industries 4 0 7 0 6 2 0 100-01188_000

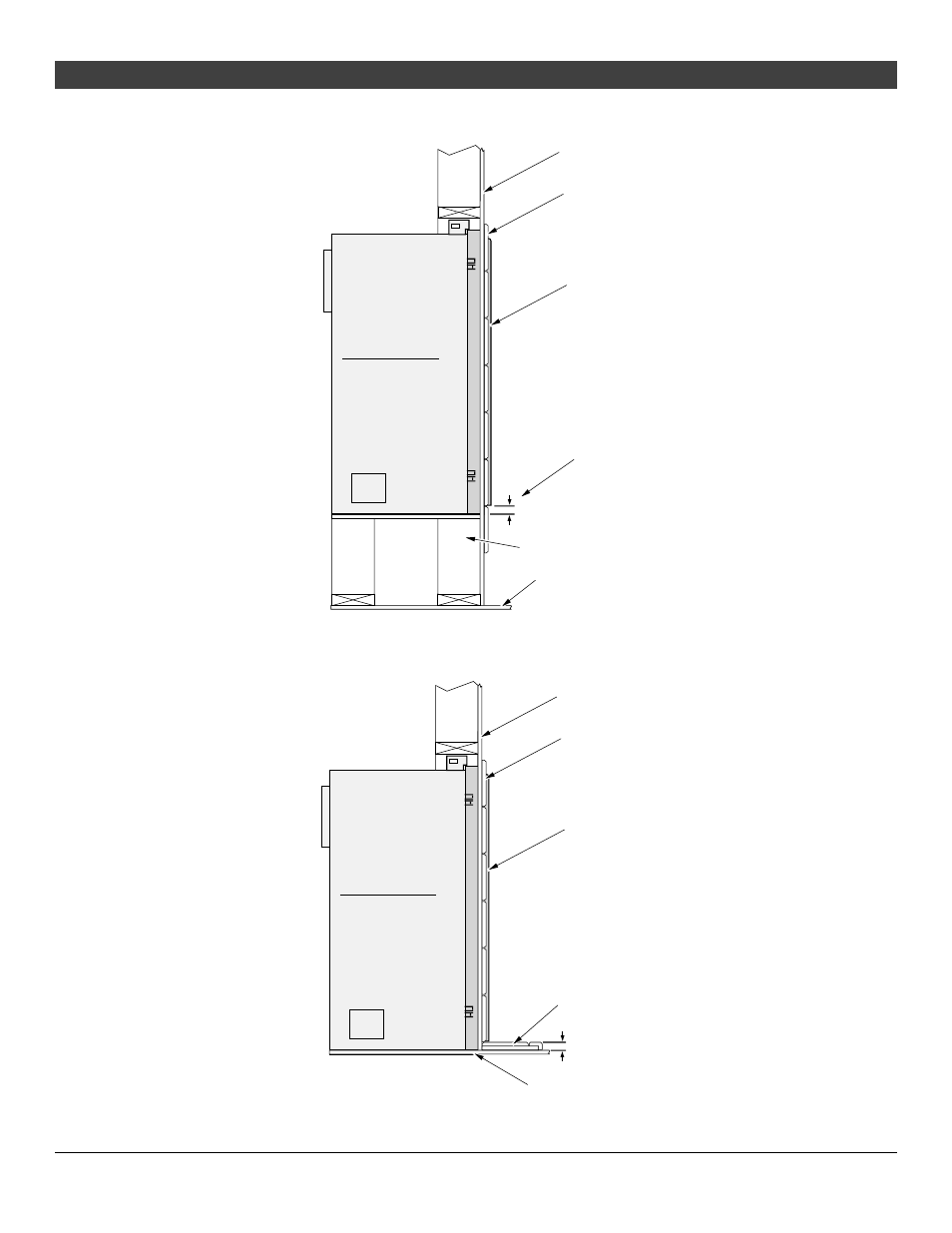

Thin Facing Installation (tile, marble, under 1" thick) - Side View
Drywall
SIDE OF FIREPLACE
SIDE OF FIREPLACE
Tile
(or other facing under 1” thick)
Face
Note how the facing extends 1”
above the base of the fireplace.
1”
Fireplace Support
Floor
Drywall
Tile
(or other facing under 1” thick)
Face
Floor
Max. 1”
Hearth (note how it extends under the
face - max. 1” thick). The fireplace may
be raised to accommodate thicker
hearth materials.
Floor-Mounted Fireplace
with Hearth
Raised Fireplace
(with no Hearth)
