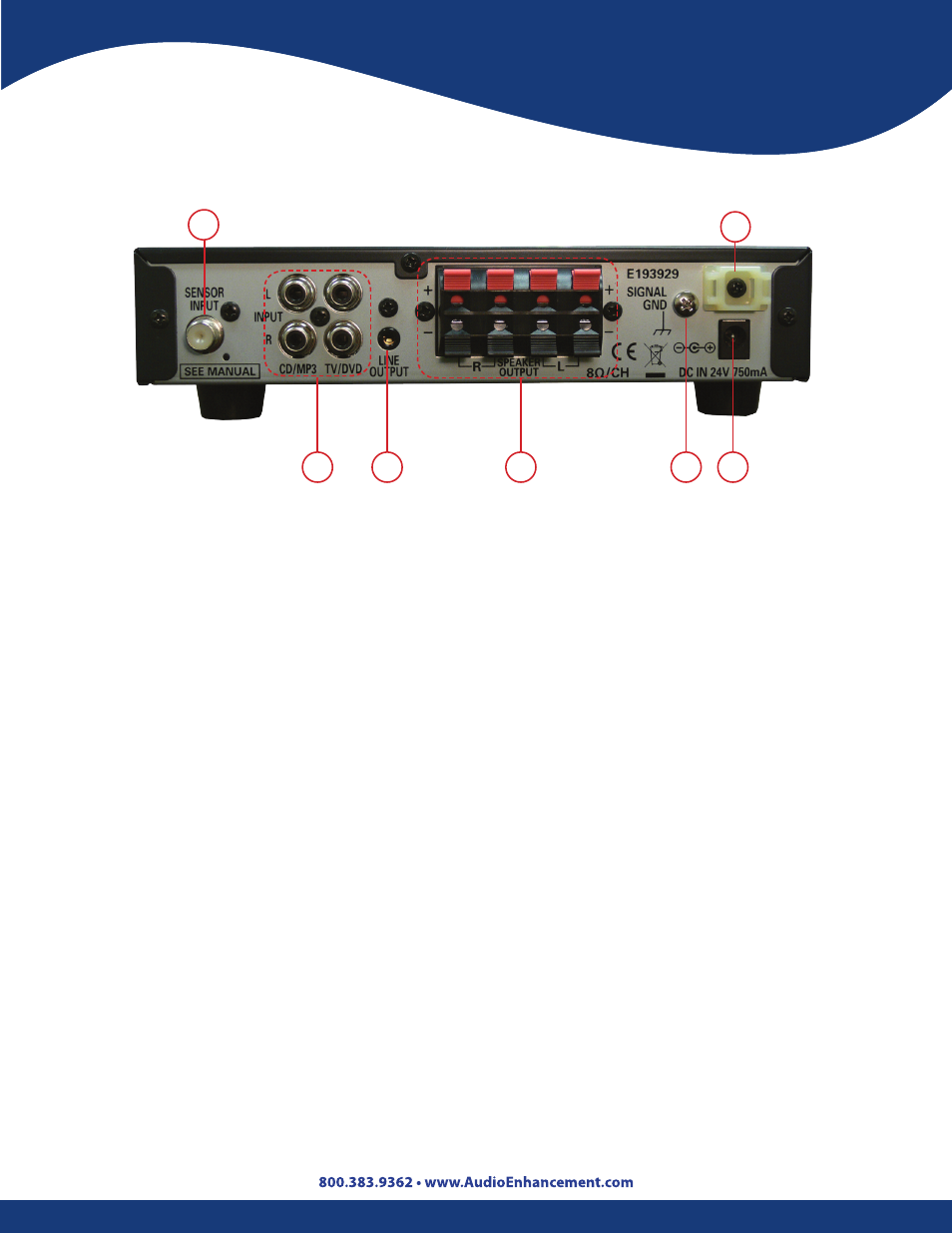

Operating Controls
1. Sensor Input Terminal: Connection via F-connector and coaxial cable for the infrared
sensors . It also supplies power to the sensors (24 V) .
2. Input Terminals [TV/DVD, CD/MP3]: Connections for TV/DVD and CD/MP3 .
3. Line Output Terminal: Provides a line level output for connection of personal FM system,
recording devices, or video conferencing systems . All input signals, including microphones
and auxiliary inputs, are mixed and provided at the line output terminal .
4. Speaker Output Terminals: Connections for the speakers (8 Ω) .
5. Ground Screw [SIGNAL GND]: When the amplifier is used with a combination of external
devices, connect the ground terminal of each device to reduce the difference in potentials
between devices .
6. Mount for Cable Clamp: Used to bundle cables and speaker wires with tie-wraps .
7. DC Power Terminal: Connect the specified AC adapter . Supplies 24 V DC .
IDENTIFICATION
The vendor’s name, model number and the nature of supply are marked on the bottom of the
apparatus .
2 3 4 5 7
