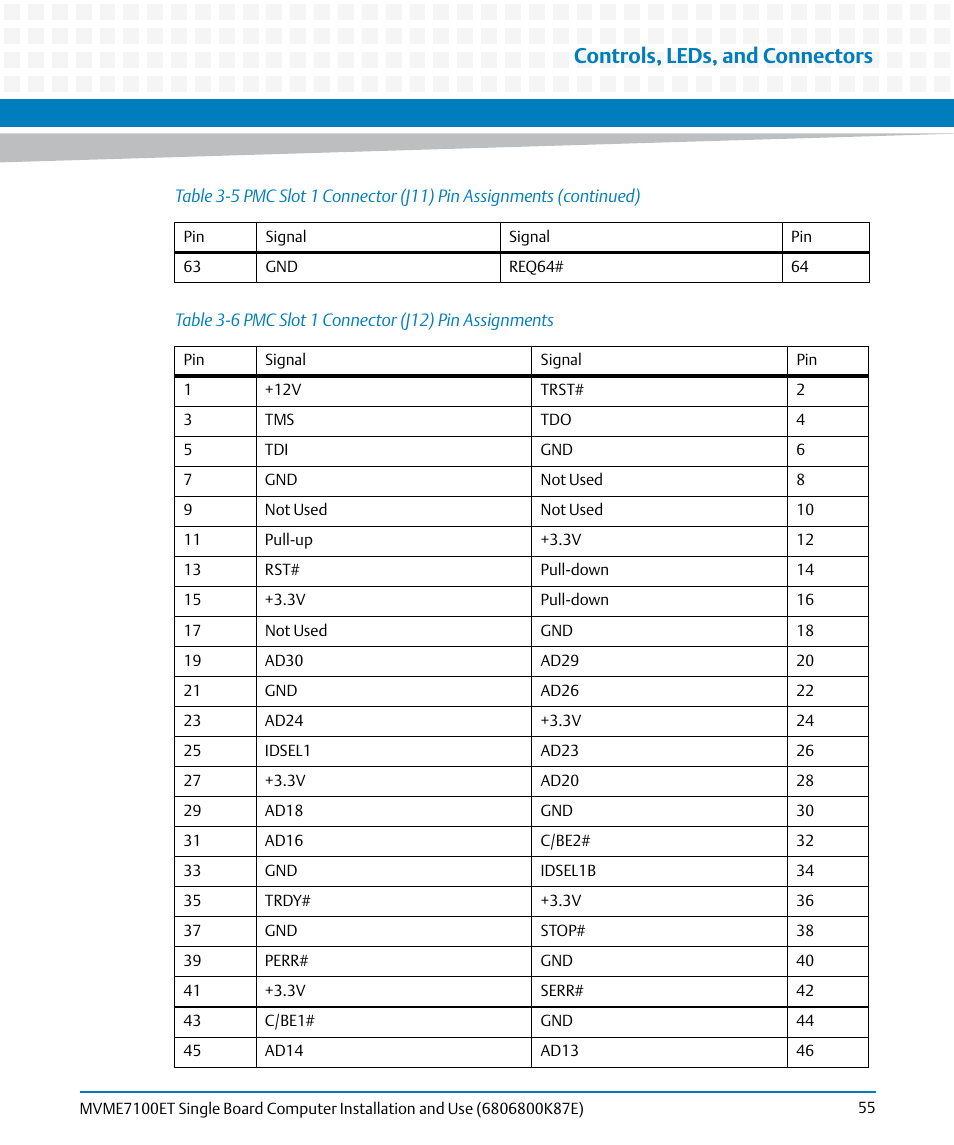

Table 3-6, Pmc slot 1 connector (j12) pin assignments, Controls, leds, and connectors – Artesyn MVME7100ET Single Board Computer Installation and Use (June 2014) User Manual
Page 55
