Introduction

COMX-CORE Series Installation and Use (6806800K11F)

24

1.3.2

Heat Spreader Mechanical Data

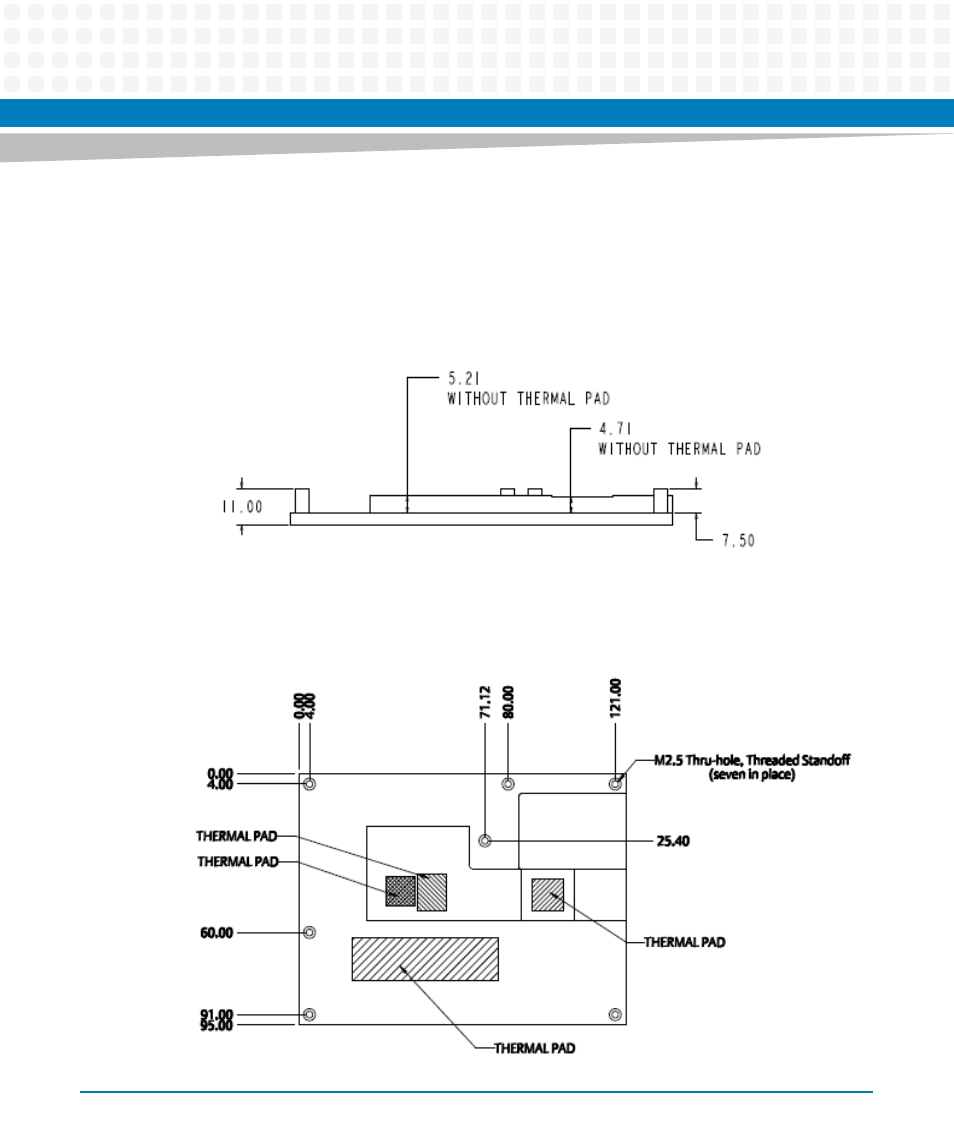

Figure 1-4

Heat Spreader Mechanical Dimensions (Side View)

Figure 1-5

Heat Spreader Mechanical Dimensions (Rear View)
