Sorensen SLH-Series DC High Power Electronic Load Appendix B
The following specifications apply 25 °C ± 5°C:
Model SLH-60-240-3600
INPUT RATINGS
VOLTAGE 60 V
CURRENT 240 A
POWER 3600 W
CC MODE
Range 0-24 / 0-240 A
Resolution 6.4/64 mA
Accuracy ±0.2% OF (SETTING + RANGE)
CR MODE (1)
Range 1 (I>0.05% of rating) 0.25 - 937.5Ω
Range 2 (I>0.5% of rating) 0.0133 - 0.25 Ω
CV MODE
Range 2 - 60V
Resolution 0.015V
Accuracy ±0.1% OF (SETTING + RANGE)
CP Mode
Range 0-3600W
Resolution 0.96W
Accuracy ±0.5% OF (SETTING + RANGE)
SHORT MODE
Max. Resistance 2mΩ
Current 240 A
DYNAMIC MODE
Thigh/Tlow 50uS to 9.999 Sec
Slew Rate Low 2mA - 500mA/uS
Slew Rate High 20mA - 5A/uS
Accuracy ±10% OF SETTING + 10 μs
4 1/2 DVM
Range 0 - 20.00/60.00V
Resolution 0.001/0.01V
Accuracy ±0.05% OF (READING + RANGE)
4 1/2 DAM
Range 0 - 24/240 A
Resolution 1 / 10 mA
Accuracy ±0.5% OF (READING + RANGE)
Imonitor 24 A/V
PROTECTION
OPP ~1890 W
OCP ~252 A
OVP ~ 63 V
OTP ~ 85℃
Load ON Volt.
Range 0.1 - 25V
Resolution 0.1V
Accuracy 1% of Setting + 0.25V
Load OFF Volt.
Range 0 - 25V
Resolution 0.002V
Accuracy 0.05% of Setting + 0.0125V
ENVIRONMENTAL
Operating Temp. 0-40 °C
SLH-60-240-3600 Master/Slave
0
15
30
45
60
0 60 120 180 240
Current (Amps)
Vo
lt
a
g
e
(
V
)

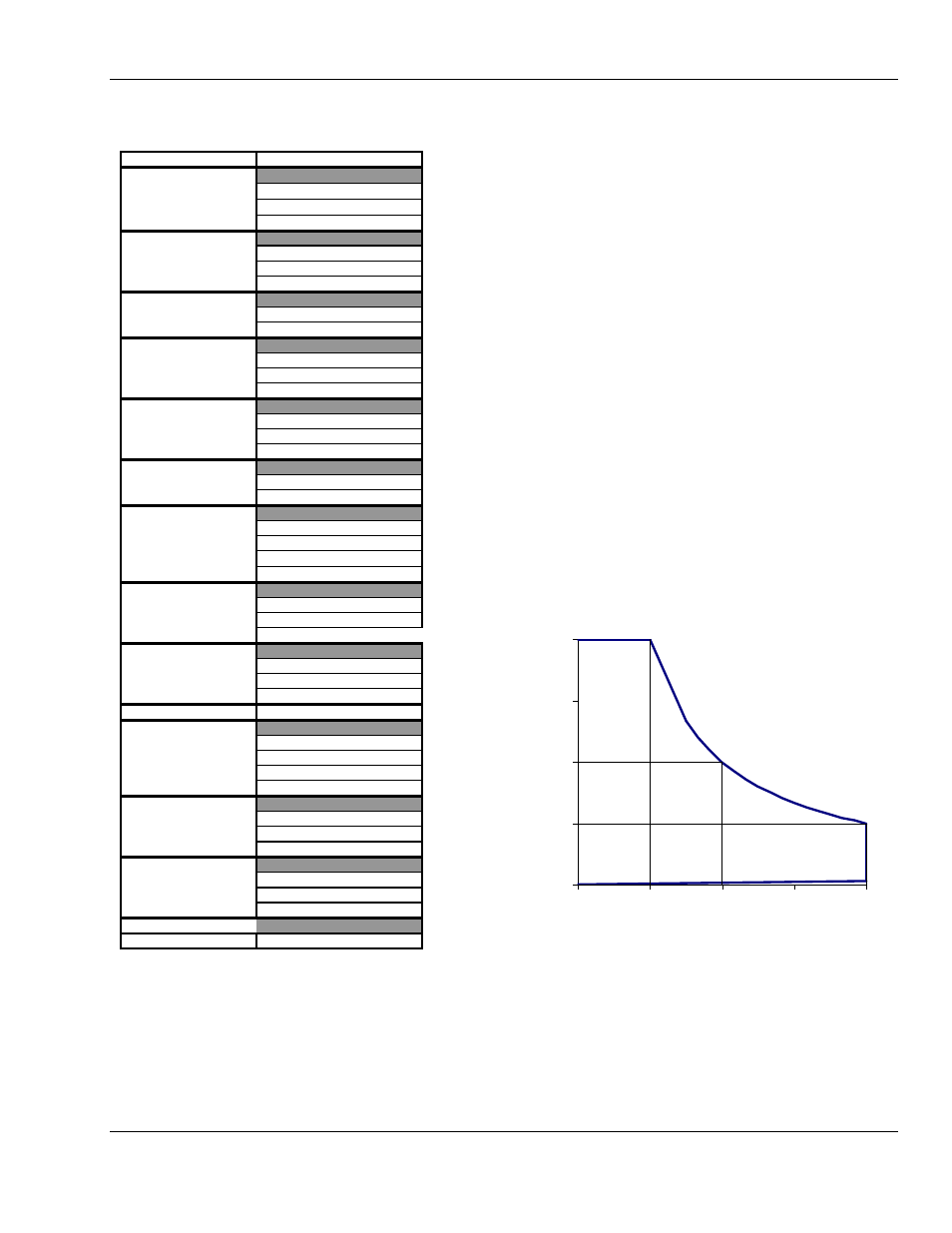

Table B-2 SLH-Series Specifications Figure 8 Power Curve
