Appendix B Sorensen SLH-Series DC High Power Electronic Load
B-8 M540074-01 Rev C
AC Power
Connect a power cord from each load unit into a power strip connected to a single AC
power switch. If there are more load units than there are outlets in the power strip,
connect another power strip into the first power strip for a serial connection, so that the

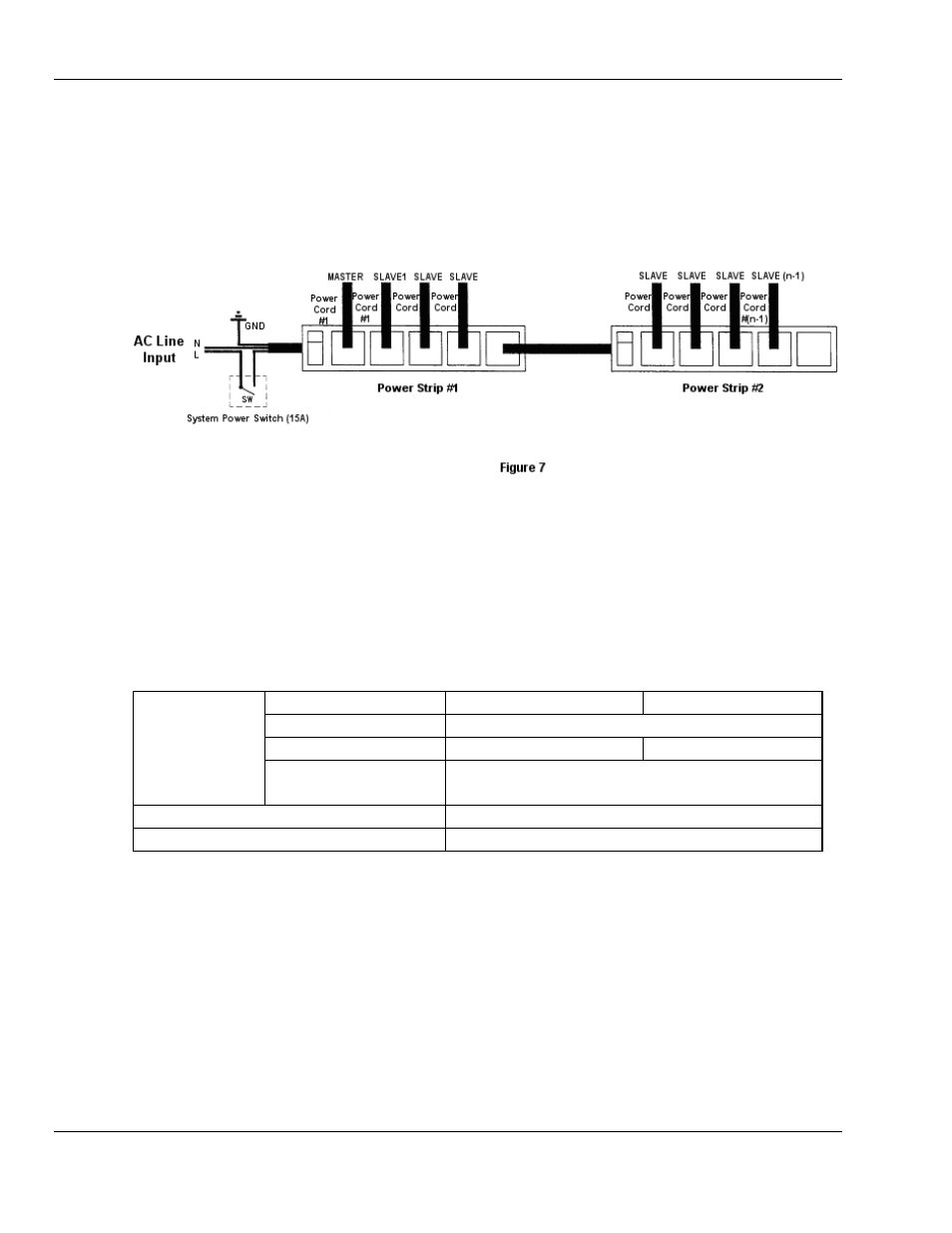

single AC power switch controls all load units at the same time. See Figure 7.
B.4 Specifications Addendum
All specifications detailed in the SLH-Series High Power Electronic Load, Operation and
Programming Manual shall apply with the updates to Section 1.4 as noted below.
The next two tables provide specifications for the SLH High Power Electronic Load. Table B-
1 applies per basic load unit, i.e. for each master or slave unit.
LINE 100V/115V±10% 200V/230V±10%
FREQUENCY 50/60 HZ
AC INPUT FUSE 2A/250V (5x20mm) 1A/250V (5x20mm)
MAX. POWER
CONSUMPTION
100 W
DIMENSIONS (W*H*D) 17.3x7.0x17.5 in. (440 x177 x445 mm)
WEIGHT NET : 51.9 lbs. (23.6 kg)
Table B-1 AC Line Input per Load Unit
