Parallel and multiphase configurations -3, 3 parallel and multiphase configurations – AMETEK CW-M User Manual
Page 35
Elgar CW-M Series
M161570-01
4-3
4.3 PARALLEL AND MULTIPHASE
CONFIGURATIONS
To operate parallel and/or multiphase configurations, set the switches,
cables, and wiring as shown in the examples below.
4.3.1
S
ETUP FOR
T
HREE
-P
HASE
,
T
WO
P
ARALLELED PER
P
HASE
C
ONFIGURATION

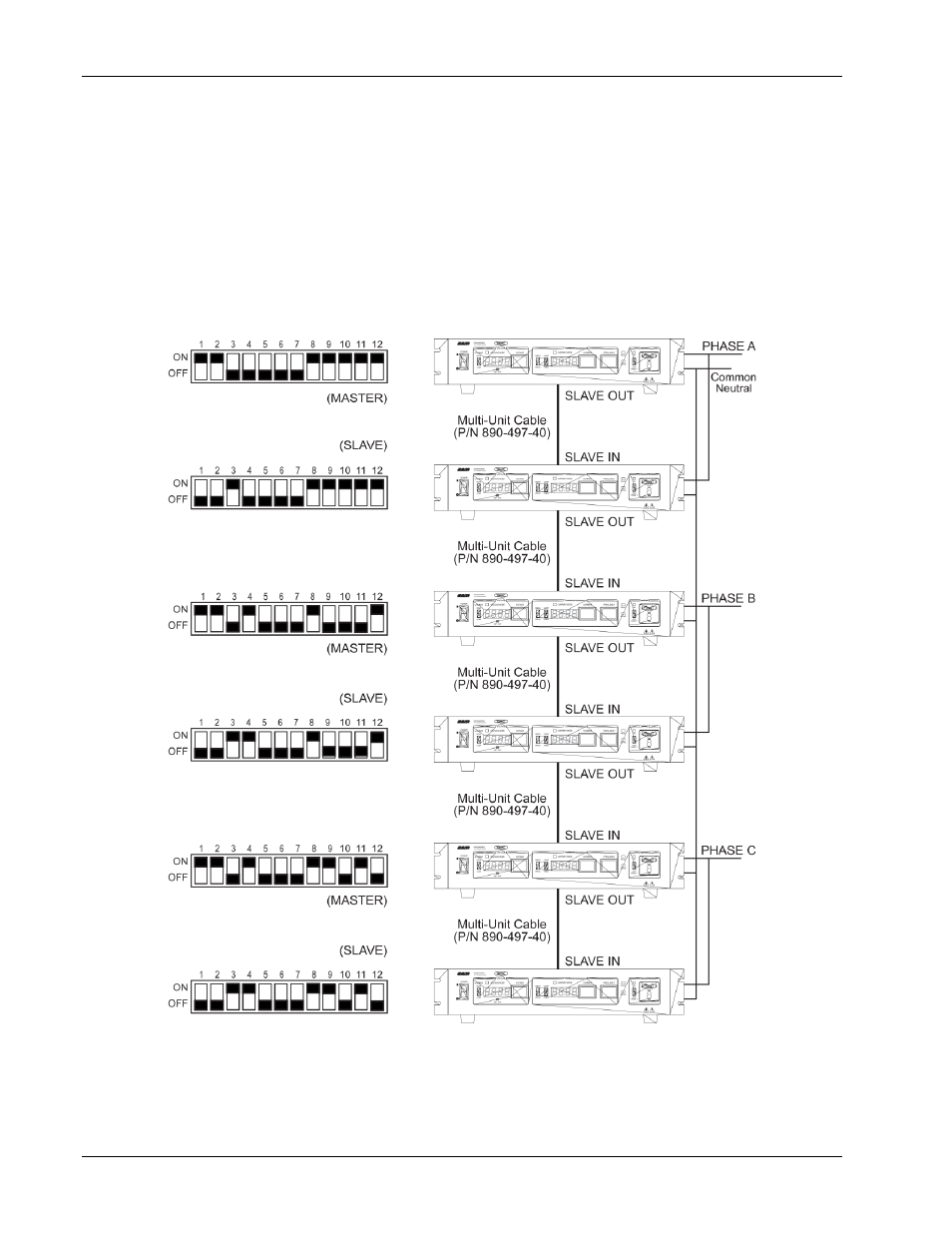

Figure 4-5. Dipswitch Settings for 3-Phase, 2-Paralleled Each, Configuration
