Db15-m analog audio input pinout, Analog, Audio – Adtec digital EN-91 / EN-91P (version 1.02.29) Manual User Manual

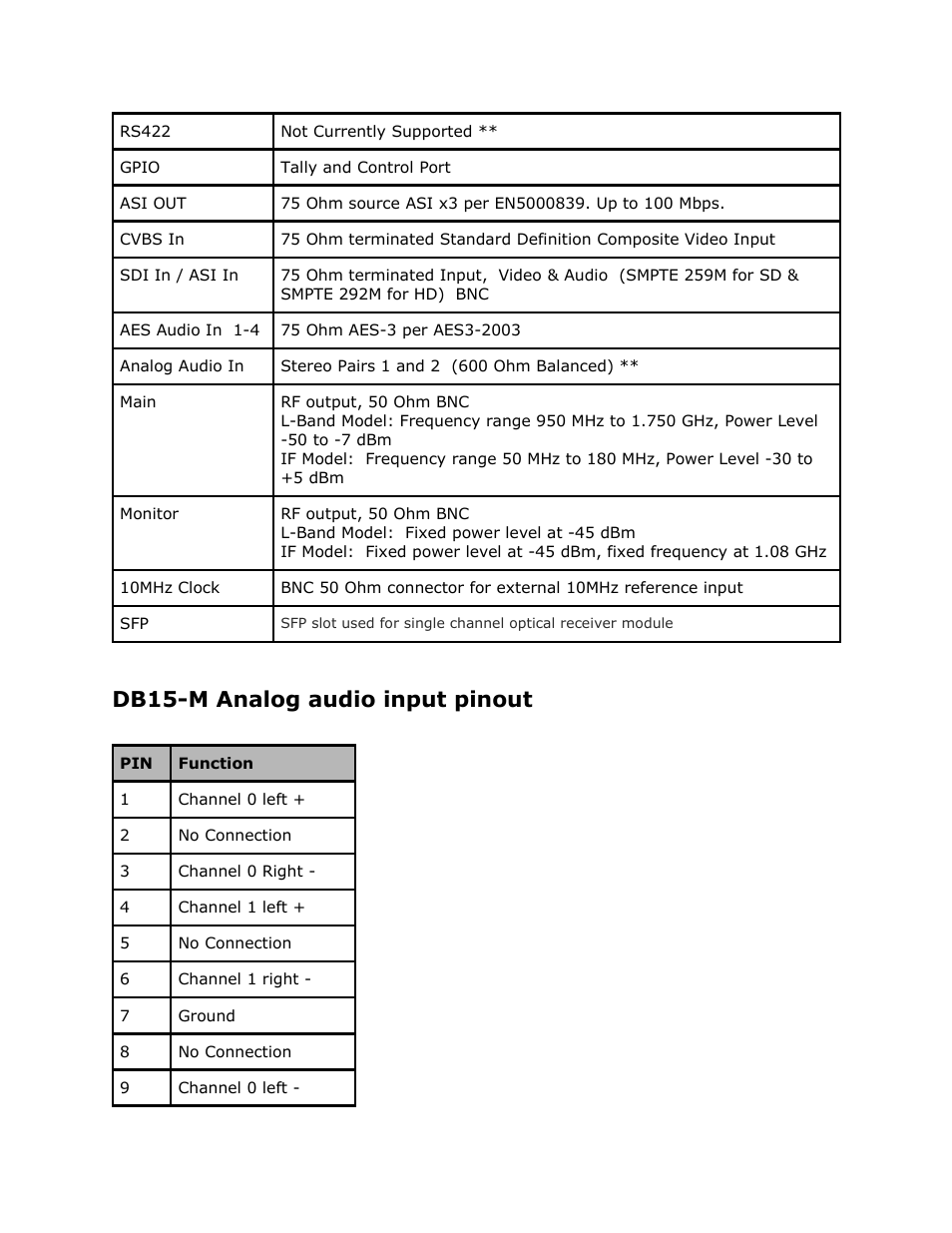

Page 35: Input, Pinout

Db15-m analog audio input pinout, Analog, Audio | Input, Pinout | Adtec digital EN-91 / EN-91P (version 1.02.29) Manual User Manual | Page 35 / 67

Db15-m analog audio input pinout, Analog, Audio | Input, Pinout | Adtec digital EN-91 / EN-91P (version 1.02.29) Manual User Manual | Page 35 / 67
