4.19 Stream Counter
Please note that only XM-2301,XM-28L1, XM-22R4(F), 23R2(G) module cards support
this function.

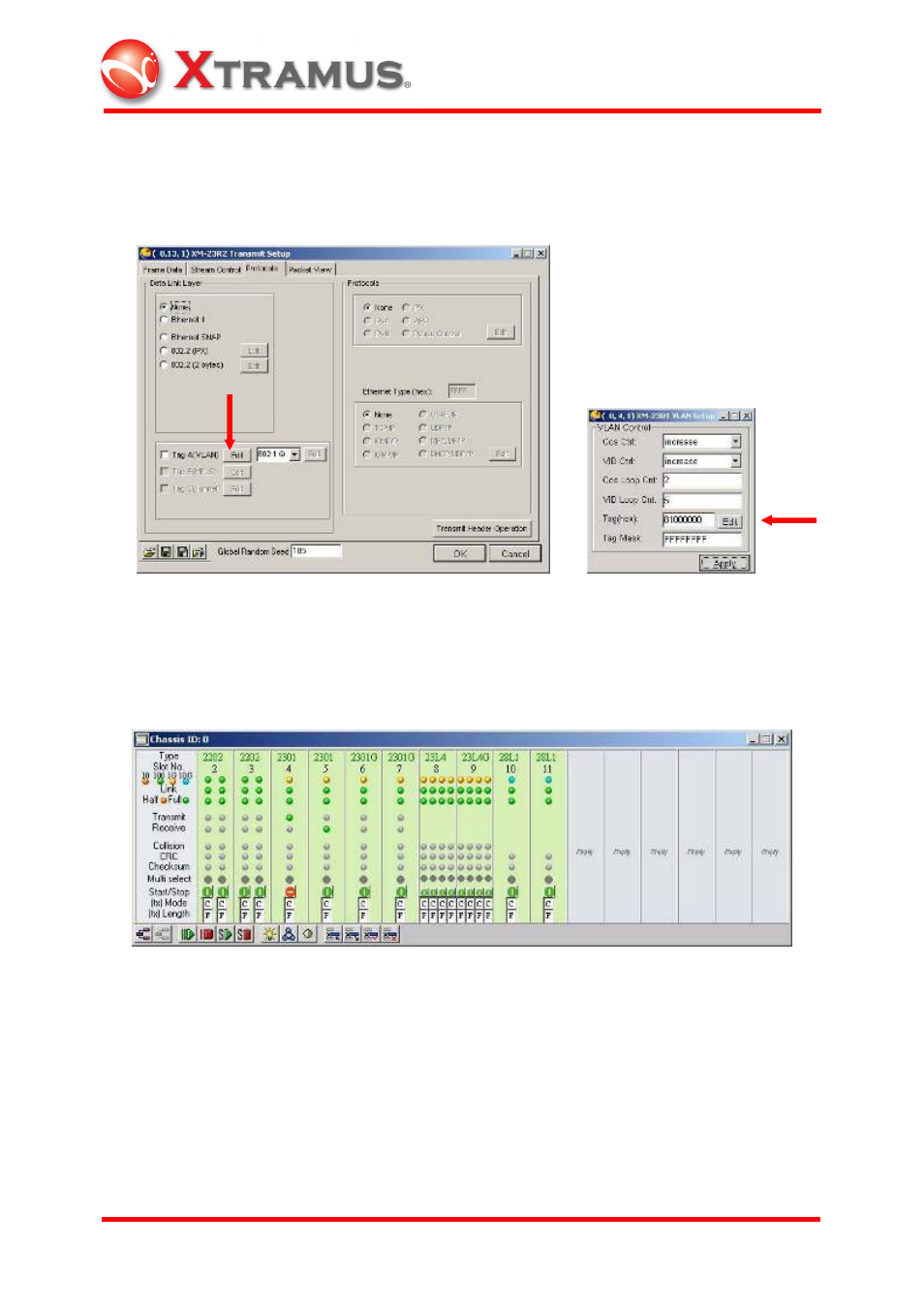

Stream Counter function is for verification of the Cos (4 bits) and VID (12 bits) of VLAN
tag (4 bytes). Before sending traffic, go to the Protocols tab of Transmit Setup
window, check off Tag A (VLAN) and press the Edit button to bring out VLAN Setup
window. In this case, loop count of VID is 5 with 1 bit of increment.
In this case, traffic is sent from card 4 to card 5, so VLAN is set at card 4, and Stream
Counter is set at card 5.
