PROFIBUS DP Slave Communication Module DVPPF02-H2
DVP-PLC Application Manual 4
2 Product Profile & Outline

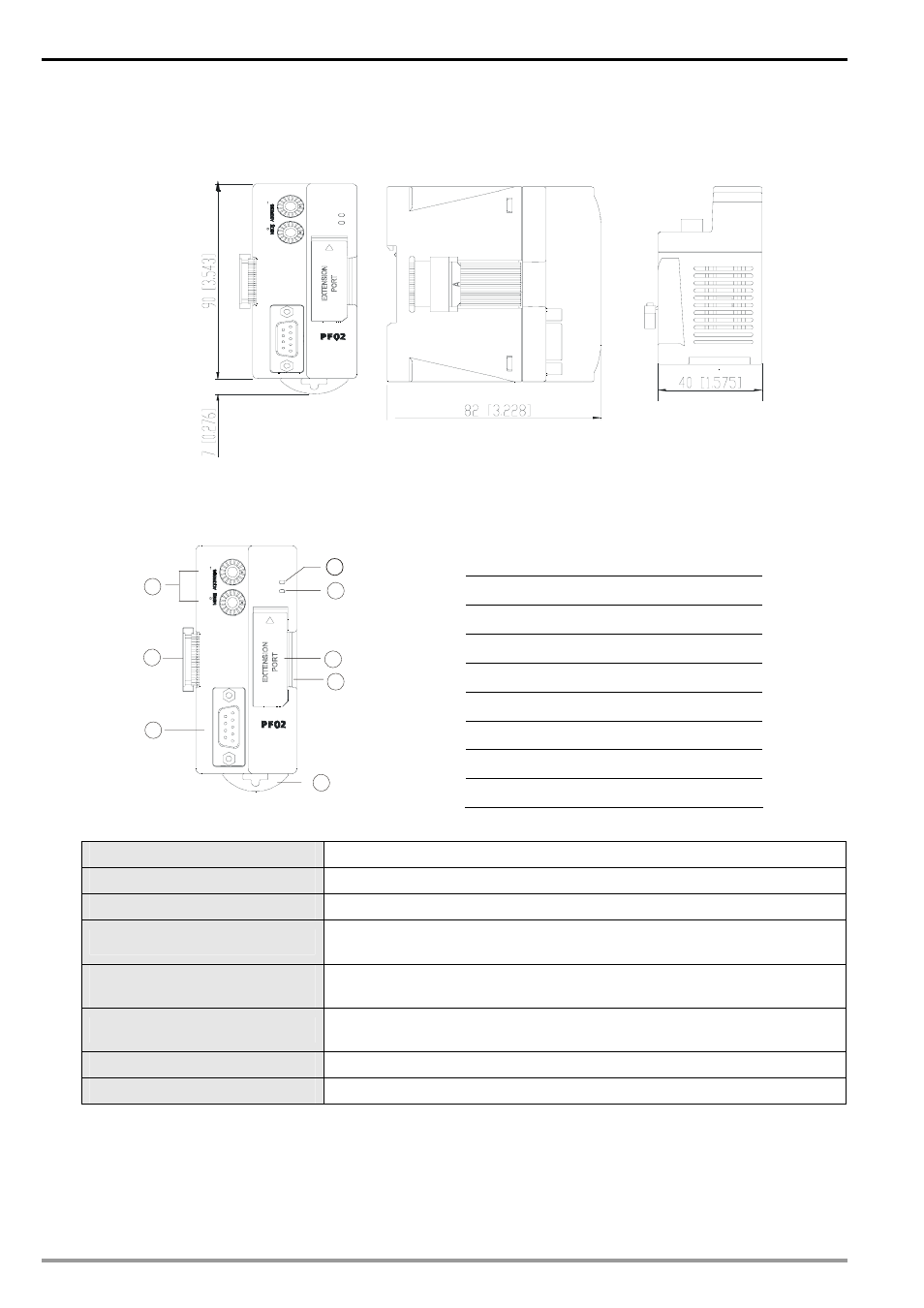

2.1 Dimension
PO W E R
N ET
X 16
X 16
Unit: mm [inch]
2.2 Product Profiles
POWER
NET
X 1 6
X 1 6
2
3
5
4
6
7
1
8
c
Extension port
d
Address switch
e
POWER indicator
f
NET indicator
g
PROFIBUS DP connection port
h
Extension module interface
i
DIN rail clip
j
DIN rail
Extension port: For connecting to the next H2 series extension module.
Address switch: For setting up the address of DVPPF02-H2 on PROFIBUS DP network.
POWER indicator: Indicating whether the power supply is normal.
NET indicator:
Indicating if the connection between DVPPF02-H2 and PROFIBUS DP
is normal.
PROFIBUS DP connection
port:
Connecting DVPPF02-H2 to PROFIBUS DP network.
Extension module interface:
Connecting DVPPF02-H2 with DVP-EH2 MPU or H2 series extension
modules.
DIN rail clip: Fixing DVPPF02-H2 to DIN rail.
DIN rail: Installing DVPPF02-H2 to DIN rail.
2.3 Connecting DVPPF02-H2 to DVP-EH2 Series PLC MPU
Switch off DVP-EH2. Open the connection port on the right hand side of DVP-EH2 and connect
DVPPF02-H2 to DVP-EH2. Switch on DVP-EH2, and DVP-EH2 will supply power to DVPPF02-H2. There is no
need to connect DVPPF02-H2 to an external power supply.
