PROFIBUS DP Slave Communication Module DVPPF02-H2
DVP-PLC Application Manual
23

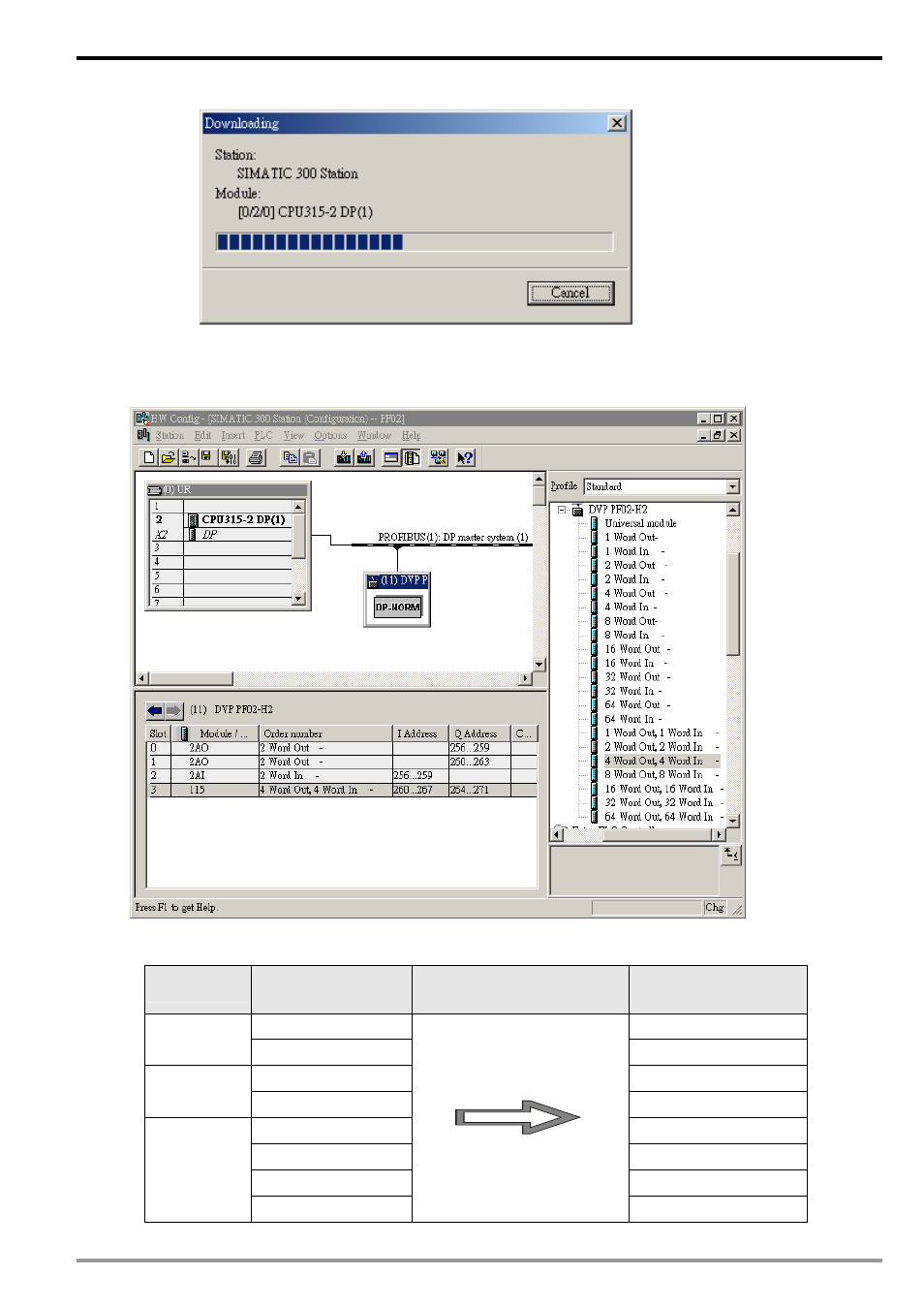

4. After the download is completed, the NET LED on DVPPF02-H2 will be constantly on in green.
¡ Data mapping
See the data mapping information in the table below under the parameter configuration as shown above:
Slot
External I/O word
for S7-300
Data transmission direction
in PROFIBUS DP network
Register in
DVPPF02-H2
PQW256 CR#103
0
PQW258 CR#104
PQW260 CR#105
1
PQW262 CR#106
PQW264 CR#107
PQW266 CR#108
PQW268 CR#109
3
PQW270
CR#110
