CHANGING BLADES
Disconnect machine from power source.
1. Raise the saw arm to the vertical position and open
the blade wheel cover by releasing stud knob (A)
Fig. 36A and removing screws (H).
2. Release blade tension by turning blade tension
hand knob (B) Fig. 36B.
3. Remove the two finger guards (C) by removing
screws (I).
4. Carefully slip blade (D) off both wheels (E), and
guide assemblies (F).
5. Place the new blade between each of the blade
guide bearings (F) and around both wheels (E).
NOTE: THE TEETH MUST BE POINTING DOWN
ON THE RIGHT HAND SIDE AS SHOWN BY THE
DIRECTIONAL ARROW IN FIG. 31.
6. Replace finger guards (C), and adjust blade tension
by turning hand knob (B).
7. Close the blade wheel cover (J) Fig. 36A.

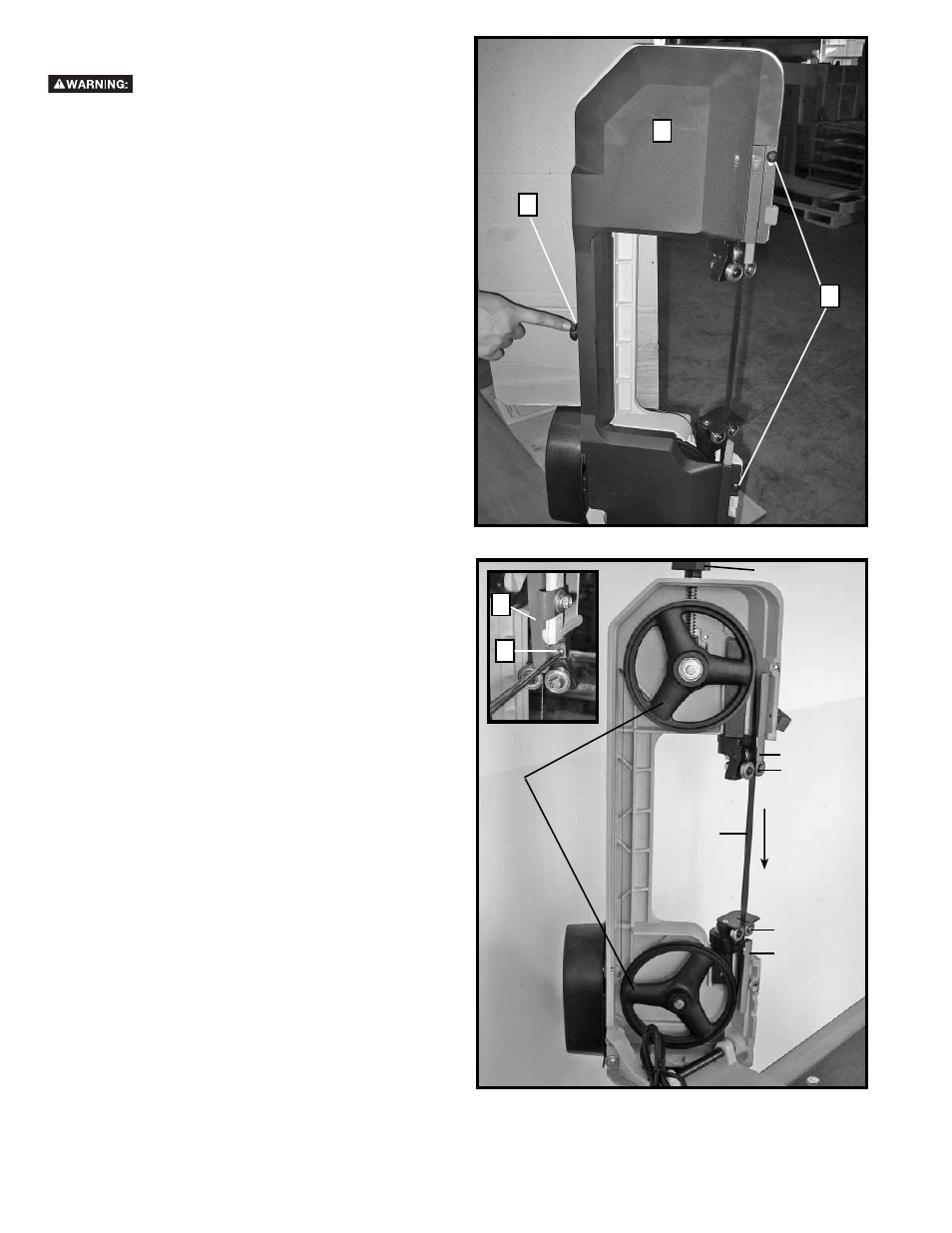

Fig. 36B
B
E
C
D
TEETH
DIRECTION
F
C
H
A
Fig. 36A
C
I
J
F
