Chapter 2: Camera Configuration
NCr-302-VHR User Manual
Video

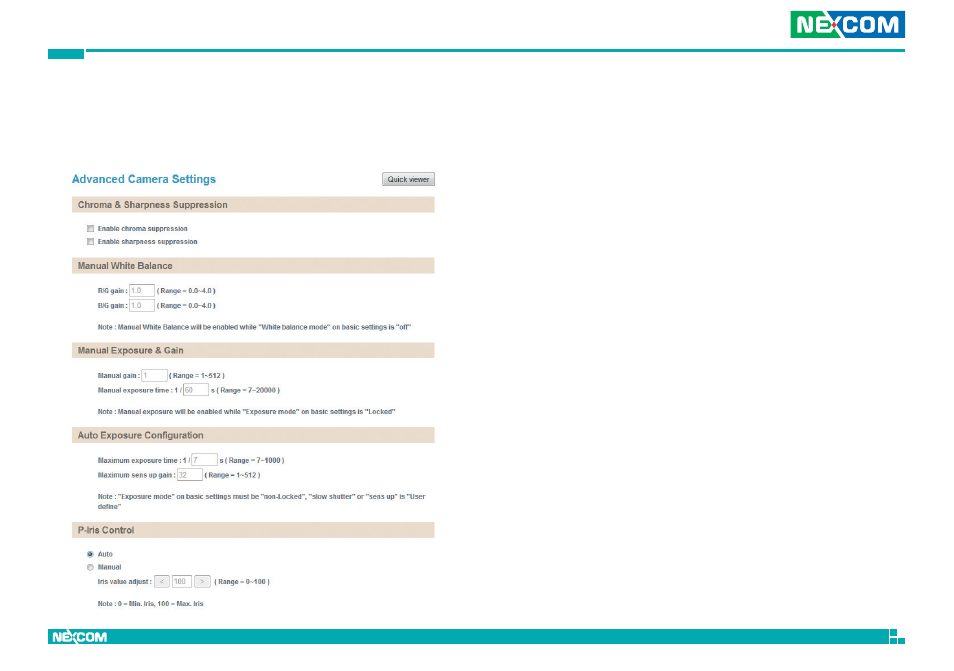

Camera Settings (Advanced)
This section is used to adjust the camera’s advanced image settings.
Chroma & Sharpness Suppression
Enable Chroma Suppression
Enables or disables chroma suppression. Enabling chroma suppression will
reduce the image noise captured from low-light environments.
Enable Sharpness Suppression
Enables or disables sharpness suppression. Enabling sharpness suppression
will minimize the sharpness caused by noise in low-light captures.
Manual White Balance
Note: To adjust the white balance manually, please set the White Balance
Mode to Off in Basic Settings.
R/G Gain
Adjusts the warm white balance, the range is 0.0 ~ 4.0 (from yellow to red).
B/G Gain
Adjusts the cold white balance, the range is 0.0 ~ 4.0 (from green to blue).
Manual Exposure & Gain
Note: To adjust the exposure and gain manually, please set the Exposure
Mode to Locked in Basic Settings.
Manual Gain
Adjusts the camera’s gain manually, the range is 1 ~ 512. Setting a higher
value will increase the camera’s signal and produce brighter images for low-
light environments.
Manual Exposure Time 1:1 and 2:1
Adjusts the camera’s exposure manually, the range is 1:1/7 ~ 1:1/20000 and
2:1/7 ~ 2:1/20000, with 1/20000 being the shortest exposure length.
