Cable Wiring Description

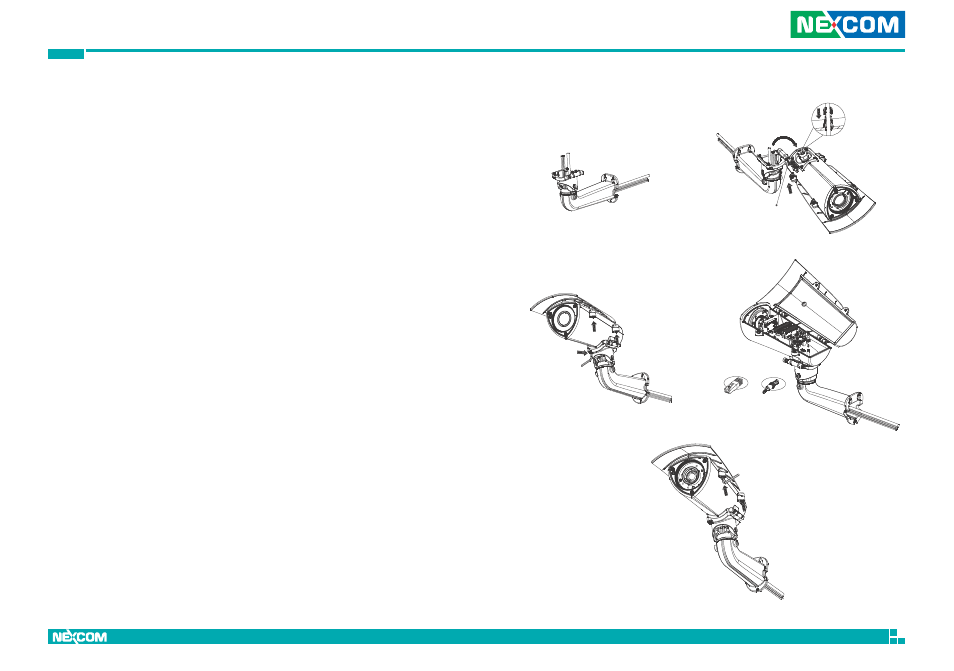

1. Cable Installation Steps:
2. Run the cable inside the wall mount bracket and out through the cable
opening at the front.
3. Press down the push-lock mechanism and secure the camera onto the
push-lock. Wire the network cables to the waterproof connector on
the right, and wire the line-in, line-out, DC 12V/AV 24V, DI/O and other
cables to the waterproof connector on the left. Tighten the waterproof
connector after all the cables are secured in place.
4. Secure the camera onto the wall mount bracket using the two screws
provided.
5. Open the camera’s top cover to access the wired cables. Install the RJ45
connector to the Ethernet cable and plug it into the corresponding port
on the MB module.
6. Close the camera’s top cover and secure it with the supplied hardware
tool to complete.
RJ45 PHONE
JACK
Push Lock
q
w
e r
