Chapter 3: System Setup

MPPC 2120T/3220T User Manual

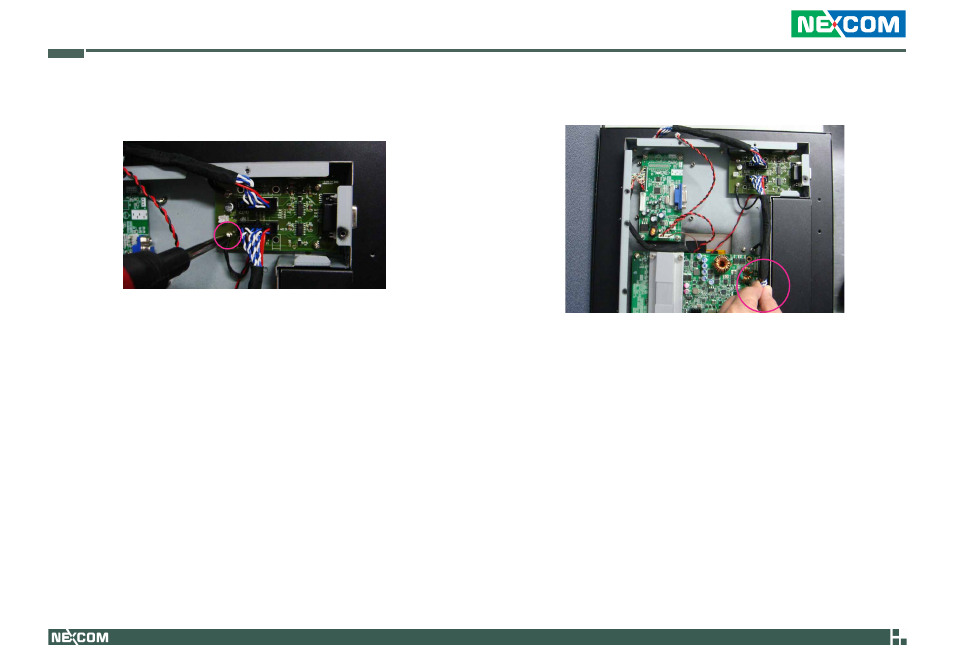

7. Install the VGA Splitter into the chassis and then use the provided

mounting screws to secure the card in place.

8. Connect the cable shown below to the main board.
