CIRCUTOR RGU2 Series User Manual
Page 9

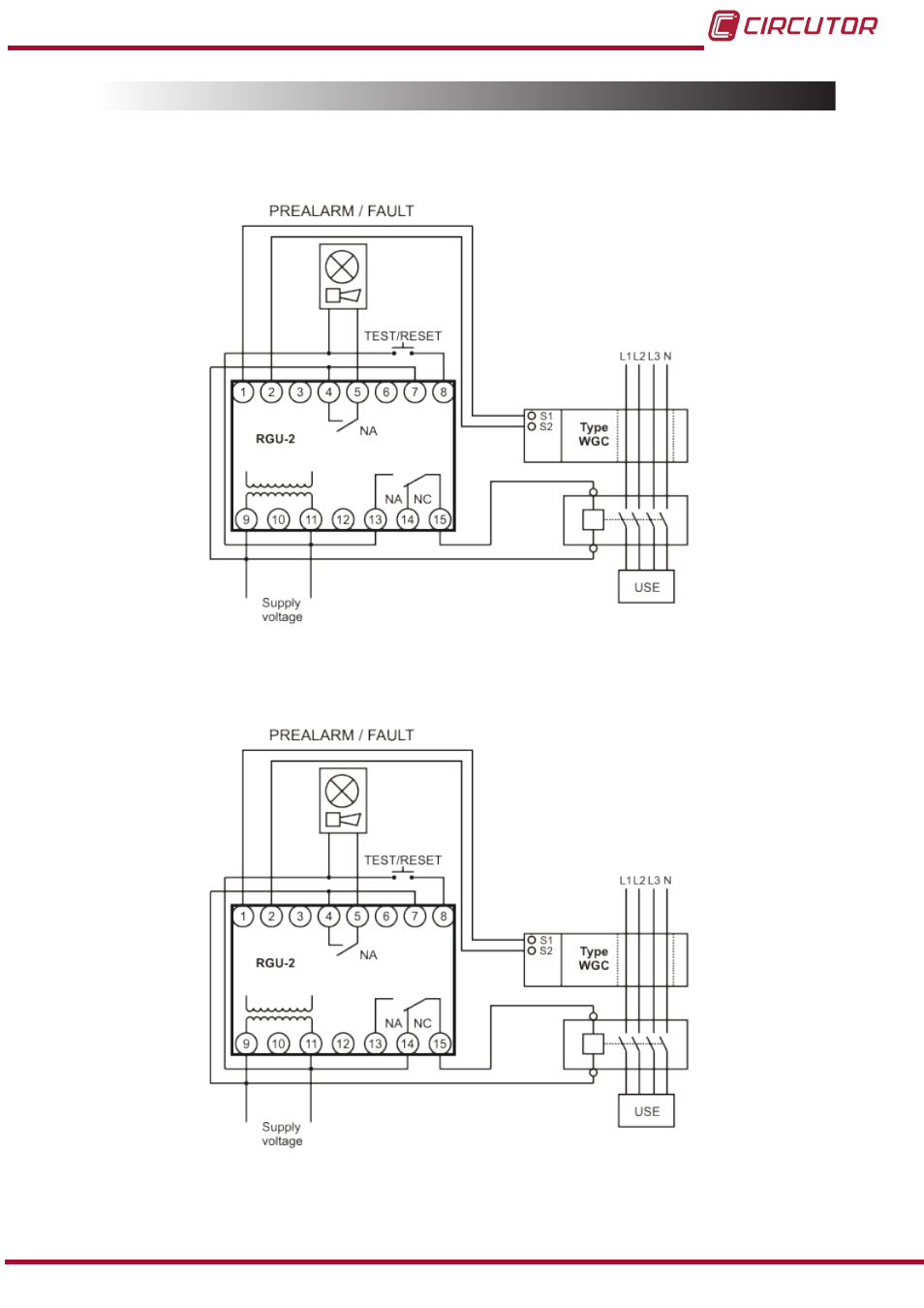

3.4.- CONNECTION DIAGRAM
3�4�1� AS A PROTECTION ELEMENT (MRCD)
A�- SHUNT COIL TRIP (Manual reclosing system with RESET)
Figure 2: Connection diagram of the unit as a protection element: shunt coil trip�
B�- UNDERVOLTAGE COIL TRIP (Manual reclosing system with RESET)
Figure 3:Connection diagram of the unit as a protection element: undervoltage coil trip�
9
Instruction Manual
RGU-2 Earth Leakage Relay
