Fireplace Installation

electric shock or injury to persons,

always use a licensed electrician.
Ensure that the on/off switch

is set to the Off position (refer to

operation section) and that the

circuit on which the fireplace is to

be installed has the power cut off at

the service panel until installation is

complete.

Lift fireplace and insert into

3.

opening. The fireplace's

mounting trim should be flush

against the wall (Figure 14).
Use bubble level (supplied) to

4.

level the fireplace within the

framing. Adjust as required.
Drive four (4) supplied

5.

mounting screws through the

four (4) mounting holes located

on the inside surface of the

fireplace chassis, into wall

studs (Figure 14).
refer to Front Glass

6.

Installation section, page

16 for final installation

procedures.

Front glass Installation

Evenly distribute supplied

1.

glass rock on the front tray of

the fireplace (Figure 15).
Carefully mount front glass

2.

assembly so that the front

glass hooks (4) hang on the

front glass mounts on the

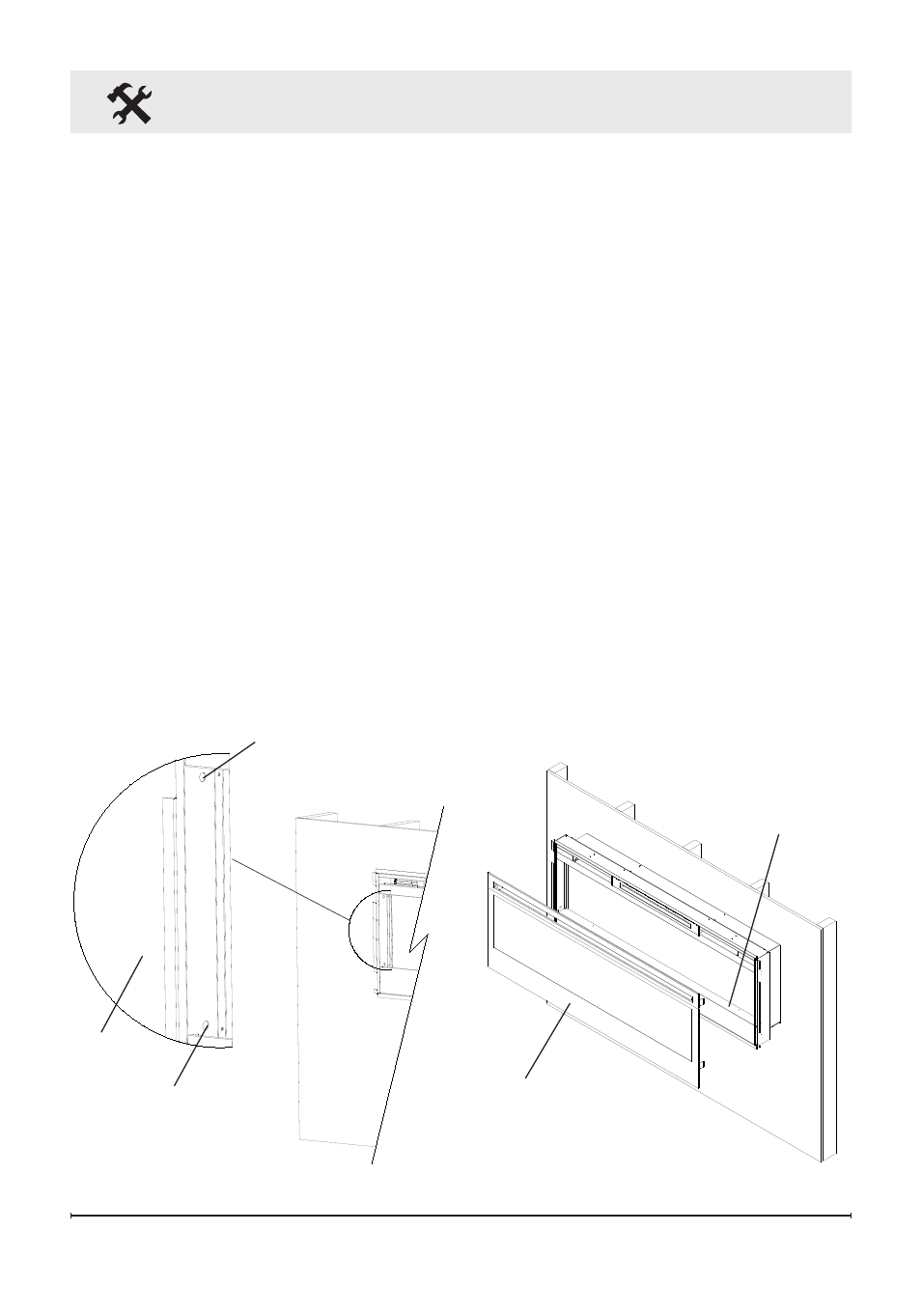

Figure 15

Front tray

Front glass

assembly

Figure 14

Mounting hole

Mounting hole

Wall

surface
