In-wall recessed installation - 2x4 framing, Fireplace installation – Dimplex BLF50 User Manual

Page 13

background image

13

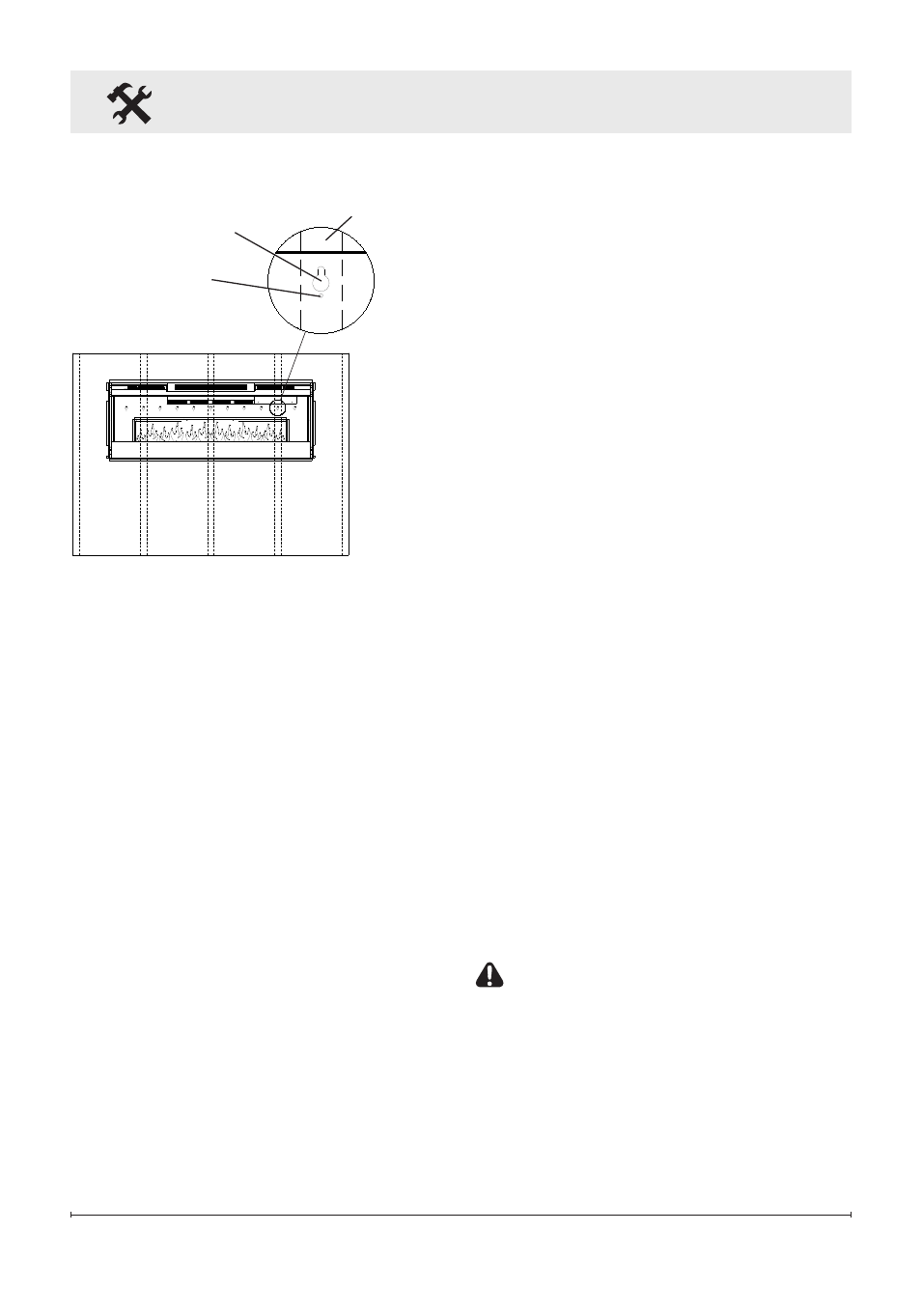

Figure 9

Key-hole

Wall stud

Permanent

mounting hole

the wall (through key-holes).
remove fireplace from wall

6.

and store in a safe place

away from traffic.
Where marked screw

7.

locations do not line up with

a wall stud, insert (screw in)

one (1) of the two (2) supplied

wall anchors (predrill if

required). repeat if only two

(2) screws line up with a wall

stud.
screw all four (4) supplied

8.

#8, 1½ inch (3.8 cm) square

head mounting screws and

washers into the wall and/or

wall anchors leaving ¼ inch

(6.5 mm) of thread.
Align chosen key-holes with

9.

screws and hang fireplace

Fireplace Installation

on the wall. screw heads

and washers will fit through

key-holes and fireplace will

slide down into place (screws

will slide into narrow part of

key-holes).
Tighten all four (4) mounting

10.

screws down on fireplace

chassis.
screw the two (2) supplied

11.

#8 square head screws

through two of the permanent

mounting holes which align

with a wall stud.
Carefully replace and install

12.

partially reflective glass and

glass brackets using screws

from step 1.
refer to Front Glass

13.

Installation section, page

16 for final installation

procedures.

In-wall Recessed

Installation - 2x4 Framing

CAUTION: Two people may

be required for various steps

of this procedure.

Prepare a wall with a framed

1.

opening of 46½" (118.1 cm)

wide x 16½" (42 cm) high

(Figure 10).
