Fireplace installation – Dimplex BLF50 User Manual
Page 10

10
www.dimplex.com
screw that attaches the
junction box cover to the
fireplace chassis (Figure 5)
from inside.
From the back of the
7.
fireplace, remove the
remaining three (3) Phillips
4).
Carefully remove the
4.
electrical box cover from the
fireplace as wires are fed
through the strain reliefs on
the cover and are connected
within.
unscrew the two (2) wire
5.
connectors inside the
electrical box and separate
the wires (Figure 5).
Remove the one (1) Phillips
6.

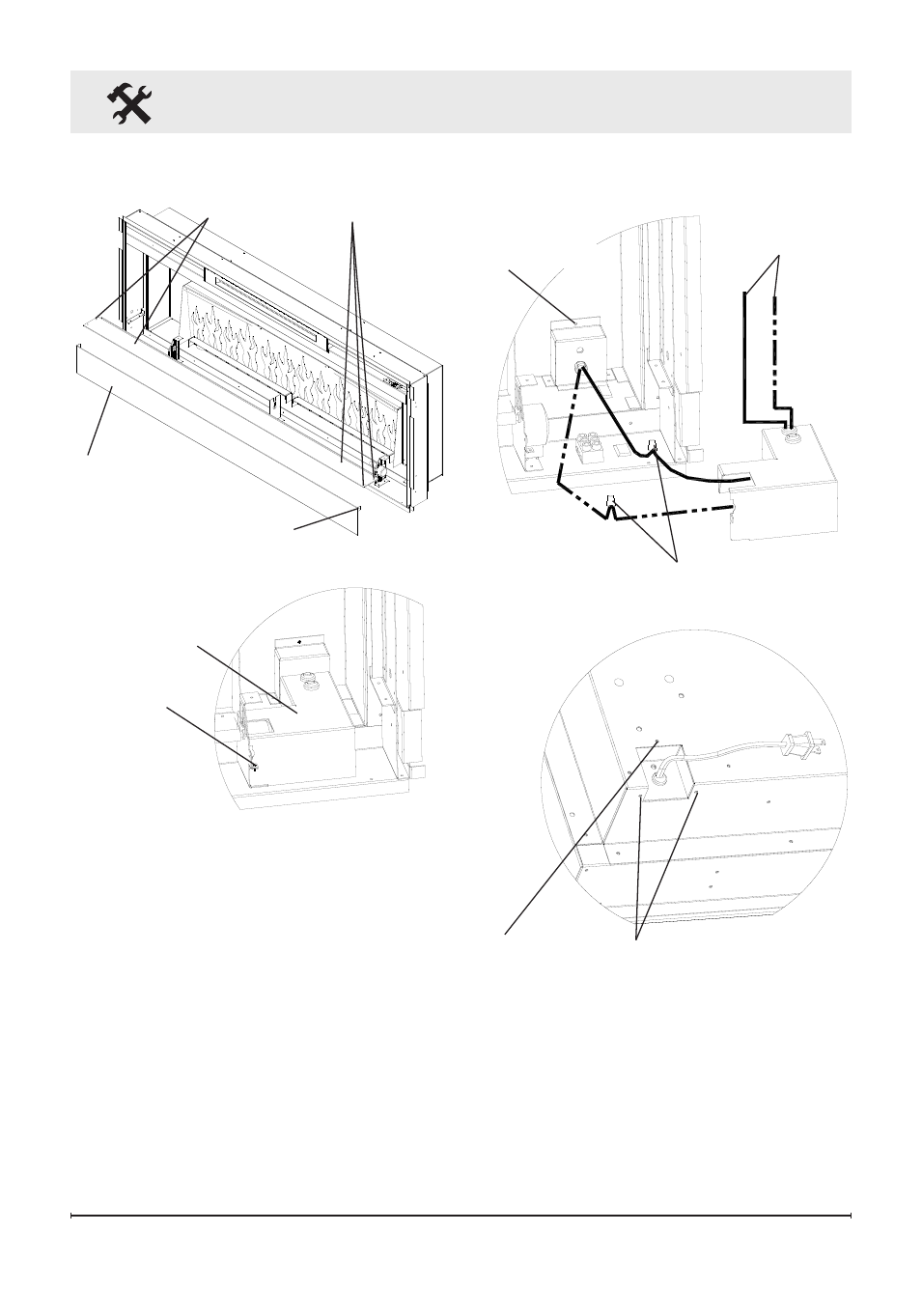

Fireplace Installation
Figure 5
Wires to
controls
Wire connectors
Junction
box screw
Figure 6
Junction box screws (3)
Figure 4
Electrical box
screw
Figure 3
Front Panel
Front Panel tabs (2)
media Tray screws (2)
