3

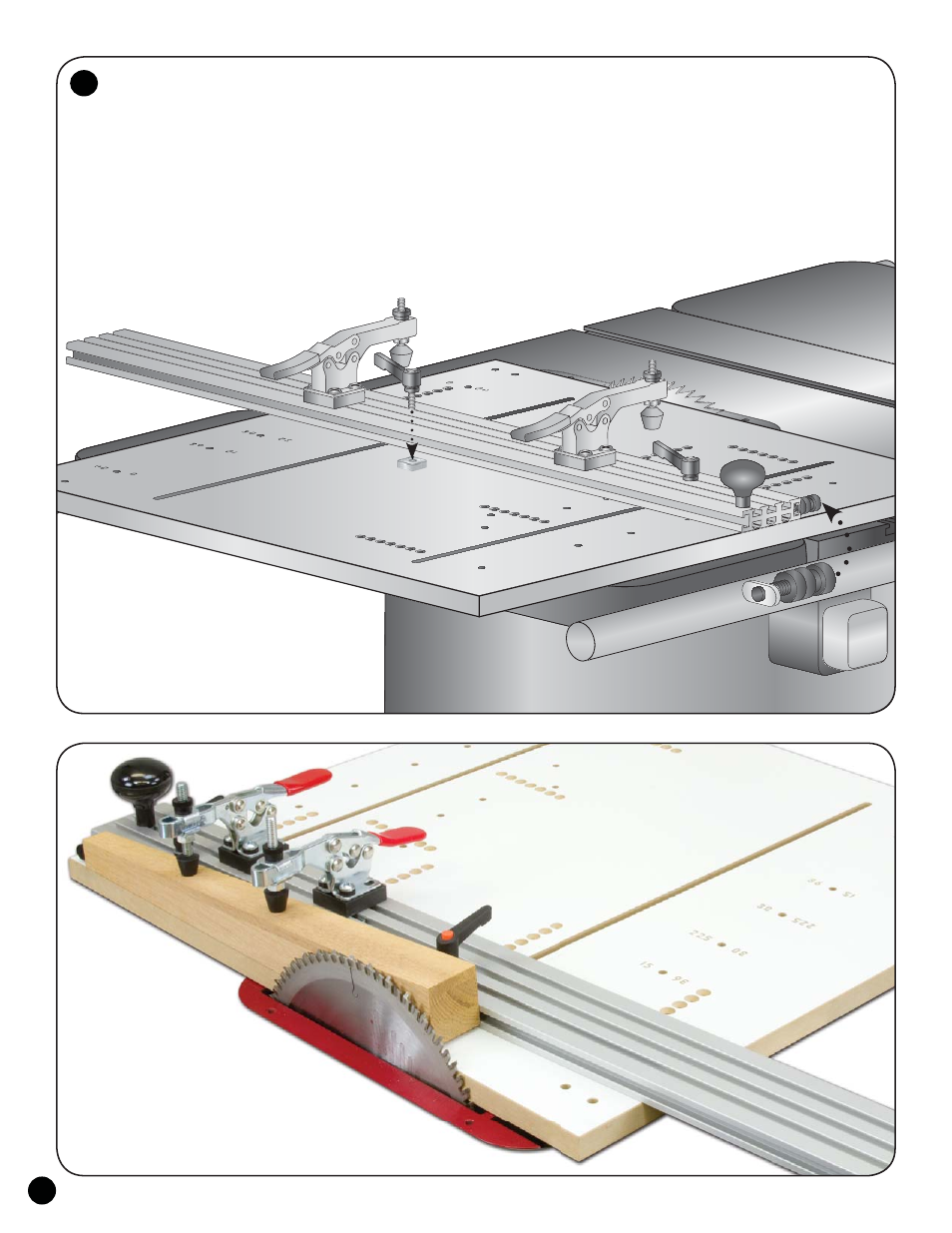

FENCE INSTALL FOR TAPERS
The horizontal fence configuration is normally used for tapers. Install a washer (WS002) and a 1/8"
spacer (BUSH001) on the ratchet handles (5864). Align the slots in the 32" Fence (4965A) with the slots in
the Sled Base. Insert the stud of the ratchet handle thru the slot of the Fence and the Sled Base. Place a square
nut (NUT025) in the recess in the underside of the Sled Base and screw the handle into the nut. See fig. 6
Insert a 1" bolt (HB030) in the desired T-slot in the Fence, then a 5/8" spacer (BUSH004) and a handle
(5590) on the end of the bolt. Position the handle where desired on the Fence and tighten. See fig. 6
Insert two 1/4" spacers (BUSH002) on a thumb screw (5505) and start an oval nut (5760B - raised
side first) on the end of the thumb screw. Slide it on to the T-slot on the edge of the fence, position it
near the end of the fence for now and tighten. This will serve as a work Stop. See fig. 6 inset
Assemble the two Inboard Clamps (6305IC) according to the directions that come with
them and attach them to the front or center T-Slot of the Fence. See fig. 6
6
Fence Knobs x2:
5864
WS002
BUSH001
NUT025
Handle:
5590
BUSH004
HB030
Clamp
Assembly
4965B
Sled Base
4965A
Fence
Work Stop:
5505
BUSH002 x2
5760B
Taper Setup - Horizontal - Example 1:
