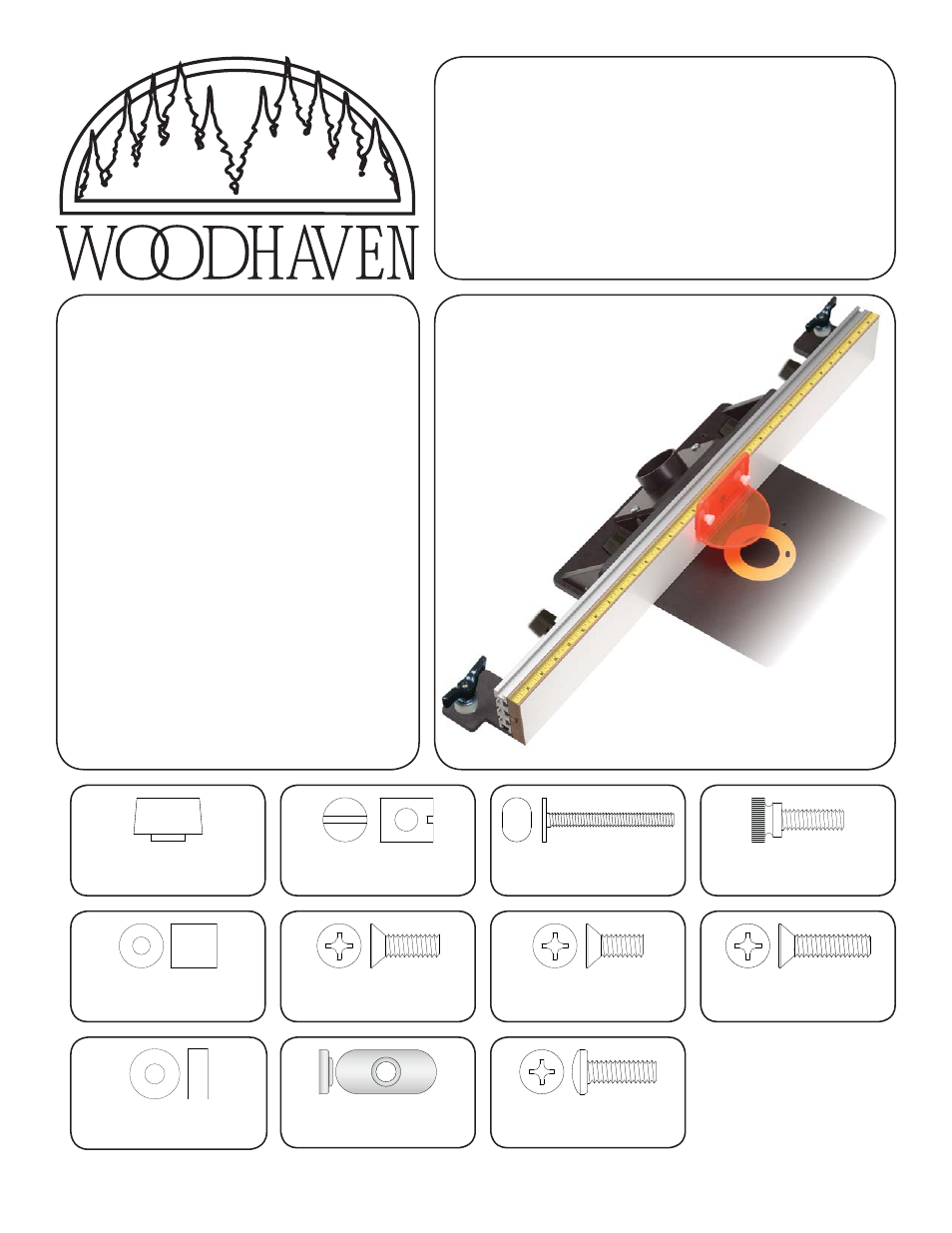

Woodhaven 204: Router Fence - Manual

204
Router Fence
Owners Manual
Please Read Carefully!
Parts List:
Please identify and verify that you have all of the
parts listed and shown on this page prior to assembly.
Parts listed in this box are shown in photos in the
instructions.
Part Description Quantity
204A 48” Aluminum Fence . . . . . . . . . . . . . . 1
204B 24” Fence faces, pair . . . . . . . . . . . . . . . 1
200C Fence Base, set of 2 pcs. . . . . . . . . . . . . 1
200E End Blocks . . . . . . . . . . . . . . . . . . . . . . . . 2
200D Dust Port Blocks . . . . . . . . . . . . . . . . . . 2
281 Dust Port . . . . . . . . . . . . . . . . . . . . . . . . . 1
200F Dust Port Plate . . . . . . . . . . . . . . . . . . . . 1
202G Guard Insert . . . . . . . . . . . . . . . . . . . . . . 1
3724RL Tapes, L & R . . . . . . . . . . . . . . . . . . . . . . . 1
224 Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
200FS Shims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
200SC Fence Clamps for 202 & 203, pr. . . . . . 1
240 Hold-Down. . . . . . . . . . . . . . . . . . . . . . . . 1
242 Hold-In . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Part# Description Qty.
MF015 1”
Screw 1
Part# Description Qty.
MF006 5/8”
Screw 4
Part# Description Qty.
5793B Barrel
Nut 8
Part# Description Qty.
5771B 3/4"
Screw 2
Part# Description Qty.
5505 Thumb
Screw 2
Part# Description Qty.
5720 2-1/4"
T-Bolt 6
Part# Description Qty.
MF010 3/4"
Screw 6
Part# Description Qty.
5760B Oval
Nut 5
Part# Description Qty.
BUSH004 5/8” Spacer
4
Part# Description Qty.
BUSH002 1/4" Spacer
2
Part# Description Qty.
5540 Knob
6
202 Router Fence
shown
