4. AIR INLET ASSEMBLY, CONT’D

Attach the 3/8" hose previously connected to the

passenger’s side valve cover, to the 1/4"NPT x

3/8" hose x 90° fitting installed in a previous step.

Attach the 1" bypass outlet hose to the 90° plas-

tic fitting and secure the hose with a #16 hose

clamp.

Install the duct to the inlet of the supercharger

and secure in place with the clamps provided.

Locate and install a 4.0" x 2.0" long sleeve to the

inlet of duct 4FU012-010 and secure with two

#64 clamps. (See Fig. 4-e.)

Remove the Factory MAF sensor element from

the top portion of the air filter housing.

Install the element using the 4mm hardware pro-

vided to the supplied MAF tube. (See Figs. 4-f,

4-g.)

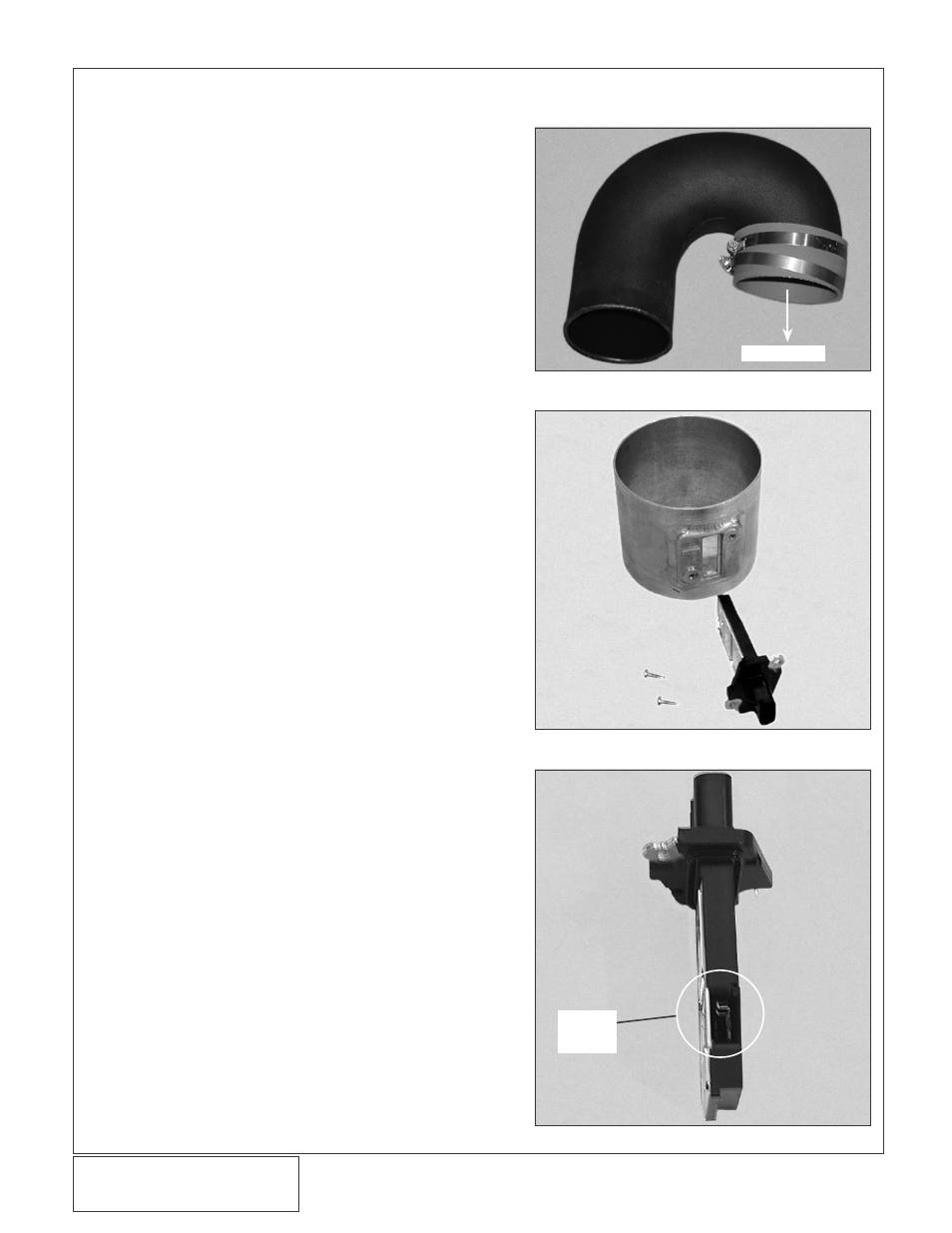

Fig. 4-e

Fig. 4-f

Fig. 4-g

TO MAF

FACING

AIR

FILTER
