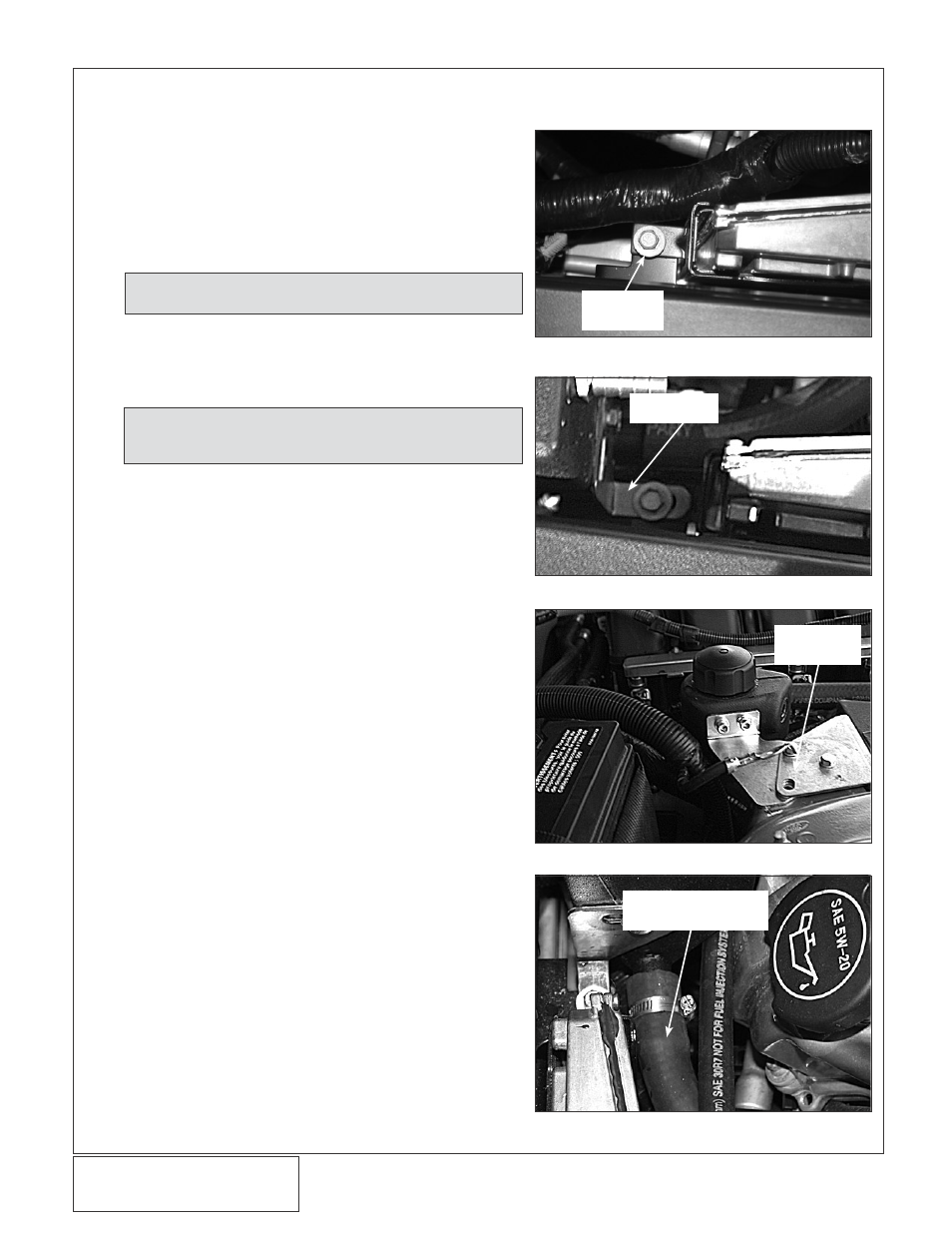

3C. ENGINE COOLANT RESERVOIR INSTALLATION (2005-2006 MODELS ONLY)

NOTE: Reinstall the factory ground wire with one of

the 6mm screws and washers.

Remove the 10mm headed bolt that secures the

back of the ECU and the power distribution box.

(See Fig. 3C-d.)

Install the coolant reservoir. Secure the front of

the reservoir with the factory fastener removed

previously. (See Fig.

3C-e.)

Attach the rear mounting bracket with the surge

tank mounting bracket to the strut tower with the

6mm x 20mm long screws and washer provided.

(See Fig. 3C-f.)

NOTE: Leave this bolt loose for final adjustment in a

later step.

Attach a length of 3/4" hose (approximately 3'

long) to the 3/4" bung on the front of the coolant

reservoir. Route the hose to the 3/4" outlet on the

thermostat housing secure the hose with the

clamps provided. (See Fig. 3C-g.)
