3B. WATER COOLER ASSEMBLY INSTALLATION, CONT’D
NOTE: When installing the cooler, make sure that
the water ports are configured as shown in
Figs. 3B-a, 3B-q. For V-Power see 3B-r. The
“top cooler port” must be the highest point on
the cooler for proper air purging.
7. Attach the previously assembled water cooler to
the bolts and spacers and secure with the 8mm
nuts and washers provided. Tighten all cooler
hardware at this time. (See Fig. 3B-e.)
8. Attach the supplied short 90° hose (7U030-065) to
the top port on the CAC cooler as shown. (See
Fig. 3B-f.)
9. Install one of the supplied 3/4" hose unions into
the open end of the previously installed 90° hose
and secure. (See Figs. 3B-f, 3B-q.)

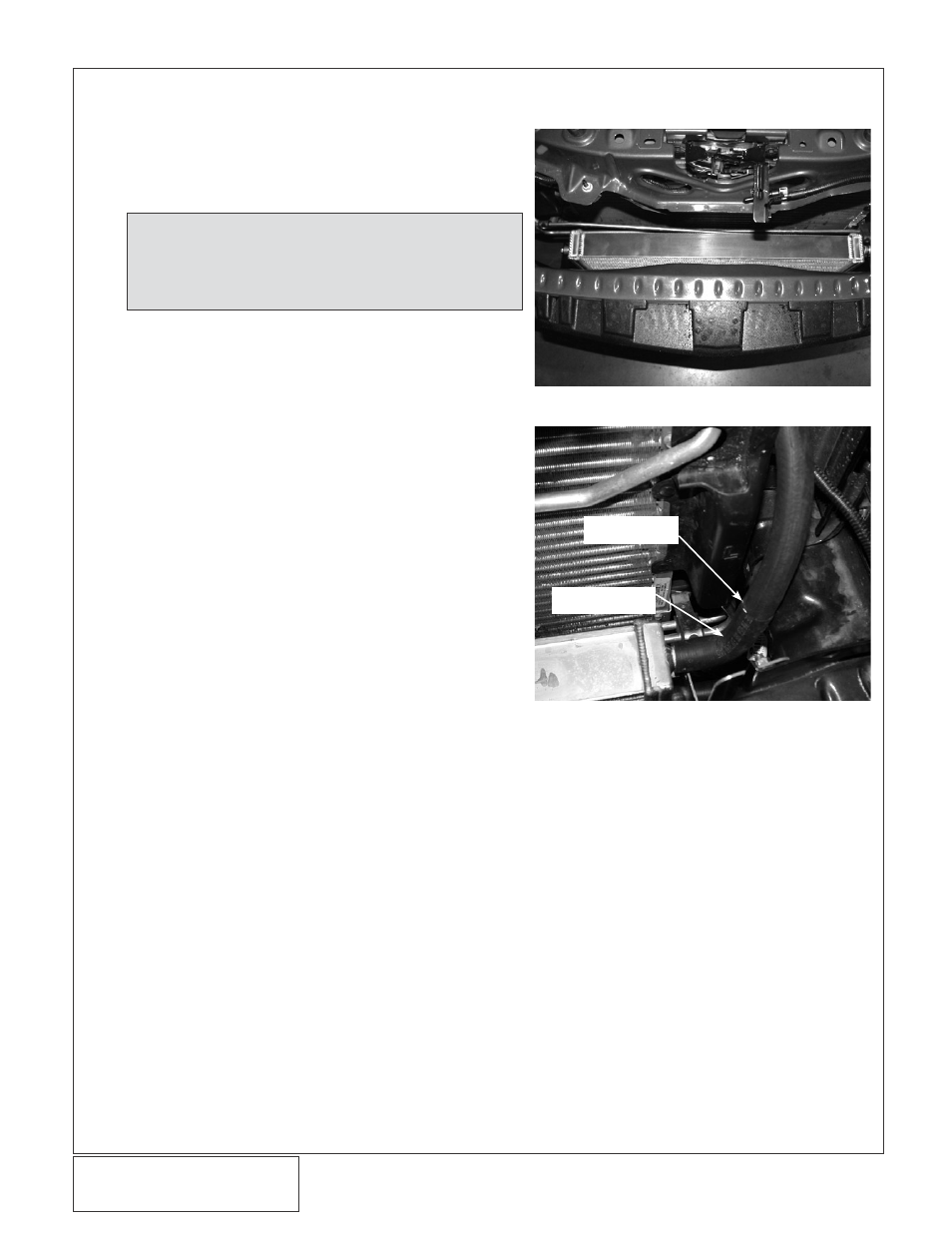

Fig. 3B-e
Fig. 3B-f
3/4" HOSE
UNION
SHORT 90°
ELBOW
