IMPORTANT!

To ensure trouble-free programming of your vehicle's computer:

• Make sure the vehicle's battery is sufficiently charged.

• Turn off all accessories and close doors to prevent unnecessary drain on the battery.

• Do not attempt to program your vehicle while a battery charger is connected.

• Improper battery voltage will result in failure of the programming process.

• Do not disconnect the cable or turn off the ignition during programming.

12. REFLASH COMPUTER

A. Reconnect the battery.

B. Locate the vehicles OBD2 connector located

below the dash on the driver’s side of the

vehicle.

C. Attach the OBD2 connector from the Flash

tool that is provided in the kit to the vehicle’s

OBD2 port. Make sure this connector is seat-

ed all the way in the vehicle’s OBD2 port. You

do not want this connector coming out during

programming or damage may occur to the

vehicle’s ECM.

D. The Reflash tool should power up and display

three parameters. (See Fig. 13-b)

1. Tune Vehicle

2. Scan Tool

3. Settings

Select “Tune Vehicle” by pressing the icon.

Read the disclaimer entirely, then select

agree and press ENTER.

G. At this point follow the instructions on the

screen displayed on the reflash tool. If you

have any questions, either refer to the manu-

al that is provided with the reflash tool or con-

tact our service department for further assis-

tance.

H. Turn the ignition on (do not start the vehicle).

Set the parking brake and press the ENTER

button to continue.

SELECT TUNE will be displayed at the top of

the screen. Select the appropriate tune for

your vehicle. You will have a choice of two to

choose from:

1. Vortech (used for installing kit)

2. Original Backup

Continue to follow the screen and when fin-

ished, unplug the reflash tool from the vehi-

cle’s OBD2 port.

NOTE:

Do not disturb the cable, or turn

the ignition off during this time.

If the programming is disrupted,

the computer will not start or

run your vehicle!

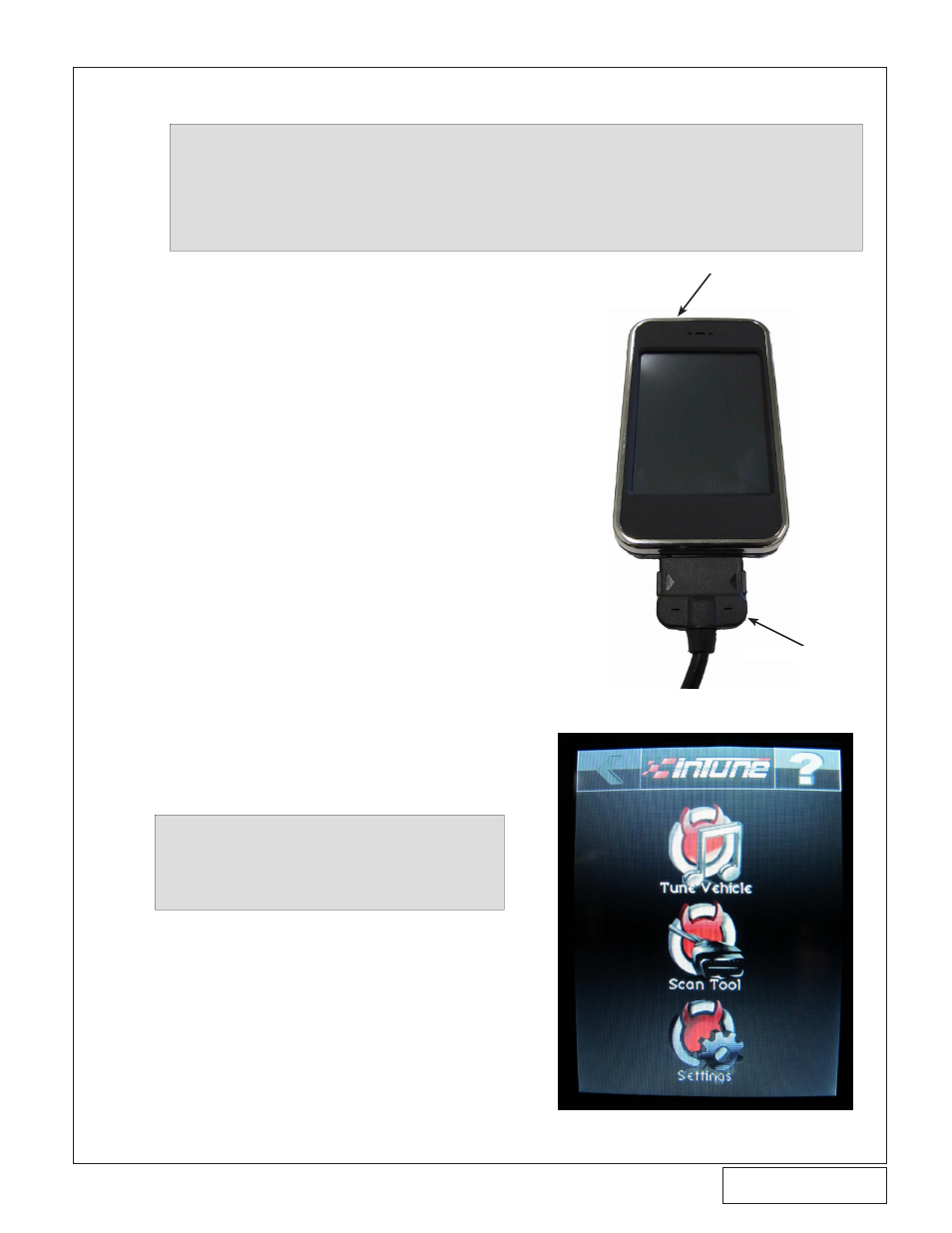

Fig. 13-a (inTune Programmer)

FLASH TOOL

OBD2 CABLE

Fig. 13-b (inTune Touchscreen Display)
