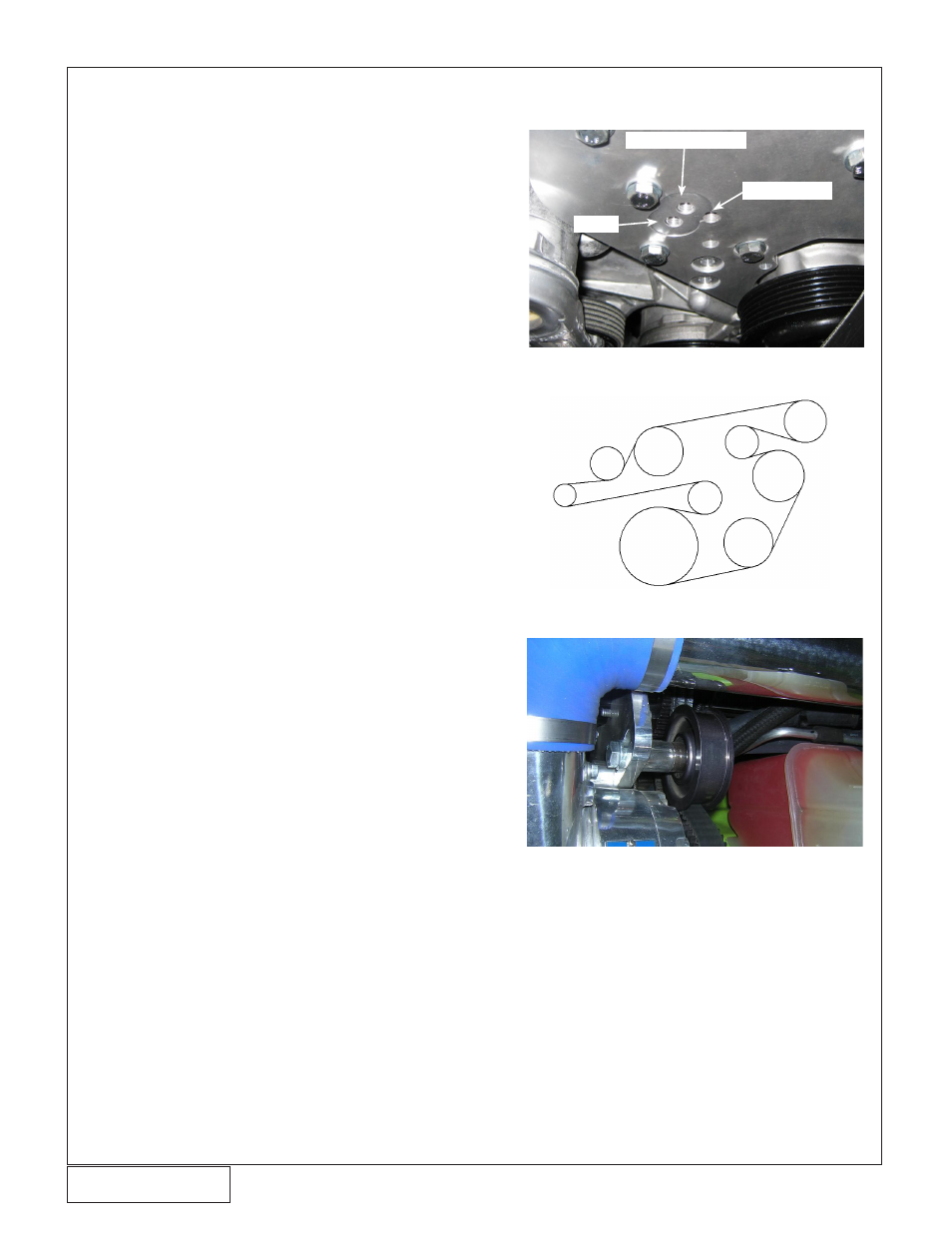

Page 22

P/N: 4CL020-015 v1.0, 12/02/2014

A. Install the supplied 3” aluminum idler using the

inner most 3/8-16 hole on the mounting plate

for the idler pulley. Make sure that the snap ring

side is facing forward (away from the mounting

plate). (See Fig. 6-a).

B. Install the supplied power steering pump pulley

on the already installed hub using the supplied

1/4” hardware.

C. Install the supplied accessory drive belt (as

shown in Fig. 6-b).

D. Position the supercharger in front of the mounting

plate assembly in front of the engine and install

and tighten the four 3/8” x 1 ¼” bolts.

E. Install the supplied cog belt around the pulleys

on the mounting plate assembly.

F. Using the supplied M12 x 100mm bolt, install

the supplied 3.5” aluminum idler with the bearing

retaining snap ring pointed towards the front of

the vehicle. The screw should pass through a flat

washer, S/C mounting plate, 1.55” idler spacer,

the idler, thick bearing washer, lock washer and

nut. Install the supplied nut and lock washer on

the end of the screw and tighten the idler so that

the gilmer belt is snug. (See Fig. 6-c).

G. Secure the remote drain hose away from the

belt and hoses using tie-wraps.

SUPERCHARGER INSTALLATION

Fig. 6-c

Fig. 6-a

Fig. 6-b

6.1L

2005-2008 5.7L

2009 5.7L
