Vortech 2009-2010 5.7L Hemi Cars (Charger, Challenger, 300C) User Manual

Page 20

P/N: 4CL020-015 v1.0, 12/02/2014

Steps E, F and G apply to 2009-2010 5.7L

Challenger M6 Only:

E. Remove power steering hose from pump to res-

ervoir. Cut hose as depicted in Fig. 5-e Set aside

the two longer pieces of hose and discard the

two shorter pieces. Replace the small bend with

a ¾ hose union and attach the 2 pieces of hose

together.

F. Install the hose so that the end with the single

bend attaches to the pump. Do not install clamps.

Mark union for correct clocking. Remove the hose

from the car and install stepless clamps at union.

(See Fig. 5-f)

G. Install hose assembly back into car using the

factory clamp to secure the hose to the reservoir

and a supplied hose clamp to attach the hose to

the power steering pump. (See Fig. 5-g)

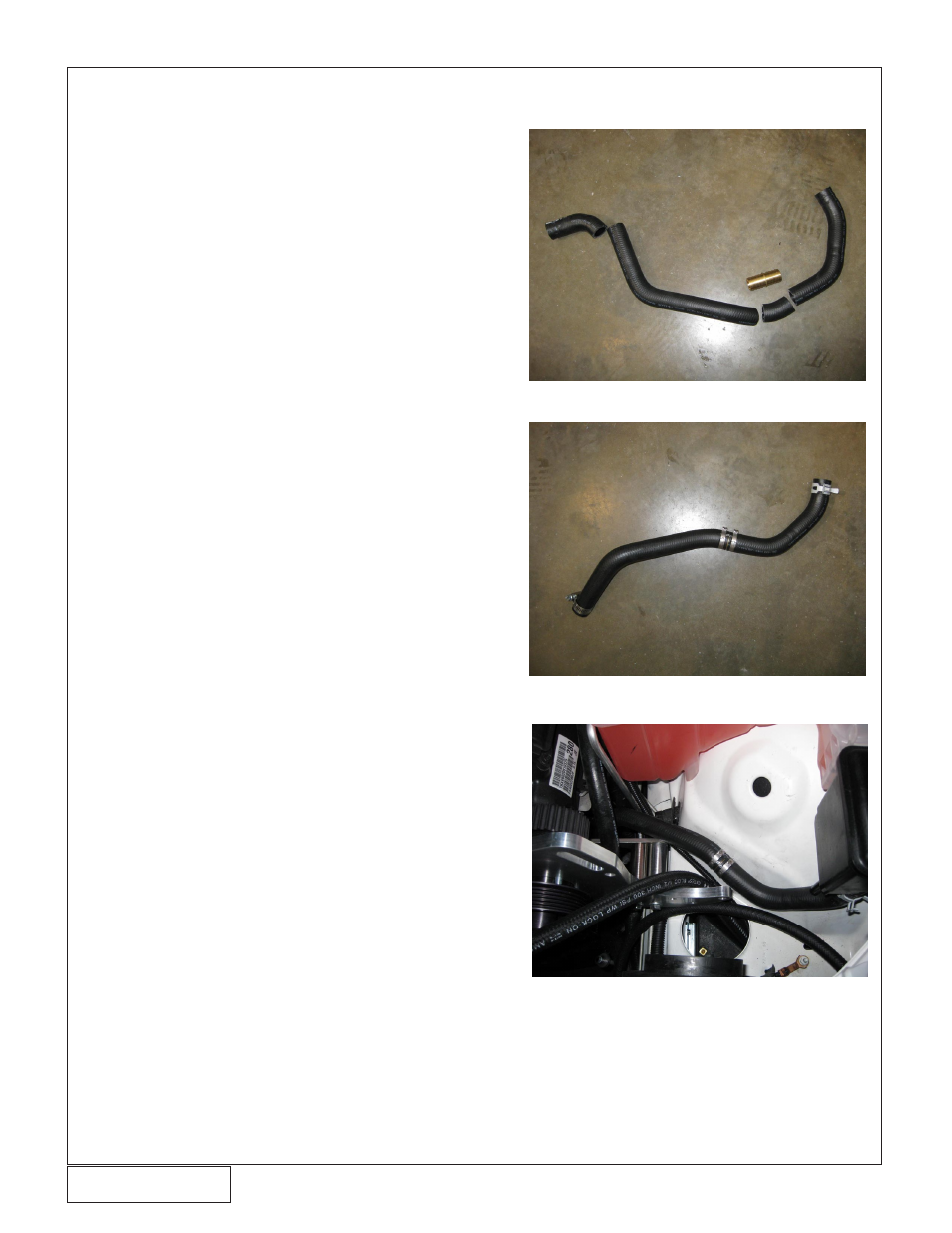

Fig. 5-e (2009-2010 5.7L

Charger/Challenger M6)

Fig. 5-f (2009-2010 5.7L

Charger/Challenger M6)

SUPERCHARGER MOUNTING PLATE INSTALLATION

Fig. 5-g (2009-2010 5.7L

Charger/Challenger M6)
