Axess elite user manual – SurgeX SX-AX20E User Manual

Page 34

Axess Elite

User Manual

Firmware Version v1.06.227

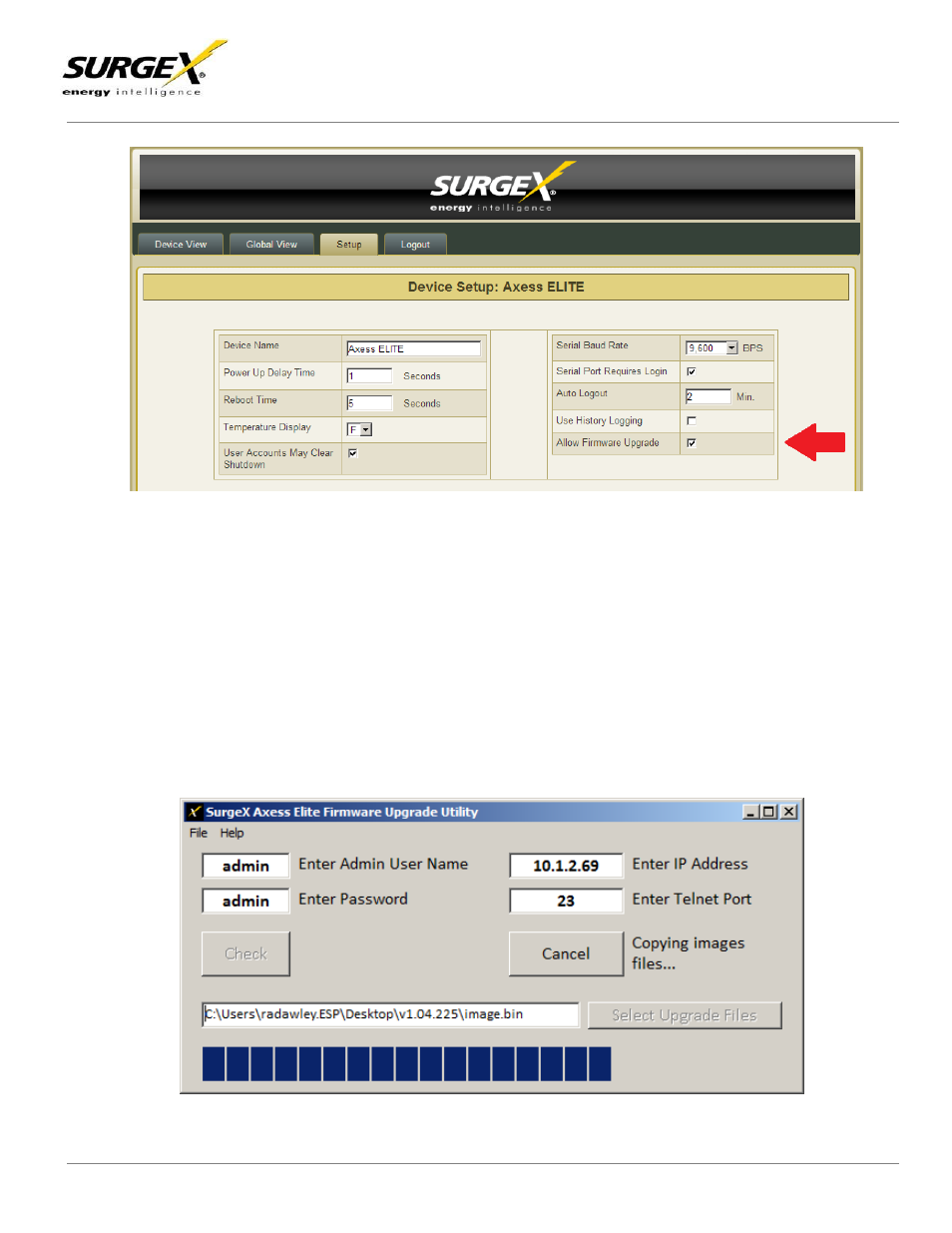

4. Start the Firmware Upgrade Utility, and enter the IP Address, Telnet Port, Admin User Name, and Admin

Password for the Axess Elite unit to be upgraded.

5. Click the “Select Upgrade Files” button, navigate to the location of the firmware files, select the image.bin file,

and click the “Open” button

6. Next, click the “Check” button, which will verify that the login credentials and IP address are correct, and that the

unit may be upgraded.

7. Finally, press the “Upgrade” button to begin the firmware upgrade process. After the upgrade has completed, the

unit will reboot 1-2 times while applying the new firmware image. This process may take 30 seconds or more to

complete. During this time, DO NOT unplug the unit.
