Axess Elite User Manual
Firmware Version v1.06.227

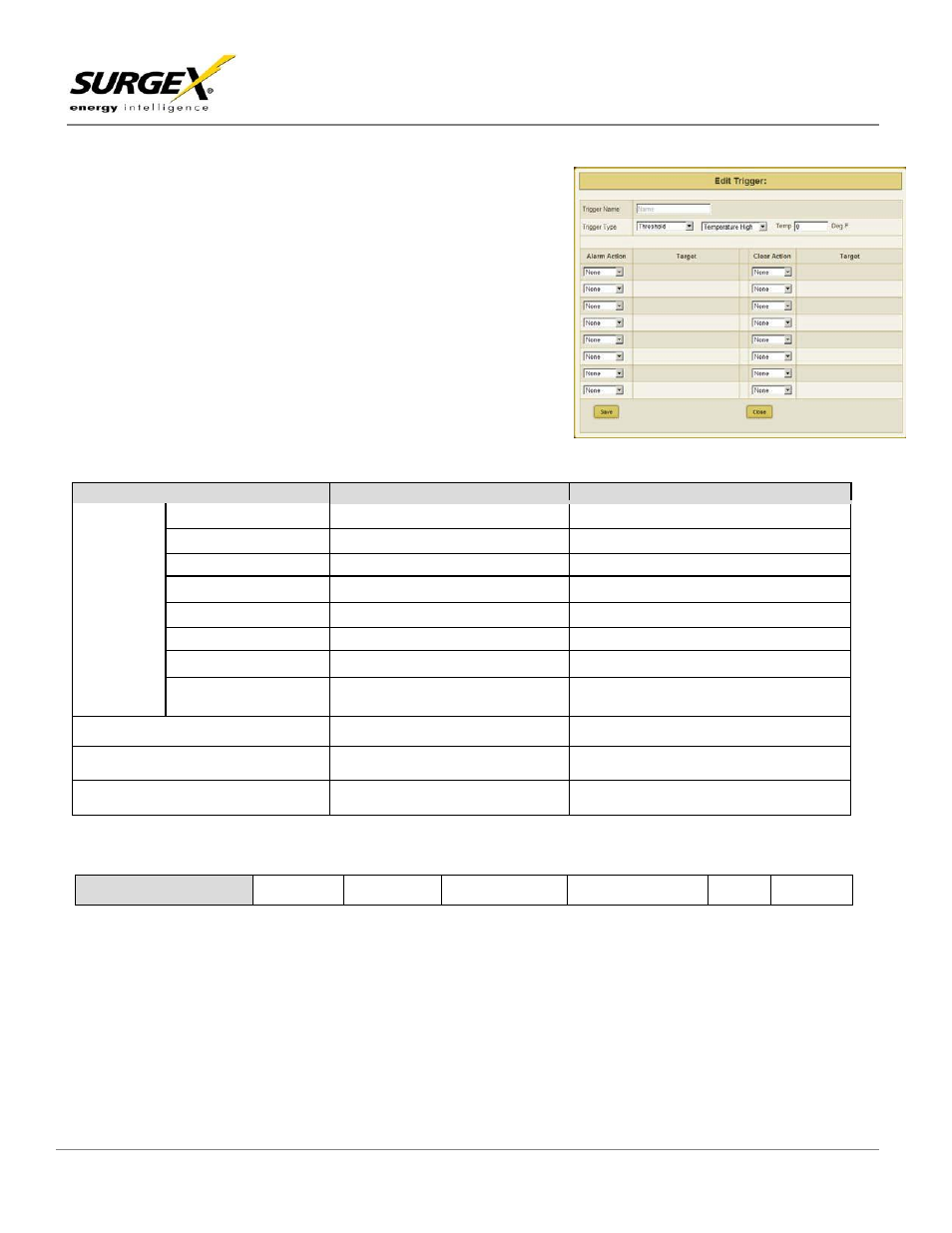

5.5.6 User Defined Triggers
User defined triggers that have previously been
created are displayed in a list. The name of the
trigger is the name that was given to the trigger
when it was created. Pressing “Test Alarm” will
activate the trigger alarm action, and pressing “Test
Clear” will activate the trigger clear action; use these
test functions to verify that the trigger will operate as
intended.
Pressing “Edit” will open the trigger for editing, and
pressing “Delete” will delete the trigger. New triggers
may be created by pressing the “New Trigger”
button
Type Trigger Executes When: Trigger Clears When:
Threshold
Temperature High Temperature > Set Point Temp < Set - Hysteresis
Temperature Low Temperature < Set Point Temp > Set + Hysteresis
Voltage High Voltage > Set Point Voltage < Set – Hysteresis
Voltage Low Voltage < Set Point Voltage > Set + Hysteresis
Line Current High Total Current > Set Point Current < Set – Hysteresis
Line Current Low Total Current < Set Point Current > Set + Hysteresis
Outlet Current High Outlet X Current > Set Point Current < Set – Hysteresis
Outlet Current Low Outlet X Current < Set Point Current > Set + Hysteresis
Net Test IP Address Ping Fails IP Address Ping Succeeds
Schedule Set Date and Time NA
Contact Closure Contact Closure Input Closes Contact Closure Input Opens
Alarm/Clear Actions Outlet On Outlet Off Outlet Reboot Run Sequence Email None
