Axess Elite

User Manual

Firmware Version v1.06.227

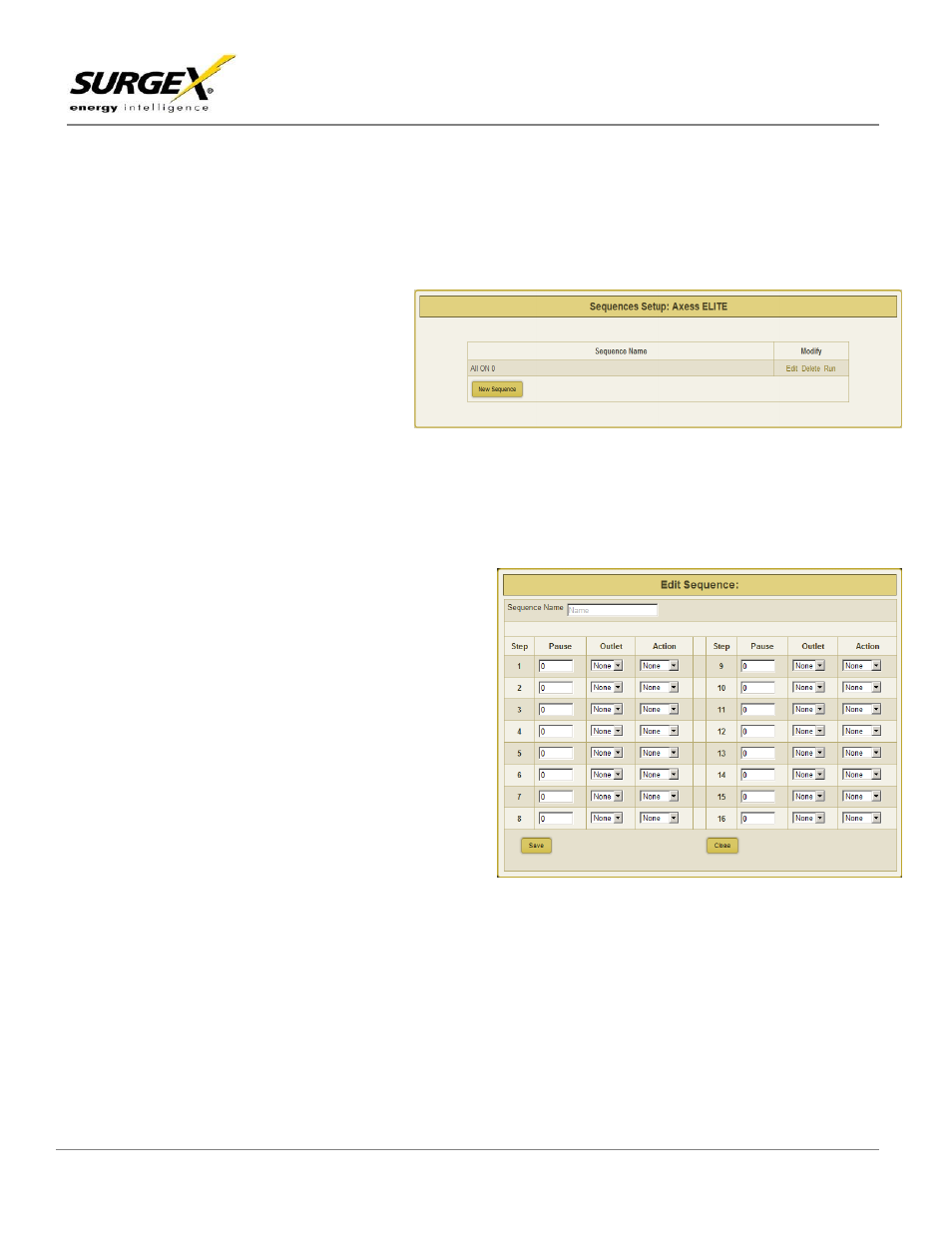

5.5.7 Sequences Setup

The Sequences Setup page allows for the creation and modification of sequences. A sequence is a list

of outlets, including Auxiliary Relays, that will be turned On, Off, or Rebooted in a predetermined way

with a specified delay time between each step. Using sequences avoids manually turning each outlet

on or off individually.

A sequence, as defined

for this product, is purely a

one-way sequence. That
is, you do not use the

same sequence to turn

outlets on as you use to

turn the same outlets off

in reverse order. One
sequence must be created for the turn-on function, and then a second sequence must be created for the

turn-off function.

To create a new sequence, press the “New Sequence” button. The new sequence must be given a
unique name. This name should clearly indicate what the sequence will do, such as “All On”, “All Off” or

“Stage Equipment On”. There may be up to 16 steps in a single sequence. Select the time delay from

the “Pause” column. Select the

outlet from the “Outlet” column.

Select whether the outlet is to turn
off, turn on, or reboot from the

“Action” column. Press the “Save”

button to save the sequence.

To run a sequence to test it, press

“Run”. To edit an existing sequence,

press “Edit”. To delete a sequence,

press “Delete”.

After a sequence has been saved, it

will be available at the bottom of the

Device View page, and when
creating or editing a User Trigger

when a sequence is selected as an action.

*Time delay is specified from the previous sequence item, not from the initial starting point. For example,
creating a sequence with “Step 1, 1 second, Outlet 1, On” and “Step 2, 1 second, Outlet

2, On” will turn on Outlet 1 after 1 second, and Outlet 2 on 1 second after Outlet 1 has turned on. This

sequence will not turn on both Outlets 1 and 2 at the same time.

19
