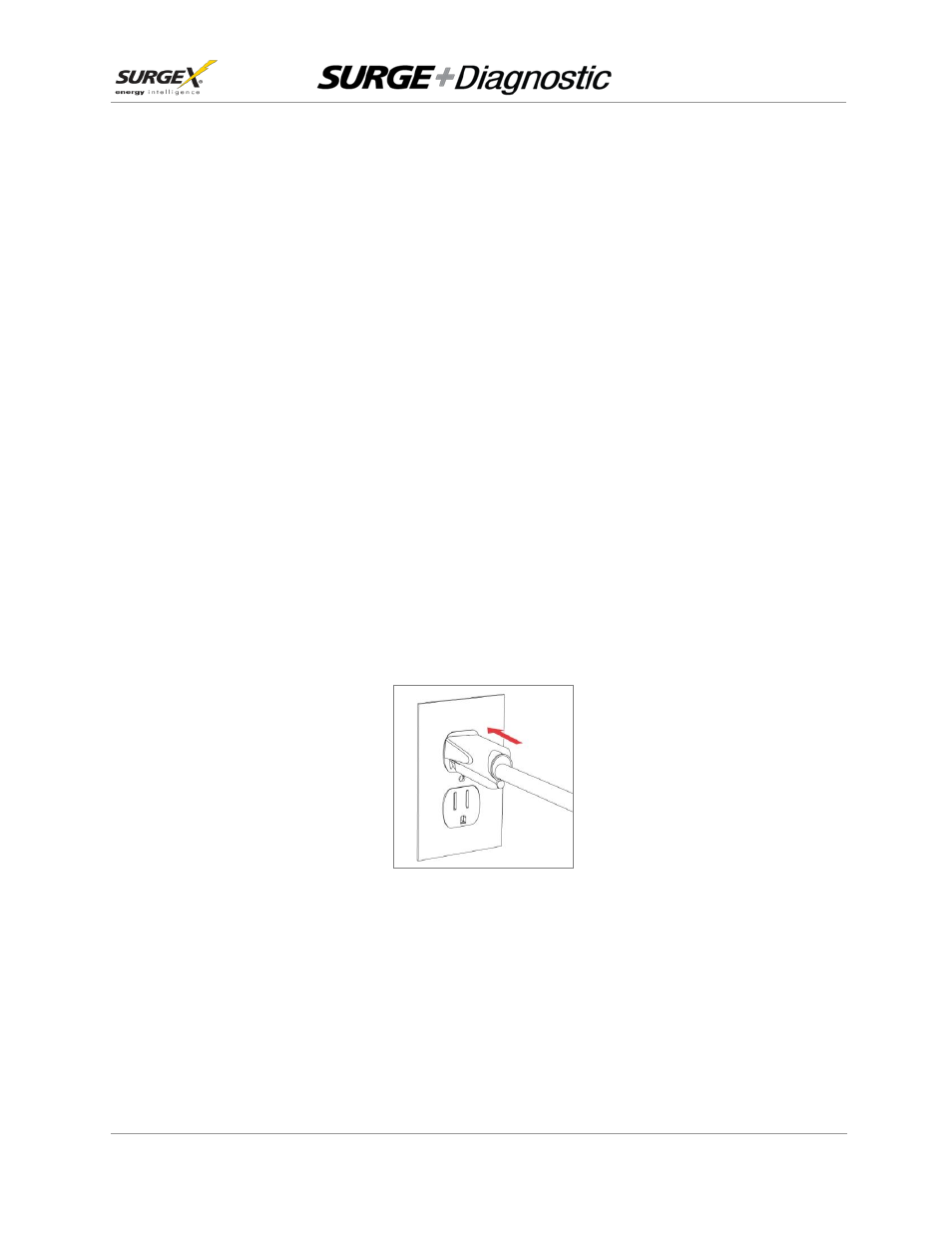

c. Connect Surge + Diagnostic to Outlet: Plug the input power cord into a properly grounded and

compatible branch circuit outlet.

Please Note: Do not plug the Filter into a re-locatable power tap.

i. If the branch circuit outlet is correctly wired and the magnitude of the line voltage is acceptable

(between 105 and 130 V

RMS

for 120V products, or between 190 and 250V

RMS

for 120/230V

products), power will be connected to the outlets of the Surge + Diagnostic

and the Green

“System On” LED will illuminate. Your equipment is now protected and installed correctly. You
may now turn all connected equipment back on.

ii. If the branch circuit outlet is incorrectly wired, the Red ‘Wiring Fault” LED will illuminate and the

LCD Event Monitor will display specific wiring fault information. If this occurs, contact a licensed
electrician to correct the outlet wiring. Refer to Section III: Hardware/LCD Event Monitor, for
display details.

iii. If neither “System On”, nor the “Wiring Fault” LED illuminates, there is either no voltage at the

receptacle or the magnitude of the line voltage is not acceptable (less than 105 V

RMS

or above

130 V

RMS

for 120V products, or less than 190 V

RMS

or above 250 V

RMS

for 208/230V products).

If the magnitude of the line voltage is not acceptable, specific information will be displayed on

the LCD Event Monitor. If this occurs, contact a licensed electrician to trouble-shoot the
abnormal voltage condition. Refer to Section III: Hardware/Surge + Diagnostic, for LCD Event
Monitor display details.

1. You may also need to verify that the Filter is operating properly.

To test, plug Surge + Diagnostic

into a known properly functioning outlet. If the

“System On” LED still does not illuminate in the functioning outlet, contact ESP at
1-800-645-9721.

CAUTION – Do not install this device if there
is not at least 10 meters (30 feet) or more of
wire between the electrical outlet and the
electrical service panel.

La PRUDENCE - n’installe pas cet artifice s’il
n’y a pas au moins 10 mèters (30pieds) ou
plus de fil entre l’issue èlectrique et le comitè
de service èlectrique.
