3.1.2.

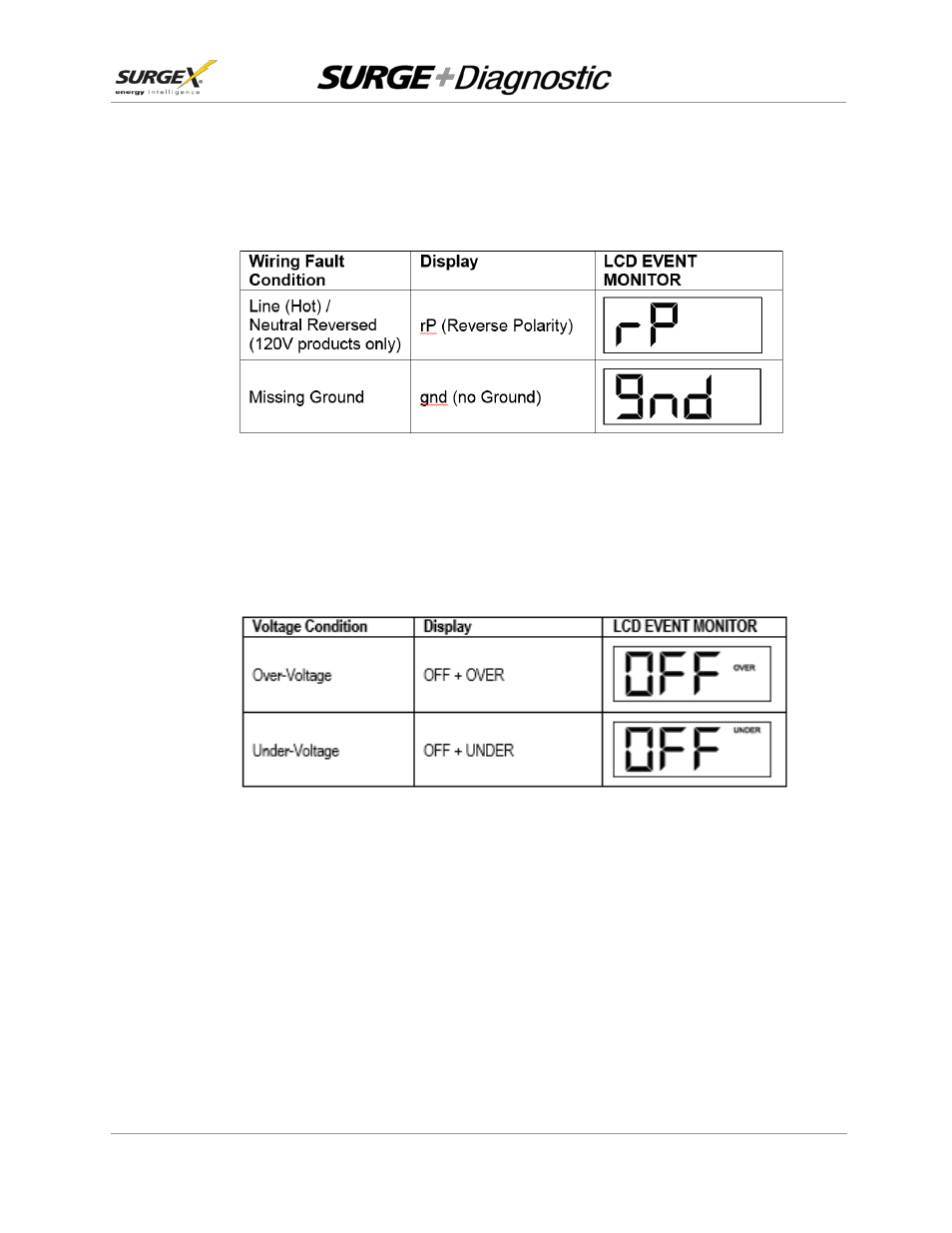

Wiring Fault
When connected to an incorrectly wired branch circuit outlet, in addition to the illumination of the Red LED,
the LCD Event Monitor will display the following information:
3.1.3. Abnormal Voltage
When the magnitude of the branch circuit outlet voltage is not acceptable*, the Surge +
Diagnostic
will disconnect power to its outlets and display the following information on the
LCD Event Monitor (*above the over-voltage shutdown threshold or below the under-
voltage shutdown threshold; refer to Section 4: Diagnostic Software for more information):
