3. HARDWARE
3.1 LCD Event Monitor
The LCD EVENT MONITOR displays useful information
related to data collection, device status, and
troubleshooting
.
3.1.1.
Normal Operation
a.

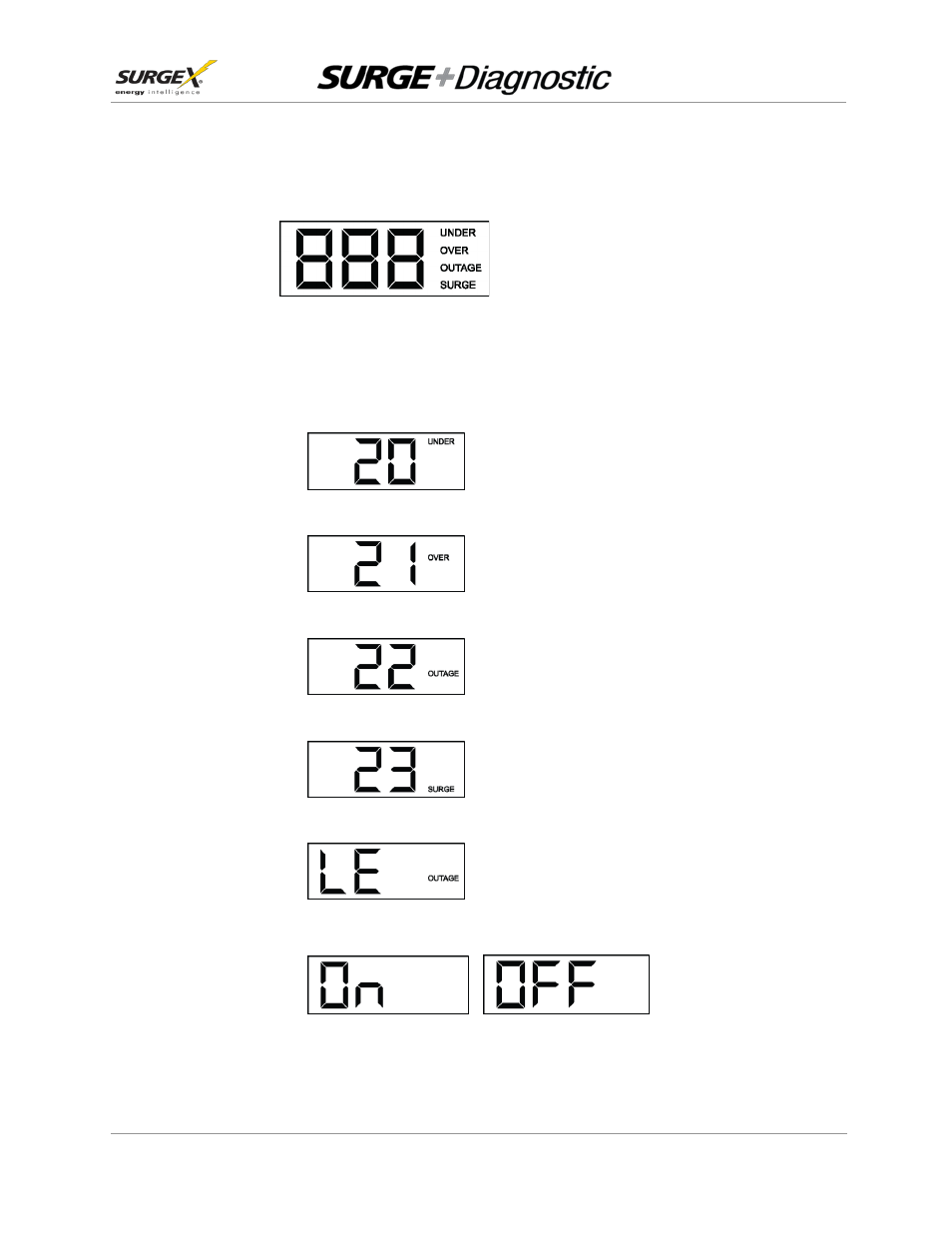

When the Surge + Diagnostic
is plugged into a branch circuit outlet with correct wiring and
acceptable line voltage, the LCD Event Monitor will cycle through the following information:
i.
Number of recorded Under-Voltage events:
vi.
Number of recorded Over-Voltage events
:
iii.
Number of recorded Power Outage events
:
iv.
Number of recorded Surge events
:
vi.
Last recorded Event type
:
vi.
Outlet Status (On or OFF):
