CM-1115(20)-RT-AR User Manual
Page 5
Width Depth Height Weight
CM-1115(20)-RT-AR 4.95" 9.50" 6.16" 9lb.

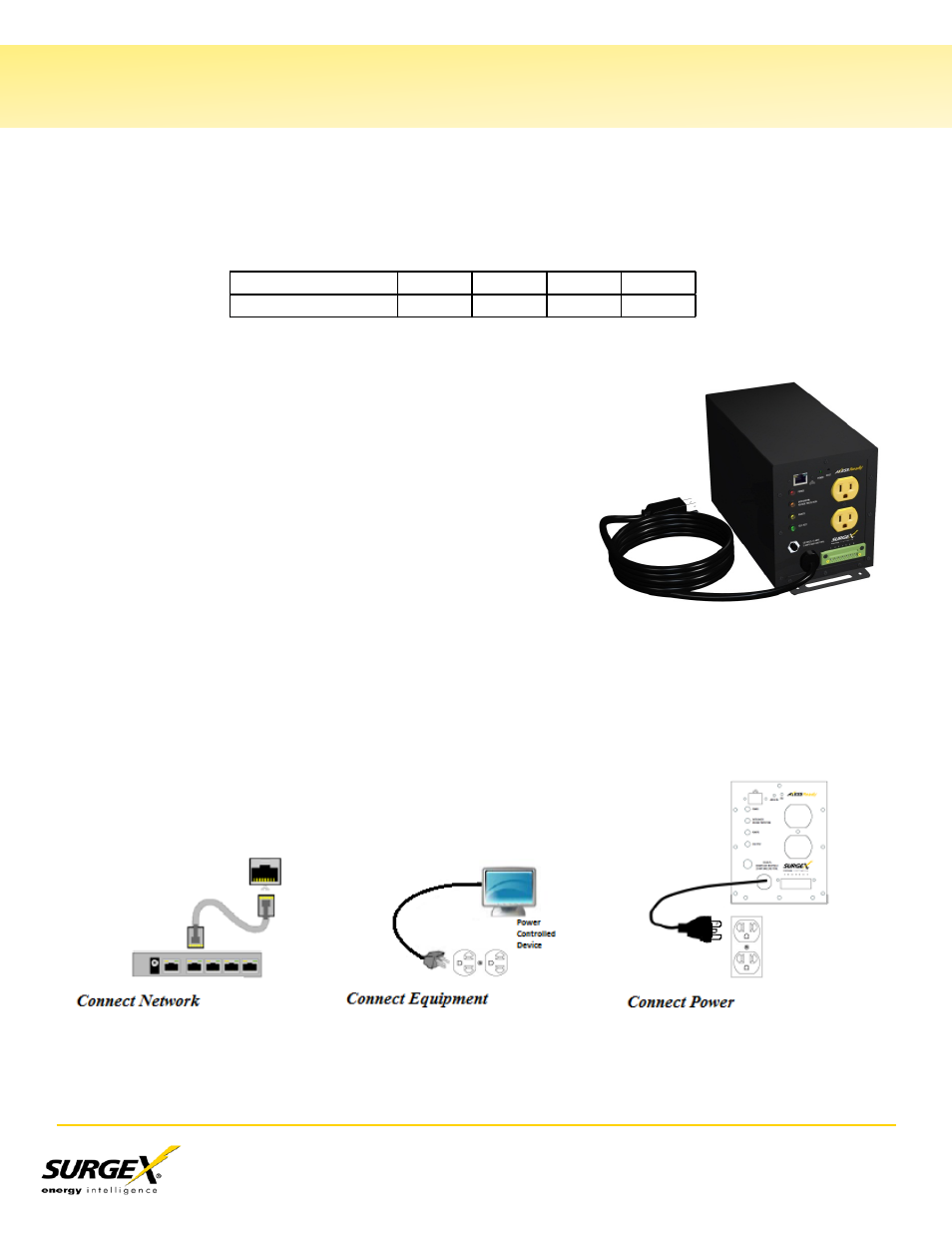

II. Installation
Physical
Compact Mount (CM) products are designed to rest on a flat surface or to be mounted onto a flat
surface, such as a wall. To mount the CM product, use six 6-32 Phillips pan head screws
(included) to attach the removable mounting brackets (included) to the sides of the product.
The base unit input power cord length is 9’.
Ethernet Connection
The RJ45 connector for 10/100 Ethernet is situated on the front
panel above the LED indicator array. The default IP Address is
192.168.1.254.
AC Power Connections
Connect the device(s) to be powered On and Off to the output
duplex receptacle.
Ensure that the total combined load of all controlled devices
does not exceed 15 (20) Amps (CM-1115-X-AR / CM-1120-X-AR).
Connect the attached power cord to a properly grounded 120VAC outlet. CM-1120-X-AR models
require a NEMA 5-20R outlet. Do not plug the unit into a re-locatable power tap.
