3 install the output module, 3 install the output module -6 – Spectrum Controls 1734sc-OE2CIH User Manual
Page 20
2-6
Chapter 2: Installation and Wiring
User’s Manual Pub. 0300272-01 Rev. A.0
2.4.3 Install the Output Module

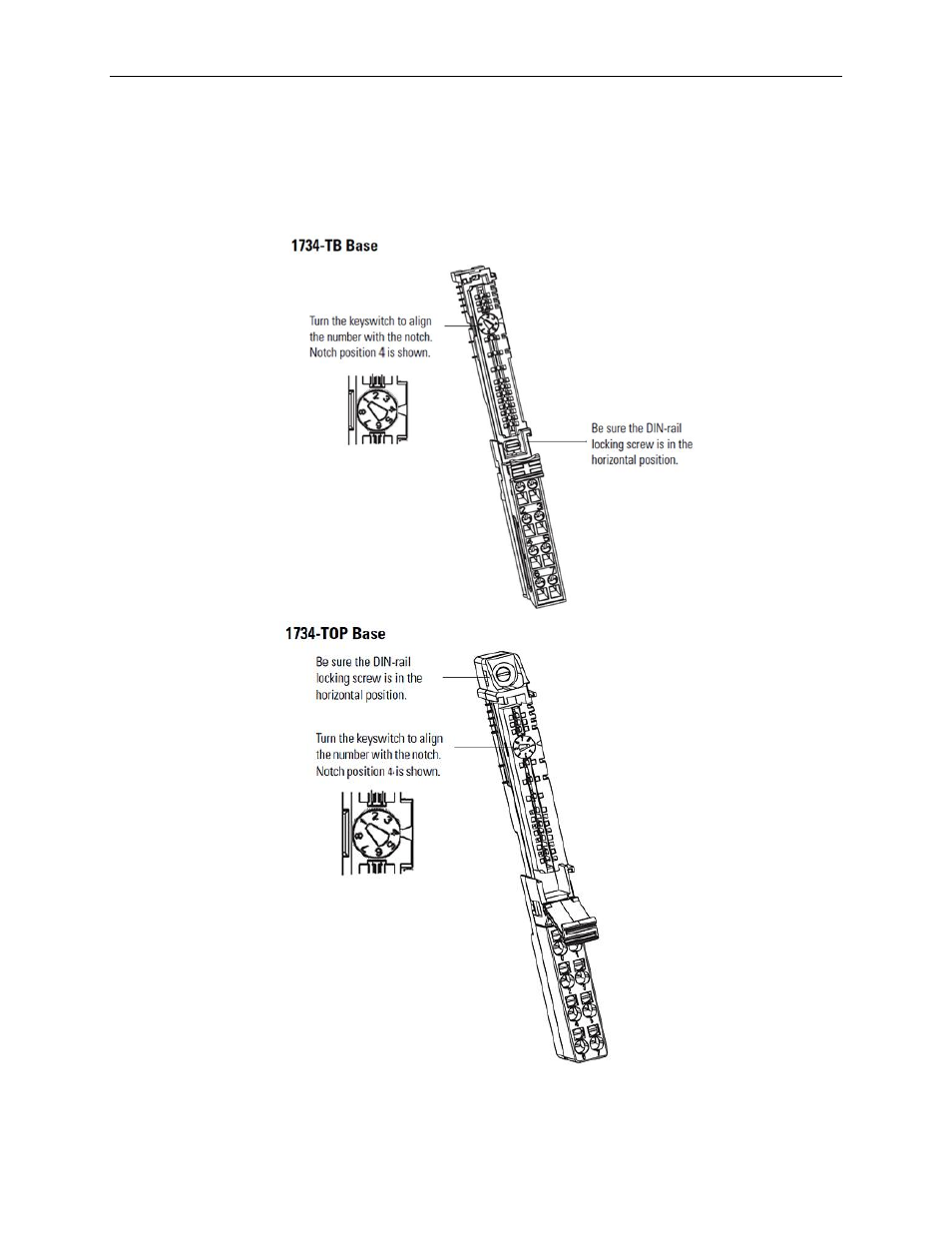

The module can be installed before, or after, base installation. Make sure that the
mounting base is correctly keyed before installing the module into the mounting base. In
addition, make sure the mounting base locking screw is positioned horizontal referenced
to the base.
