Rocktron Prophesy II - Manual (Page 56)

5 6

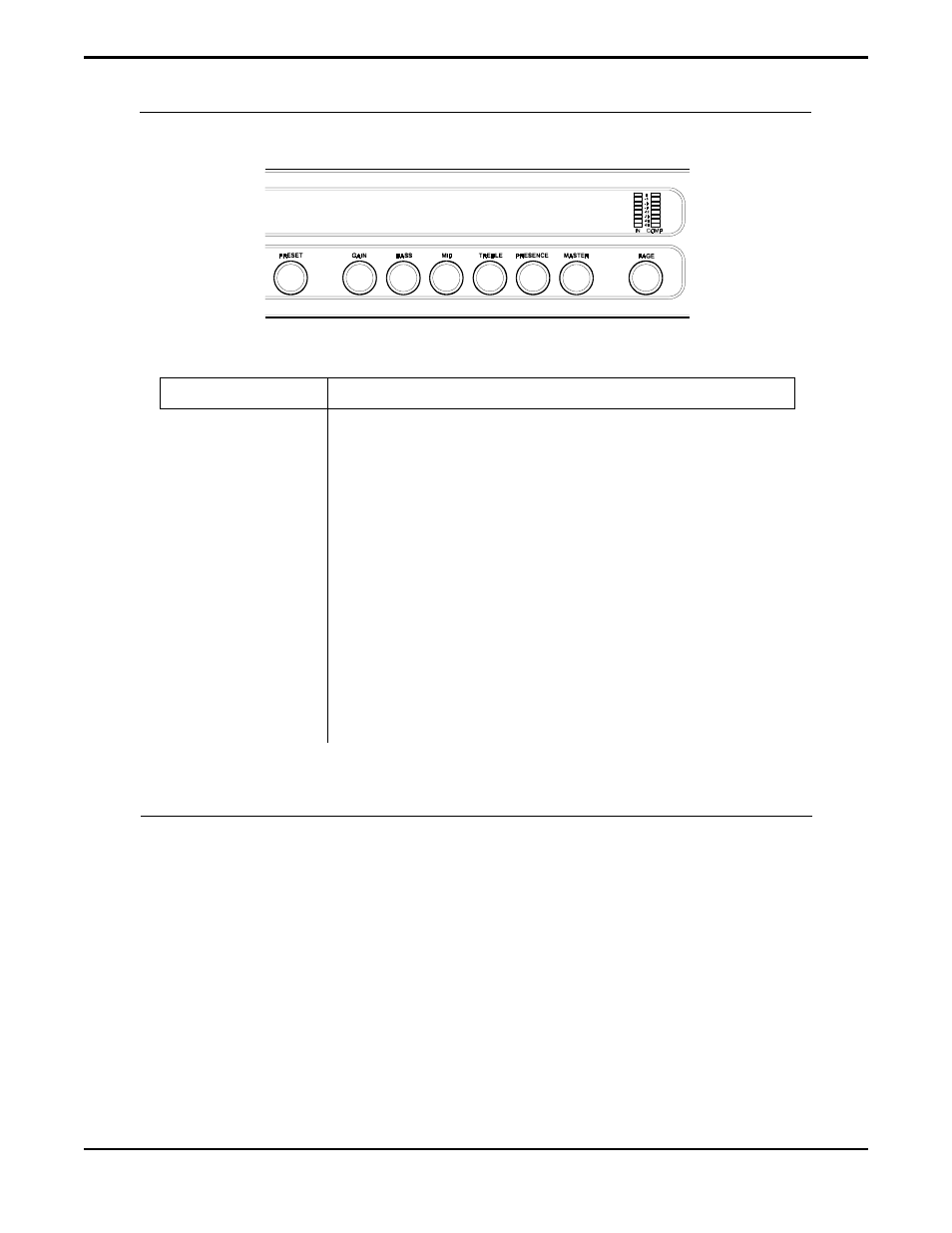

Mixer Page 5: Reverb Mix Levels
122 REV IN
62>E
REV OUT
- 5.5
DIR
- 1.0
DPAN
L<37
D
ESCRIPTION
The REVERB INPUT parameter determines how much of the signal applied
to the reverb section is direct signal, and how much is effect signal. (100%
Direct to 100% Effect)
The REVERB OUTPUT parameter determines the output level of the reverb
effect. (Off, -42.0 to +6.0)
The DIR parameter determines the overall output level of the direct signal.
(Off, -42.0 to +6.0)
The DPAN parameter is used to pan the direct signal to the left or right
Prophesy output. (100% Left to 100% Right)
The OUTPUT parameter determines whether the output of the Prophesy is
a stereo (left and right) signal or two mono signals.
The PRESET LEVEL parameter determines the overall output level of the
current preset relative to the other Prophesy presets.
P
ARAMETER
REV IN
REV OUT
DIR
DPAN
OUTPUT
PLEVEL
Mixer Page 5 parameters
OUTPUT
STEREO
PLEVEL
25
