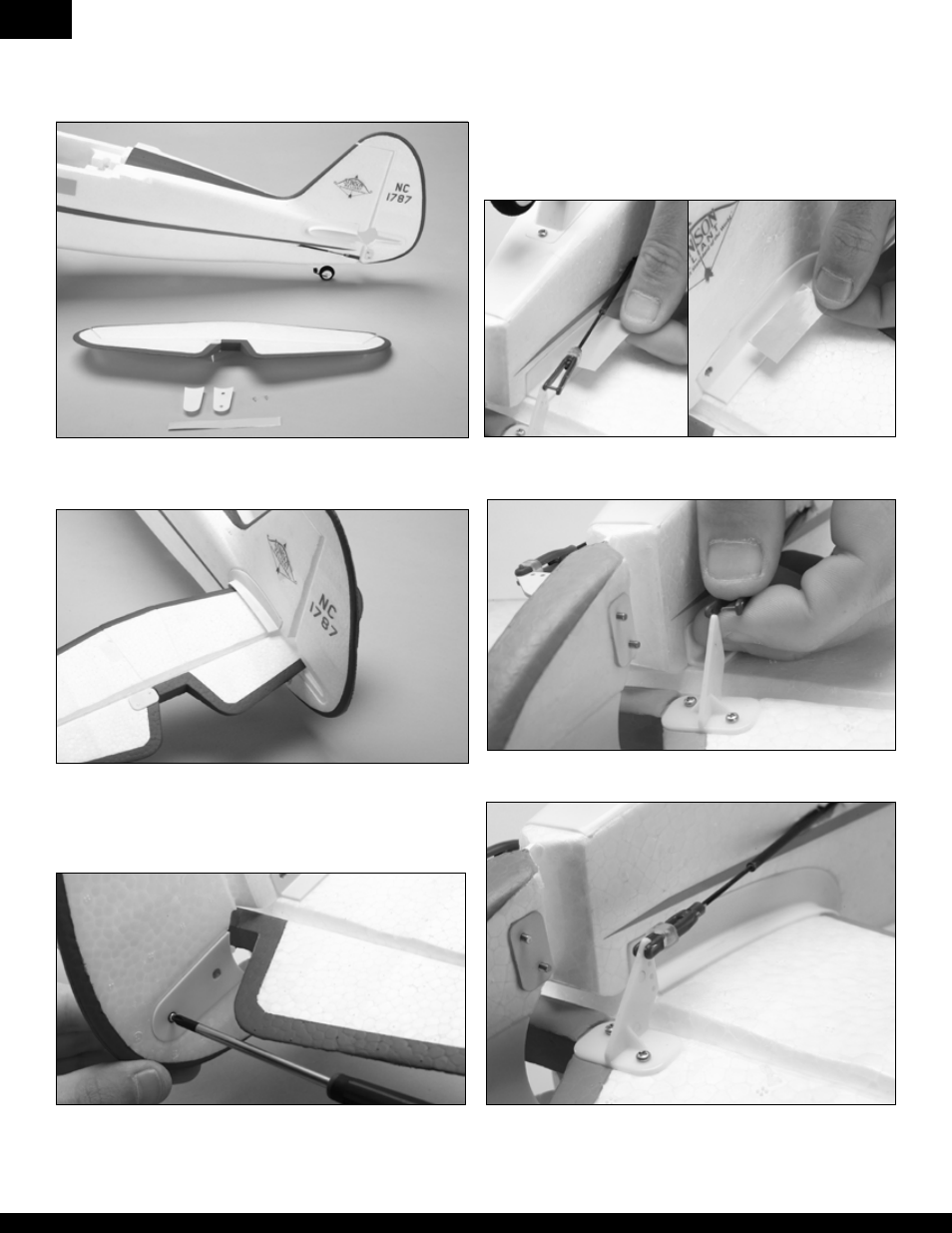

1. Install horizontal tail (the elevator control horn is on the
bottom of the left side of the horizontal tail) from the left side of
the fuselage through the hole in the rudder and fuselage.
2. Cover the rear portion of the hole in the rudder using left
and right cover plates and two (2) screws.
Note: You may need to lift the elevator to install the front
screw.
3. Apply four (4) pieces of tape to horizontal tail sections and
top and bottom of fuselage.
Note: Removing tape will remove paint from painted parts.
4. Install elevator clevis on outermost hole of control horn (on
horizontal tail, under left side).
5. Slide silicone band over clevis to keep the clevis on the
control horn.
Installing Horizontal Tail
Note: See page 6 for clevis adjustment and installation instructions.
