SETUP FOR SIMULATION

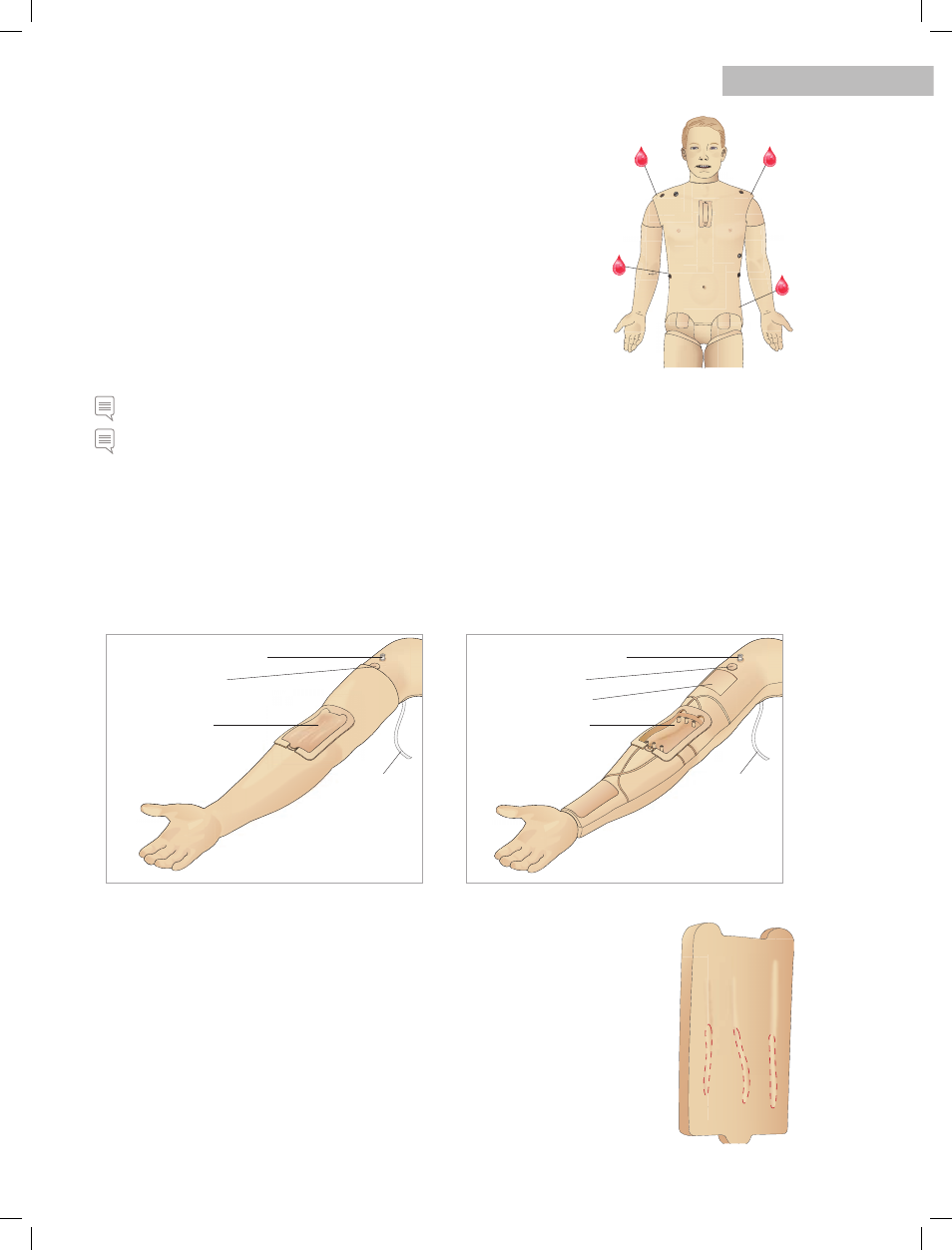

There are four blood ports with twist and lock connectors, as Illustrated on the right.
• Ensure the area to which the wound will be attached is clean and dry.
• Apply adhesive tape to the back side of the wound.
• Remove the protective liner from the adhesive tape on the wound and fix it in the desired
position on the skin.
ReMoving wounds
1 Flush all ports and tubes with 60% Isopropanol alcohol or 70% ethanol while the wounds
are still attached to the bleeding ports. Follow instructions for Cleaning the Blood System.
2 When the fluid runs clear, disconnect the wounds from ports.
3 Remove the wounds from the manikin skin and remove any tape residue with Laerdal
Manikin Wipes.
Note: When removing Wounds from the blood ports, cover the manikin skin with a cloth to prevent staining.
Note: Trauma modules can be purchased separately to replace default limbs to add realism to simulation.
The IV Arm
Follow these instructions when using the IV Arm for SimMan Essential and SimMan Essential Bleeding.
The manikin must be switched ON when performing the following.
iv aRM with skin
iv aRM without skin
Filling and Priming port
Priming switch
IV Arm Pad
Drain tube
Filling and Priming port
Priming switch
Tourniquet area
IV Arm chassis
Drain tube
the iv aRM pad
The IV Arm Pads have been tested and proven capable of multiple IV catheter insertions/retractions.
To maximize the life of the IV pad we suggest that you insert the IV catheter in the region highlighted
on pad.
