CHARGE INDICATOR
WHT/RED RED OR RED/BLK (+)
➃
SWITCHED OR
UNSWITCHED
LINE
WHITE COMMON
UNSWITCHED
LINE
ORG (277V)
BLK (120V)
CONNECTOR
BLUE
VIOLET
BLUE/WHT
RED/WHT
BRN/WHT
WHITE
BLACK
BLUE
BLUE
RED
RED
YELLOW
YELLOW
LAMP*
LAMP
LAMP
LAMP*
A.C.
BALLAST
VIO/WHT
BRN
RED
YELLOW
➁
➂
➂
➀
FOUR LAMP INSTANT START BALLAST
4LISB_232_D
EMERGENCY
BALLAST
OPERATES IN A.C. AND
EMERGENCY MODE.
SELECT PROPER VOLTAGE
LEAD. CAP UNUSED LEADS.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE
AND A.C. POWER IS SUPPLIED.
PIGTAIL LEADS TOGETHER.
TEST ACCESSORY LEADS - REFER
TO INSTALLATION INSTRUCTIONS
FOR PROPER POLARITY LEAD WIRING.
NO POLARITY ON BLK/ORG LEADS.
SWITCHED OR UNSWITCHED LINE-
REFER TO INSTALLATION MANUAL
FOR HOT AND TEST SWITCH PLACEMENT.
➁
➀
*
➂
➃
➄
➅
BLK/ORG
BLK/ORG
➄
➅
➄
CHARGE INDICATOR
WHT/RED RED OR RED/BLK (+)
SWITCHED OR
UNSWITCHED
LINE
WHITE COMMON
UNSWITCHED
LINE
ORG (277V)
BLK (120V)
CONNECTOR
BLUE
VIOLET
BLUE/WHT
RED/WHT
BRN/WHT
WHITE
BLACK
BLUE
BLUE
RED
LAMP*
LAMP*
A.C.
BALLAST
VIO/WHT
BRN
RED
YELLOW
➁
➂
➂
➀
TWO LAMP INSTANT START BALLAST
2LISB_232_D
EMERGENCY
B
ALLAST
➃
OPERATES IN A.C. AND
EMERGENCY MODE.
SELECT PROPER VOLTAGE
LEAD. CAP UNUSED LEADS.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE
AND A.C. POWER IS SUPPLIED.
PIGTAIL LEADS TOGETHER.
TEST ACCESSORY LEADS - REFER
TO INSTALLATION INSTRUCTIONS
FOR PROPER POLARITY LEAD WIRING.
NO POLARITY ON BLK/ORG LEADS.
SWITCHED OR UNSWITCHED LINE-
REFER TO INSTALLATION MANUAL
FOR HOT AND TEST SWITCH PLACEMENT.
➁
➀
*
➂
➃
➄
BLK/ORG
BLK/ORG
➄
➄
➅
➅
SWITCHED OR
UNSWITCHED
LINE
WHITE COMMON
UNSWITCHED
LINE
ORG (277V)
BLK (120V)
CONNECTOR
BLUE
BLUE/WHT
VIOLET
BRN
RED
RED
BLUE/WHT
BLUE/WHT
BLUE
BLUE
YELLOW
YELLOW
LAMP
LAMP*
LAMP*
A.C.
BALLAST
BRN/WHT
RED
RED/WHT
YELLOW
WHITE
BLACK
LAMP
LAMP*
LAMP*
A.C.
BALLAST
➁
➀
EMERGENCY
B
ALLAST
3LRSB_232_D
THREE LAMP RAPID START BALLAST
CHARGE INDICATOR
WHT/RED RED OR RED/BLK (+)
➂
OPERATES IN A.C. AND
EMERGENCY MODE.
SELECT PROPER VOLTAGE
LEAD. CAP UNUSED LEADS.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE
AND A.C. POWER IS SUPPLIED.
TEST ACCESSORY LEADS - REFER
TO INSTALLATION INSTRUCTIONS
FOR PROPER POLARITY LEAD WIRING.
NO POLARITY ON BLK/ORG LEADS.
SWITCHED OR UNSWITCHED LINE-
REFER TO INSTALLATION MANUAL
FOR HOT AND TEST SWITCH PLACEMENT.
➁
➀
*
➂
➃
➄
BLK/ORG
BLK/ORG
➃
➃ ➄
VIO/WHT
WHITE
COMMON
UNSWITCHED
LINE
ORG (277V)
BLK (120V)
CONNECTOR
BLUE
BLUE/WHT
VIOLET
VIO/WHT
BRN
WHITE
BLACK
BLUE
BLUE
RED
RED
YELLOW
YELLOW
LAMP*
LAMP*
A.C.
BALLAST
BRN/WHT
RED
RED/WHT
YELLOW
➁
➀
EMERGENCY
B
ALLAST
2LRSB_232_D
TWO LAMP RAPID START BALLAST
OPERATES IN A.C. AND
EMERGENCY MODE.
SELECT PROPER VOLTAGE
LEAD. CAP UNUSED LEADS.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE
AND A.C. POWER IS SUPPLIED.
TEST ACCESSORY LEADS - REFER
TO INSTALLATION INSTRUCTIONS
FOR PROPER POLARITY LEAD WIRING.
NO POLARITY ON BLK/ORG LEADS.
SWITCHED OR UNSWITCHED LINE-
REFER TO INSTALLATION MANUAL
FOR HOT AND TEST SWITCH PLACEMENT.
➁
➀
*
CHARGE INDICATOR
WHT/RED RED OR RED/BLK (+)
➂
➂
BLK/ORG
BLK/ORG
➃
➃
➃
➄
➄
SWITCHED OR
UNSWITCHED
LINE

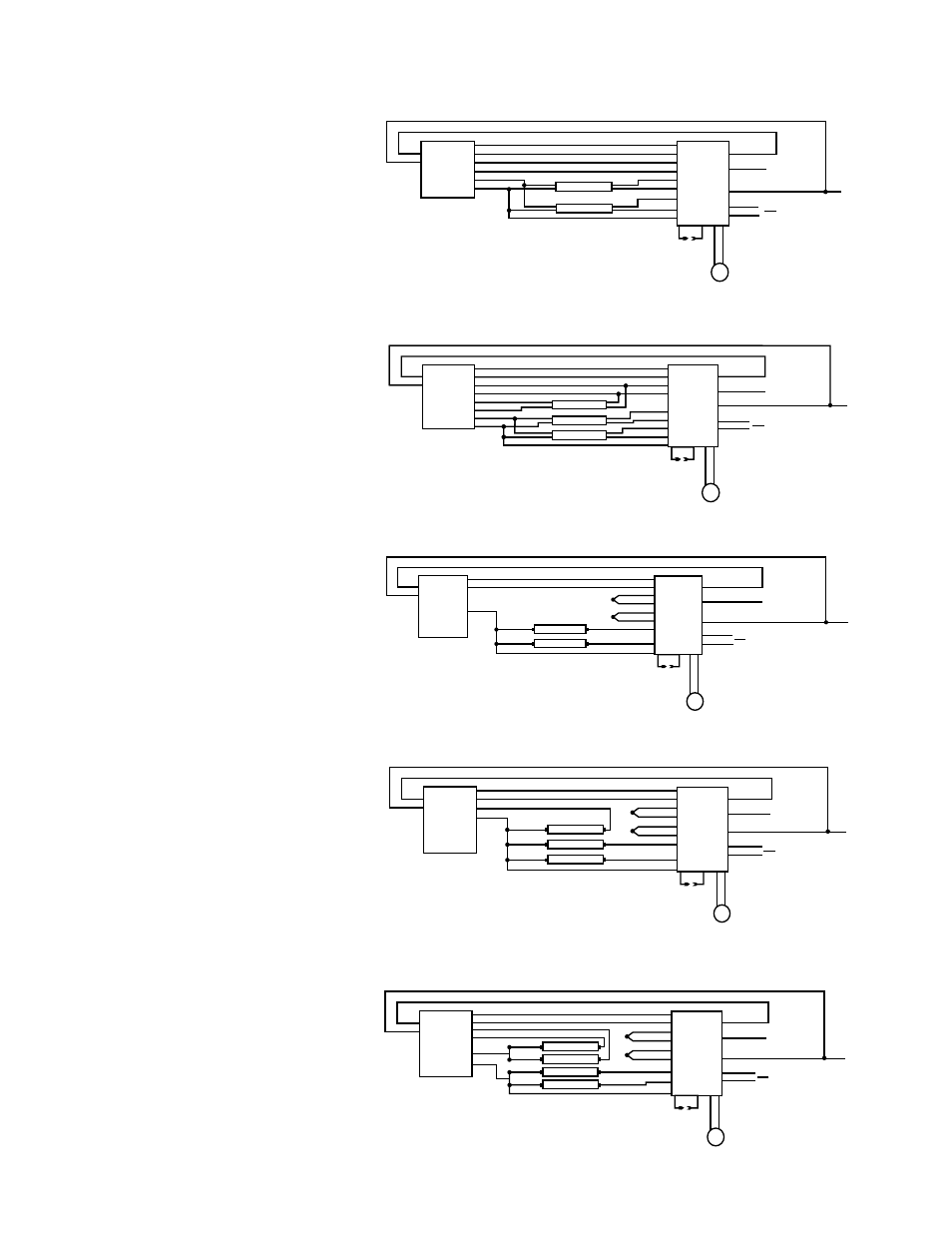

TYPICAL WIRING DIAGRAMS
For wiring diagrams of ballasts not shown, consult our Customer Service.
Rev. 071513
68232-012
CHARGE INDICATOR
WHT/RED RED OR RED/BLK (+)
➃
SWITCHED OR
UNSWITCHED
LINE
WHITE COMMON
UNSWITCHED
LINE
ORG (277V)
BLK (120V)
CONNECTOR
BLUE
VIOLET
BLUE/WHT
RED/WHT
BRN/WHT
WHITE
BLACK
BLUE
BLUE
BLUE
RED
LAMP*
LAMP
LAMP*
A.C.
BALLAST
VIO/WHT
BRN
RED
YELLOW
➁
➂
➂
➀
3LISB_232_D
EMERGENCY
B
ALLAST
THREE LAMP INSTANT START BALLAST
OPERATES IN A.C. AND
EMERGENCY MODE.
SELECT PROPER VOLTAGE
LEAD. CAP UNUSED LEADS.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE
AND A.C. POWER IS SUPPLIED.
PIGTAIL LEADS TOGETHER.
TEST ACCESSORY LEADS - REFER
TO INSTALLATION INSTRUCTIONS
FOR PROPER POLARITY LEAD WIRING.
NO POLARITY ON BLK/ORG LEADS.
SWITCHED OR UNSWITCHED LINE-
REFER TO INSTALLATION MANUAL
FOR HOT AND TEST SWITCH PLACEMENT.
➁
➀
*
➂
➃
➄
➅
BLK/ORG
BLK/ORG
➄
➄
➅
I-232
I-232
I-232
I-232
I-232
1. TWO LAMP
RAPID START BALLAST
* Operates in A.C. and emergency mode.

Select proper voltage lead. Cap unused lead
‚ Do not mate connector until installation
is complete and A.C. power is supplied.
ƒ
Test accessory leads - refer to installation
instructions for proper polarity wiring.
„
No polarity on BLK/ORG leads.
Switched or unswitched line - refer to installation
manual for hot and test switch placement
2. THREE LAMP
RAPID START BALLAST
* Operates in A.C. and emergency mode.

Select proper voltage lead. Cap unused lead
‚
Do not mate connector until installation
is complete and A.C. power is supplied.
ƒ
Test accessory leads - refer to installation
instructions for proper polarity wiring.
„ No polarity on BLK/ORG leads.
Switched or unswitched line - refer to installation
manual for hot and test switch placement
3. TWO LAMP
INSTANT START BALLAST
* Operates in A.C. and emergency mode.

Select proper voltage lead. Cap unused lead
‚
Do not mate connector until installation
is complete and A.C. power is supplied.
ƒ
Pigtail leads together
„
Test accessory leads - refer to installation
instructions for proper polarity wiring.
No polarity on BLK/ORG leads.
†
Switched or unswitched line - refer to installation
manual for hot and test switch placement
4. THREE LAMP
INSTANT START BALLAST
* Operates in A.C. and emergency mode.

Select proper voltage lead. Cap unused lead
‚
Do not mate connector until installation
is complete and A.C. power is supplied.
ƒ
Pigtail leads together
„
Test accessory leads - refer to installation
instructions for proper polarity wiring.
No polarity on BLK/ORG leads.
†
Switched or unswitched line - refer to installation
manual for hot and test switch placement
5. FOUR LAMP
INSTANT START BALLAST
* Operates in A.C. and emergency mode.

Select proper voltage lead. Cap unused lead
‚ Do not mate connector until installation
is complete and A.C. power is supplied.
ƒ Pigtail leads together
„
Test accessory leads - refer to installation
instructions for proper polarity wiring.
No polarity on BLK/ORG leads.
†
Switched or unswitched line - refer to installation
manual for hot and test switch placement
Wiring and Troubleshooting Tips are available on-line at http://www.iotaengineering.com/wiringtips.pdf
