4) Insert probe in location in charging station, as
shown in Fig. 12.19.
5) If permanent 12V power supply is not installed,
connect power supply, i.e. Power Supply (Part
No.14613) or 12V Vehicle Power Supply (Part
No.12988), to socket in LH side panel of Charging
Station as shown in Fig. 12.22.

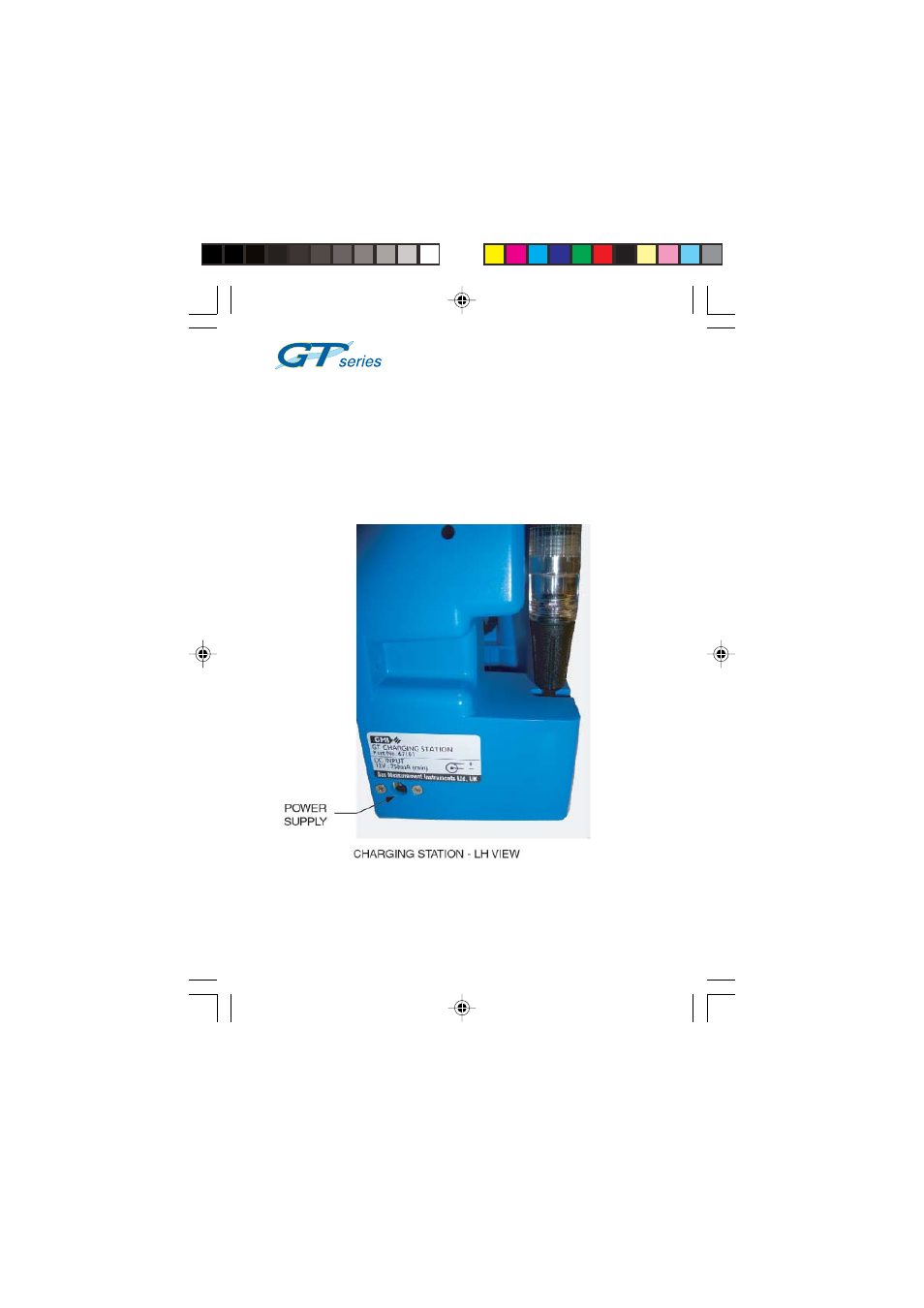

Fig. 12.22 Power Supply to Charging Station
