Glow-worm 56/3 Back Boiler - Manual (Page 13)

13 221724B
4 Installation

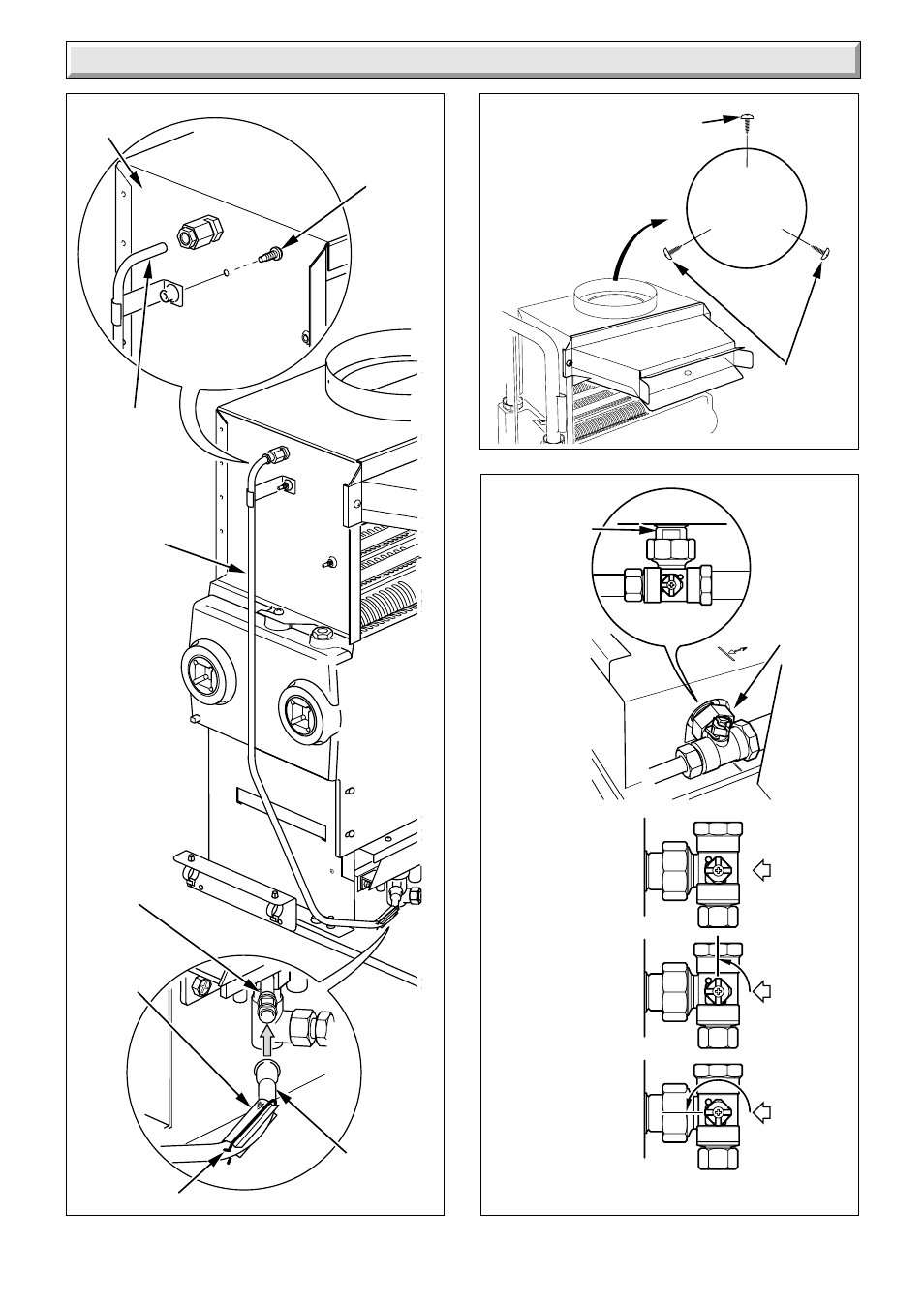

Diagram 4.10
6848
SENSING
TUBE
(push fit)
“O” RING
SEALS ON THE
FLUE
BLOCKAGE
SAFETY
DEVICE
SENSING
TUBE
ASSEMBLY
DRAUGHT
DIVERTER
SENSING
TUBE
(push fit)
LINT
ARRESTER
RETAINING CLIP
SENSING
TUBE
BRACKET
SECURING
SCREW
Diagram 4.11
6849
No. 8 3/8 in.
SCREW
REAR
SOCKET
FRONT
No. 8 1/2 in.
SCREWS
(BLACK)
Fully fit No. 8 3/8 in.
screw into rear of
socket. Centralise
flexible flue liner
using the two
No. 8 1/2 in.
screws provided.
Diagram 4.12
6873
GAS
SERVICE
COCK
BACK BOILER
ONLY 'ON'
TURNED FULLY
CLOCKWISE
BACK BOILER
AND FIRE FRONT
'ON'
TURNED TO
MID POSITION
'OFF'
TURNED FULLY
ANTI-CLOCKWISE
90
°
180
°
SUPPORT
WITH
A SPANNER
AT THIS
POINT
