INTRODUCTION

2.3

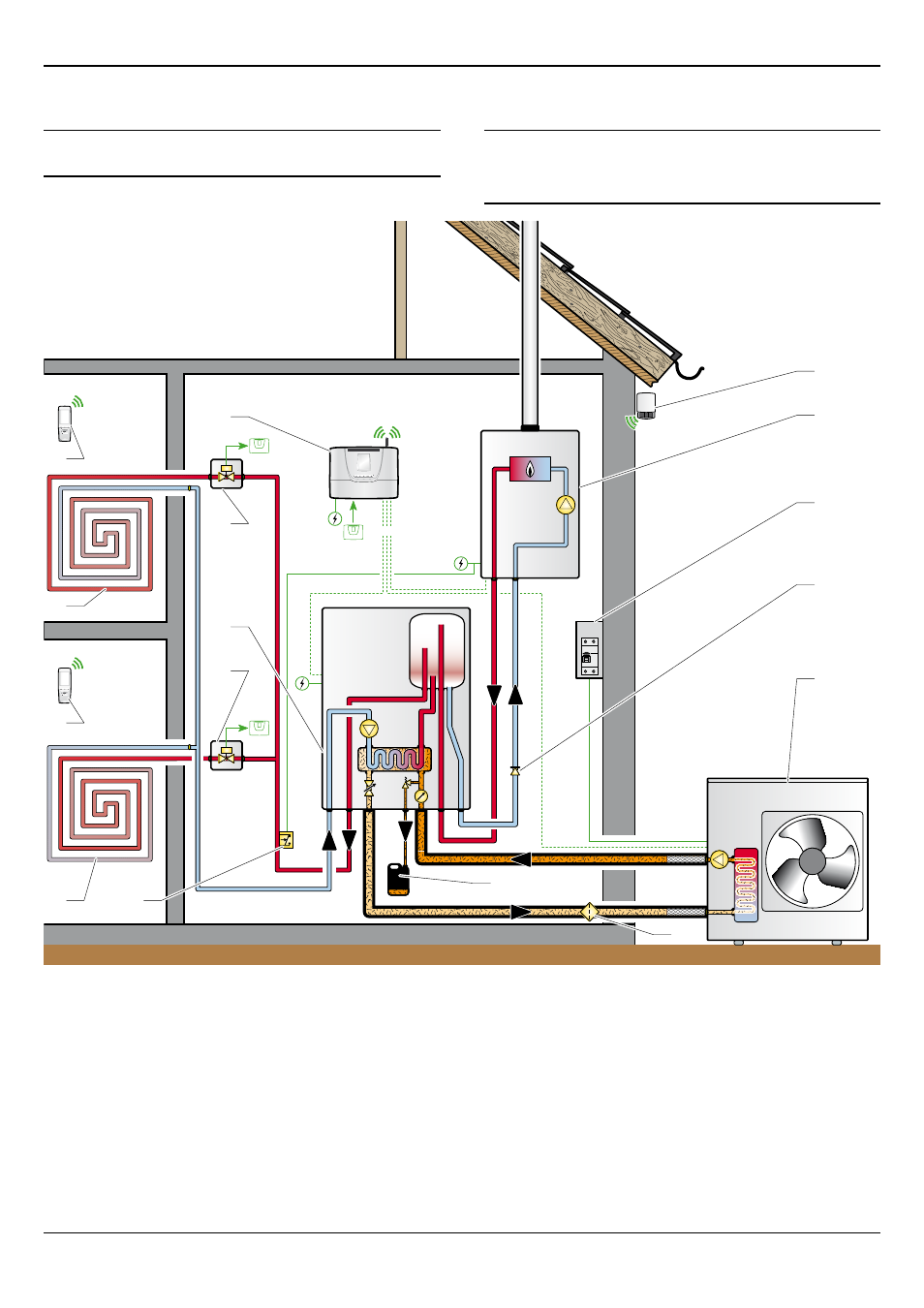

example of Installation – Diagram 10 (10.2) : Hybrid back-up with 2 low heating temperature

zones (30-40°C) or 2 high heating temperature zones (< 80°C)

13 Non-return valve

14 Heat pump

15 Heat pump circuit filter (not supplied)

16 glycol PRV discharge

A Heating circuit return

B Heating circuit flow

C boiler circuit return

D Boiler circuit flow

E Heat pump circuit flow

f Heat pump circuit return

g Heat pump circuit safety valve discharge

Key

1 Overheating safety (if underfloor heating)

2 Heating circuit "zone 1" (UFH shown, but can be underfloor or

radiators)

3 Climapro2 Rf programmable wireless room thermostat "zone 1"

4 2 port valve "heating zone 1"

5 Hydraulic module

6 Heating circuit "zone 2" (UFH shown, but can be underfloor or

radiators

7 Climapro2 Rf programmable wireless room thermostat "zone 2"

8 2 port valve "heating zone 2"

9 Systempro control unit

10 Wireless outdoor sensor

11 ebUS boiler

12 Heat pump electrical supply + protection (This must have it's

own single isolation)

Refer to the chapters “Hydraulic connection” and

“Electrical Connection” to connect the system.

This diagram shows the case of an installation with a

dual zone low temperature heating floor

(= outlet temperature < 40°C).

Zones must be same temperatures.

EBUS

230V
