INSTALLATION

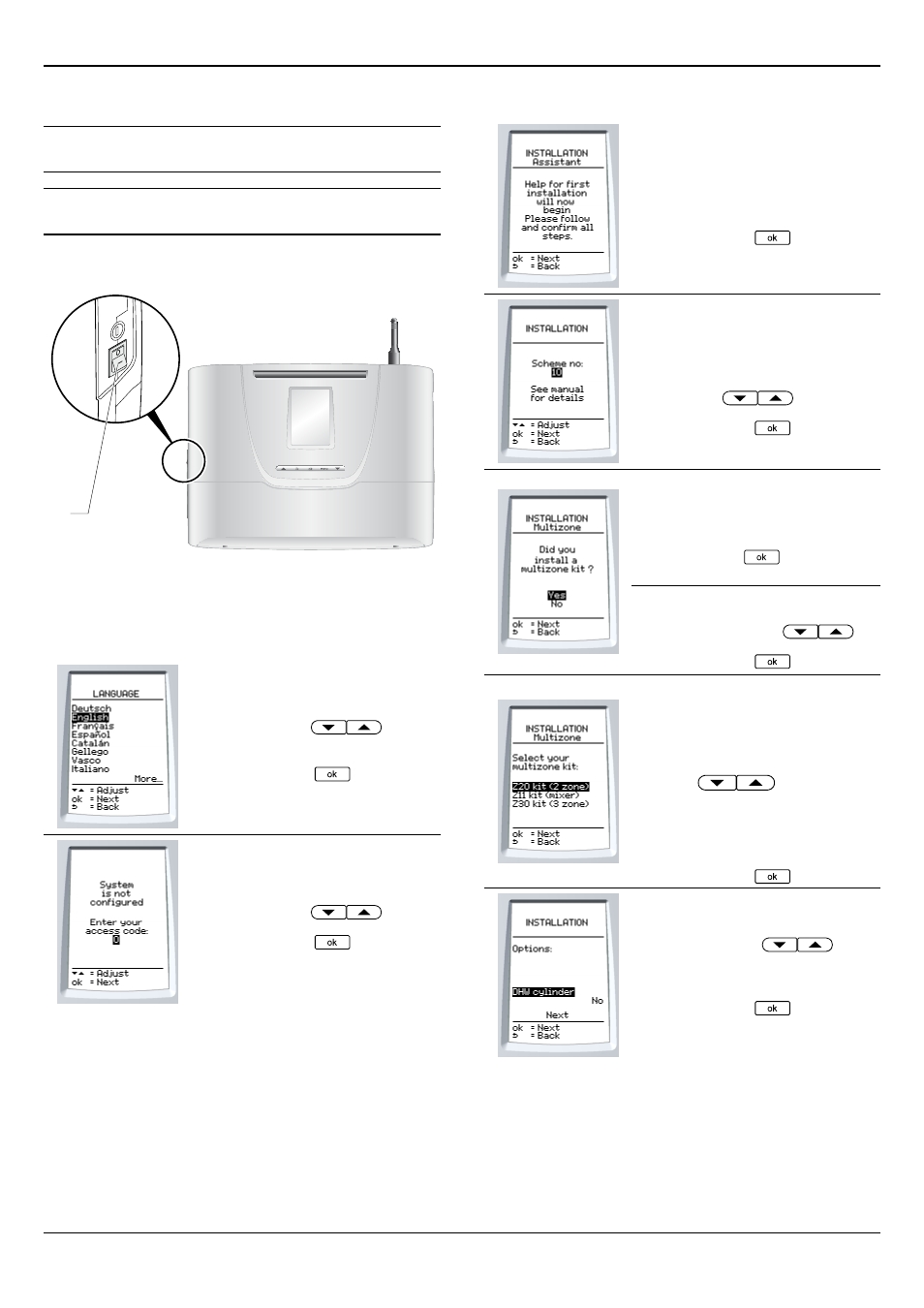

12 Activating the control unit
a Ensure that the heat pump and heating circuits
have been filled.
e Ensure that all the electrical connections have
been made.
• Switch ON the circuit breaker which is located on the
electrical panel and connected to the control unit.
1
Key
1 Switch On (I) / Off (O)
• Turn on the control unit (1) with the switch (2) in position (I).
When connected for the first time, the installation menu is
displayed.
• Use the buttons to select
a language.
• Press the button to confirm.
• Enter the installer access code 96
with the buttons .
• Press the button to confirm.
12.1 Configuring the installation
• Follow and confirm the steps
prompted by the initial installation
aid.
• Press the button to confirm.
Your system corresponds to diagram
number "10" in the control unit.
• Choose diagram number "10" with
the buttons .
• Press the button to confirm.
Multizone kit' refers to zone valves for
more than one heating zone.
• If so, choose "YES".
• Use the button to confirm and
follow the control unit instructions.
• If this is not the case and the
installation has only one zone, choose
"NO" with the buttons .
• Press the button to confirm.
This screen is only displayed if you
answered “YES” to the previous
question.
• Select number of heating zones
present on the system using the
buttons .
- Z20 kit = 2 heating zones
- Z11 kit = not available
- Z30 kit = 3 heating zones
• Press the button to confirm.
• Using the buttons ,
select DHW cylinder on the screen,
if the option is installed.
• Press the button to confirm.
