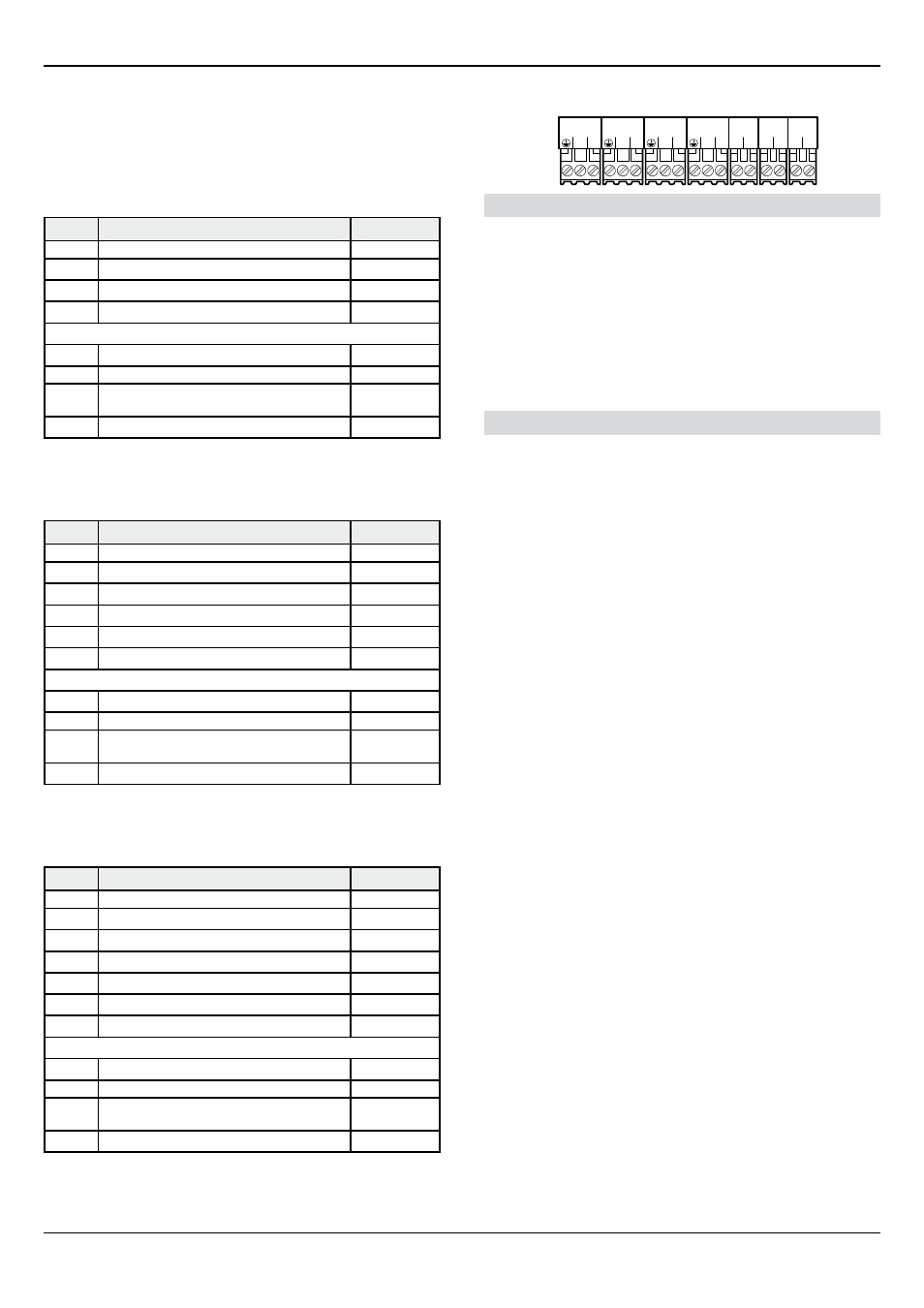

background image

0020096317_01 - 08/10 - Glow-worm

- 15 -

INSTALLATION

6.5.3

System connection

• Refer to the table below for the wiring of the systempro.

-

Diagram 10 (10.1) : Hybrid back-up with 1 low

heating temperature zone (30-40°C) or 1 high heating

temperature zone (< 80°C)

Key

Description

Cable min.

230V~

Control unit electrical supply

3 x 0.75 mm²

REL1

Hydraulic module 2 port valve

3 x 0.75 mm²

REL2

DHW cylinder 2 port valve (*)

3 x 0.75 mm²

IN1

DHW cylinder thermostat (*)

2 x 0.75 mm²

NTC2

DHW cylinder thermistor (*)

2 x 0.75 mm²

EBUS

EBUS connection of the heat pump

2 x 0.75 mm²

EBUS

EBUS connection of the boiler (respect the

polarity +/-)

2 x 0.75 mm²

EBUS

EBUS connection of the hydraulic module

2 x 0.75 mm²

-

Diagram 10 (10.2) : Hybrid back-up with 2 low heating

temperature zones (30-40°C) or 2 high heating

temperature zones (< 80°C)

Key

Description

Cable min.

230V~

Control unit electrical supply

3 x 0.75 mm²

REL1

Hydraulic module 2 port valve

3 x 0.75 mm²

REL2

DHW cylinder 2 port valve (*)

3 x 0.75 mm²

REL4

Heating circuit 2 port valve "area 2"

2 x 0.75 mm²

REL5

Heating circuit 2 port valve "area 1"

2 x 0.75 mm²

IN1

DHW cylinder thermostat (*)

2 x 0.75 mm²

IN3

DHW cylinder thermistor (*)

2 x 0.75 mm²

EBUS

EBUS connection of the heat pump

2 x 0.75 mm²

EBUS

EBUS connection of the boiler (respect the

polarity +/-)

2 x 0.75 mm²

EBUS

Connexion EBUS du module hydraulique

2 x 0.75 mm²

-

Diagram 10 (10.2) : Hybrid back-up with 3 low heating

temperature zones (30-40°C) or 3 high heating

temperature zones (< 80°C)

Key

Description

Cable min.

230V~

Control unit electrical supply

3 x 0.75 mm²

REL1

Hydraulic module 2 port valve

3 x 0.75 mm²

REL2

DHW cylinder 2 port valve (*)

3 x 0.75 mm²

REL3

Heating circuit 2 port valve "area 3"

2 x 0.75 mm²

REL4

Heating circuit 2 port valve "area 2"

2 x 0.75 mm²

REL5

Heating circuit 2 port valve "area 1"

2 x 0.75 mm²

IN1

DHW cylinder thermostat (*)

2 x 0.75 mm²

IN3

DHW cylinder thermistor (*)

2 x 0.75 mm²

EBUS

EBUS connection of the heat pump

2 x 0.75 mm²

EBUS

EBUS connection of the boiler (respect the

polarity +/-)

2 x 0.75 mm²

EBUS

Connexion EBUS du module hydraulique

2 x 0.75 mm²

6.5.4

Connection of the 2 port valve

1

3

L

N

230V~

1

3

L

N

REL1

1

3

L

N

REL2

1

3

L

N

REL3

1

2

L

N

REL4

1

2

L

N

REL5

1

2

L

N

IN1

When the 2 port valve is connected to REL3:

• Connect the neutral wire (blue) of the valve to the “N” of the

REL3 connector.

• Connect the live wire (brown) of the valve to the “L” of the

REL3 connector.

• Connect the earth wire (yellow/green) of the valve to the

earth of the REL3 connector.

• Electrically insulate the red and grey wires of the valve as

they are not used.

When the 2 port valve is connected to REL4 or 5:

• Connect the neutral wire (blue) of the valve to the “N” and

the live wire (brown) of the valve to the “L” of the REL4 or 5

connector.

• Connect the earth wire (yellow/green) of the valve to the

earth of the REL3 connector.

• Electrically insulate the red and grey wires of the valve as

they are not used.
