INSTALLATION

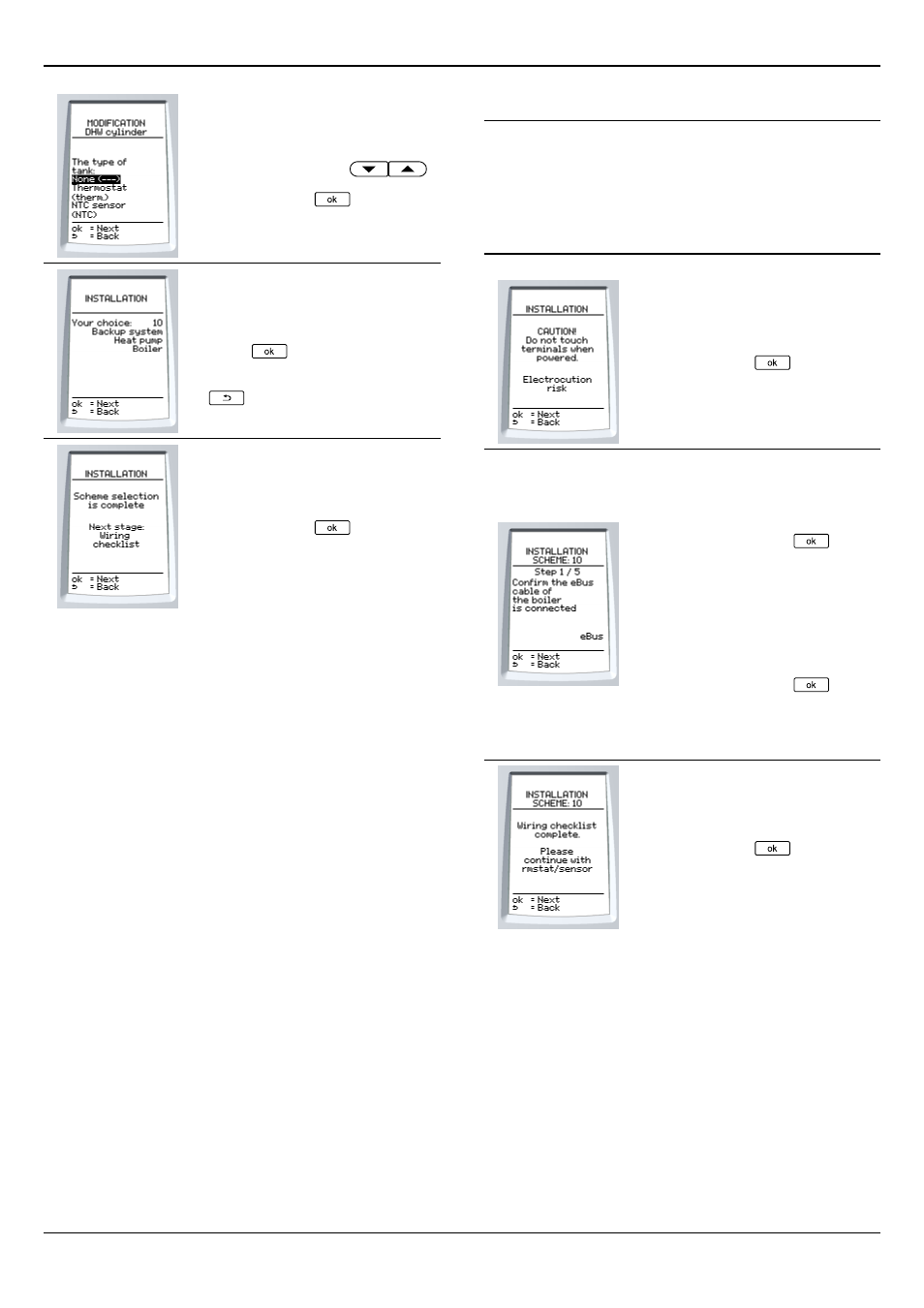

• Select the corresponding cylinder
type using the buttons
.
• Press the button
to confirm.
The control unit summarizes your
installation.
• If this is correct, confirm with the
button
.
• If it is not correct, press the button
and change the data you
introduced.
• Press the button
.
12.2 Wiring summary
e
To check or modify a connection:
• Set the control box switch to the Off (O)
position.
• Set the circuit breaker located on the
electrical panel and connected to the control
box to the Off position.
• Press the button
.
Via the screen, you will be asked to
verify, step by step, the connections you
made to the control unit.
• If the connections are correct,
confirm with the button
.
• If they are not correct, disconnect
the control unit’s power supply and
complete the necessary wiring as
indicated.
• Once completed, connect on the
control unit’s power supply and
confirm with the button
.
Once the control unit has been
reconnected, it returns to the current
control function.
• Press the button
.
