INTRODUCTION

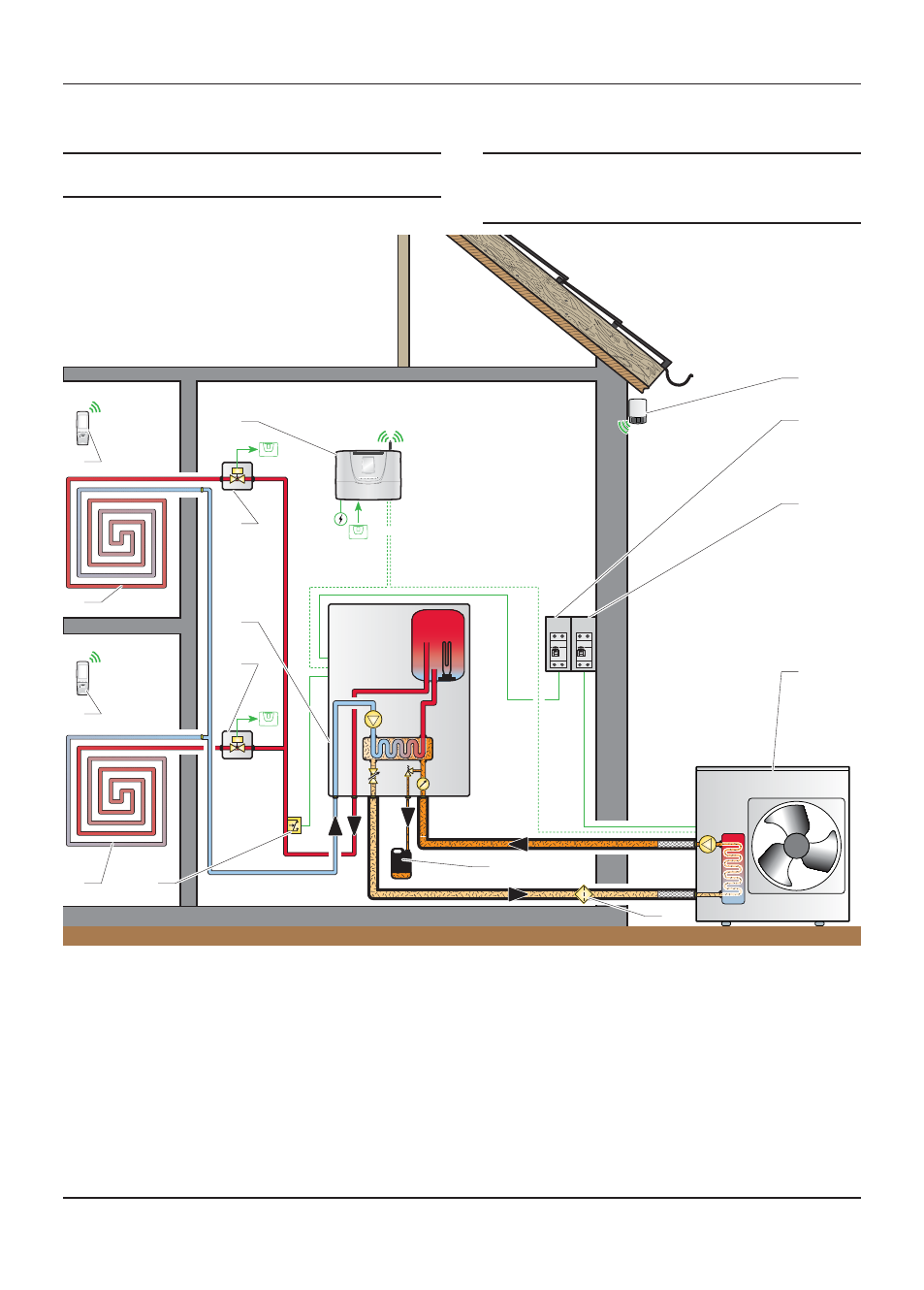

2.3 Example of Installation – Diagram 4 (4.2) : Standalone with 2 low heating temperature zones (30-
40°C) or 2 middle heating temperature zones (< 60°C)
i
Refer to the chapters “Hydraulic connection” and
“Electrical Connection” to connect the system.
b This diagram shows the case of an installation with a
dual zone low temperature heating fl oor
(= outlet temperature < 40°C).
Zones must be same temperatures.
230V
EBUS
D
E
C
B
A
230V
2 1
3
5
4
6
7
8
9 11
10
12
15
14
13
Key
1
Overheating safety (if underfl oor heating)
2 Heating circuit "zone 1" (UFH shown, but can be underfl oor or
radiators)
3 Climapro2 RF programmable wireless room thermostat "zone 1"
4 2 port valve "heating zone 1"
5 "Electrical" hydraulic module
6 Heating circuit "zone 1" (UFH shown, but can be underfl oor or
radiators)
7 Climapro2 RF programmable wireless room thermostat "zone 2"
8 2 port valve "heating zone 2"
9 Systempro control unit
10 Wireless outdoor sensor
11 "Electrical" hydraulic module electrical supply + protection
(This must have it's own single isolation)
12 Heat pump electrical supply + protection (This must have it's
own single isolation)
13 Heat pump
14 Heat pump circuit fi lter (not supplied)
15 Glycol PRV discharge
A Heating circuit return
B Heating circuit fl ow
C Heat pump circuit safety valve discharge
D Heat pump circuit fl ow
E Heat pump circuit return
