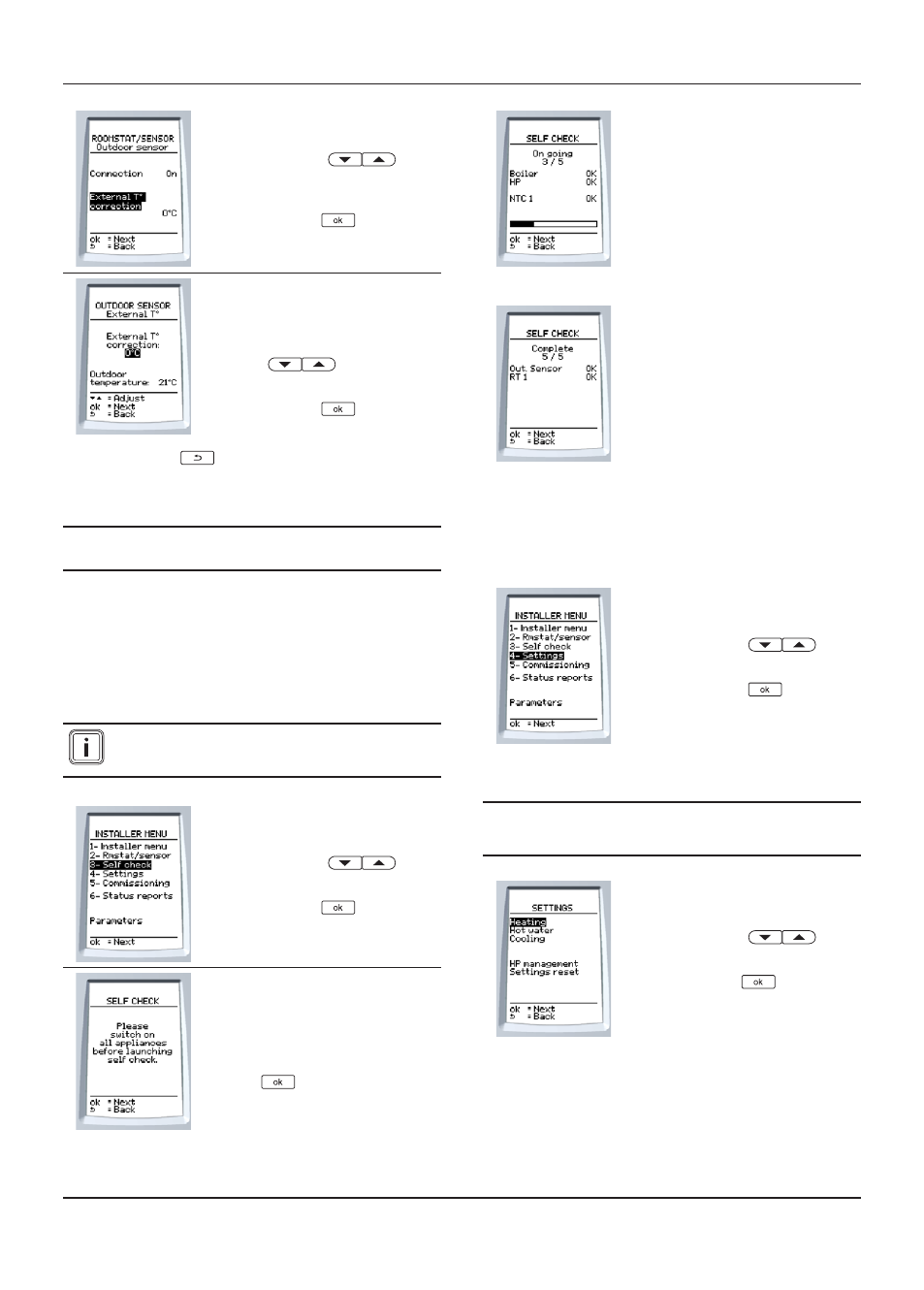

INSTALLATION
• Using the buttons ,
select External T ºC correction on
the screen.
• Press the button to confi rm.
This setting is automatically modifi ed in
the installer room thermostat menu.
• Increase or decrease with the
buttons to display the
desired correction.
• Press the button to confi rm.
• Press the button twice.
10.6 Self check
e
Do not modify the cables when connected to the
mains.
The automatic test allows you to check:
- EBUS inputs,
- NTC inputs,
- the RF connection with the room thermostat,
- the outdoor sensor radio connection.
The other connections are not tested and should be
visually inspected during installation or confi guration
modifi cations.
• Using the buttons ,
select Self check on the screen.
• Press the button to confi rm.
• Check that all installation’s
components are switched on.
• Confi rm the start of the test with the
button .

The automatic test will start.
The results appear in seconds,
indicating the status of each
component.
- If the connection is correct, the
message "OK" appears opposite the
component.
- If the connection is not correct, the
message "Not OK" appears opposite
the component.
In this case, check the connections.
10.7 Settings
This menu allows you to adjust different functions in accordance
with the connected appliances and to reset all the parameters.
• Using the buttons ,
select Settings on the screen.
• Press the buttony to confi rm.
10.7.1 Heating
b
The maximum heating output temperature must be
adjusted in accordance with the characteristics of
your installation.
• Using the buttons ,
select Heating on the screen.
• Press the button to confi rm.
