EZ-ACCESS TITA MODULAR ACCESS SYSTEM - Manual (Page 5)

– 5 –
1.5 Platforms over 3 ft. high from the ground require cross bracing.
1.5.1 Insert legs into platform and set platform at required height as described in previous steps.
1.5.2 Separate ends of brace bands until they go around the 1-1/2” square tube and install four
bands on each leg with the part containing bolt holes at 90 degrees from each other and in
line with the outer edge of the foot (FIG. 3).
1.5.3 The cross brace will come assembled with one bolt in the center. The brace assembly
should be placed approximately in the middle of the platform legs on all four sides with the
top brace bands approximately 2 ft. from the bottom brace bands.
1.5.4 If needed for the location, trim the ends of the brace assembly to fit.
1.5.5 Drill one 11/32” dia. hole on center approximately 1/2” from the end of each brace.
1.5.6 Install brace assembly using four 5/16”-18 x 1-1/2” long carriage bolts, nuts and washers in
the desired location (FIG. 4).
1.5.7 Tighten all fasteners securely.

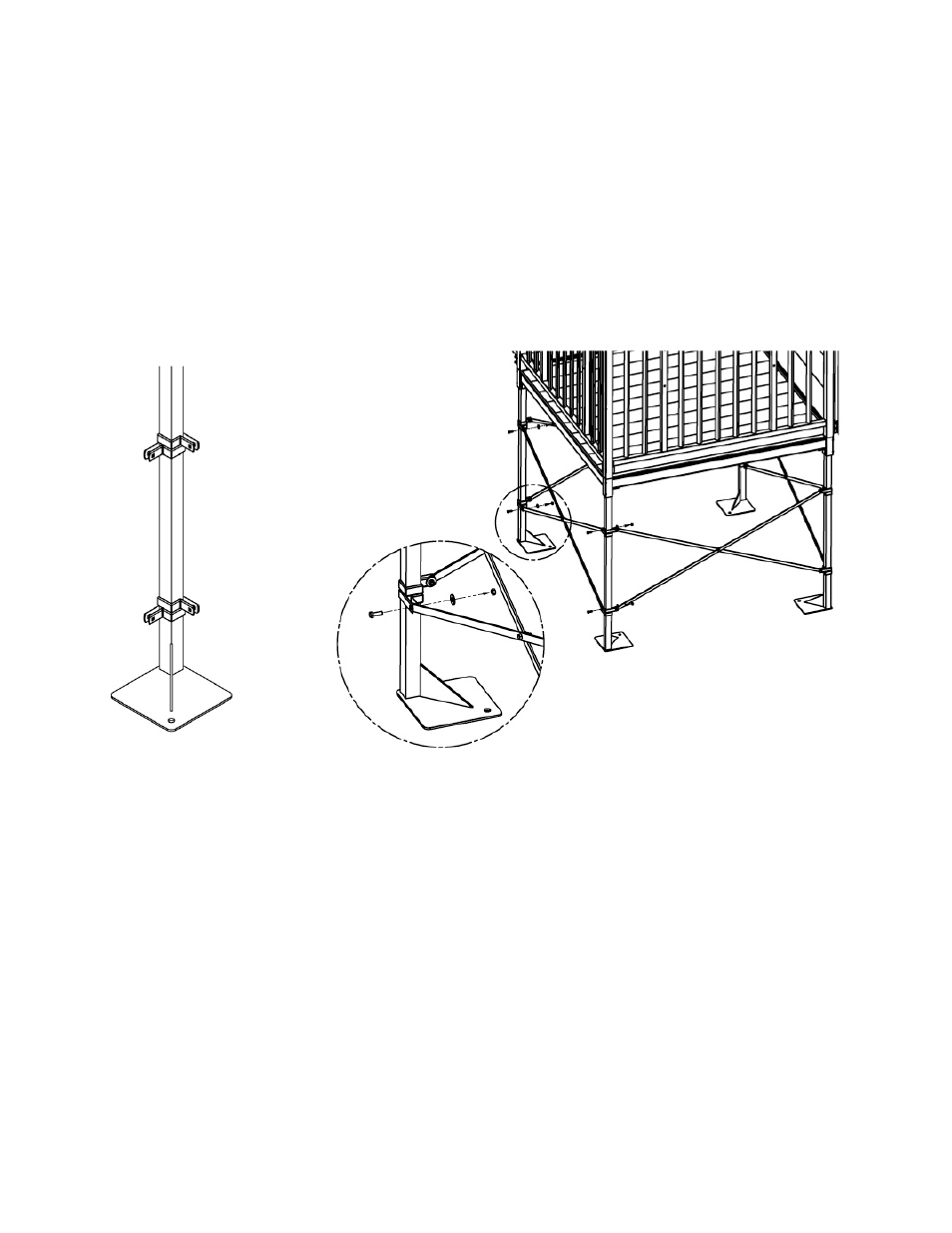

FIG. 3 FIG. 4
1.6 If using two platforms to create a turn-back, connect platforms using the two Dual Platform
Connector Kits provided.
1.6.1 On the first platform, install a dual platform connector on each of the two legs that will be
adjacent to the second platform. Make sure that the pocket of the connector is oriented to
the outside of the first platform in the direction of the second platform and that the setscrews
are facing in a direction where they will be accessible (FIG. 5).
1.6.2 Install legs and set the first platform at required height (as described in previous steps).
1.6.3 Bring both connectors up until they touch the bottoms of the corner pockets in the platforms
and tighten the setscrews securely (FIG. 6).
1.6.4 On the second platform install the two legs that will be opposite the first platform and set
them to the same height as the first platform, then set the two corner pockets of the second
platform on top of the platform connectors (FIG. 6).
1.6.5 Install two 1-1/2” square x 36” long tube through platform corner pockets and connectors
until it aligns with bottom of connector, then tighten all setscrews securely (FIG. 7).
