– 18 –

8.2

At the bottom of the ramp (i.e., ground), install two lower loops into the ends of each handrail
(FIG. 34).

8.2.1 Install upper portion of loop to handrail using a 4” joiner. Tighten setscrew enough to hold

in place, but leave loose enough to rotate.

8.2.2 Rotate lower portion of loop until it lines up with ramp guard post. Mark center, then drill

5/16” hole through post. Secure lower end of loop with 5/16”-18 x 2” button head bolt
through the drilled hole and into threaded insert in lower end of loop.

8.2.3 Attach tab on bottom of loop by drilling a 5/16” dia. hole through the channel at the end of

the ramp guardrail and securing with a 5/16”-18 x 3” button head bolt, three washers and
nut. Place nut and two washers on outside of ramp and place one washer between the
head of the bolt and the tab on the loop.

8.2.4 Tighten all fasteners securely.

8.3

At a straight through resting platform (FIG. 34):

8.3.1 Install two upper loops at the top of the ramp and two lower loops at the start of the next

run in the same manner as above. Note: The only difference between the upper and lower
loop installation is that the upper loop uses a 4” ring joiner instead of the standard 4” joiner.

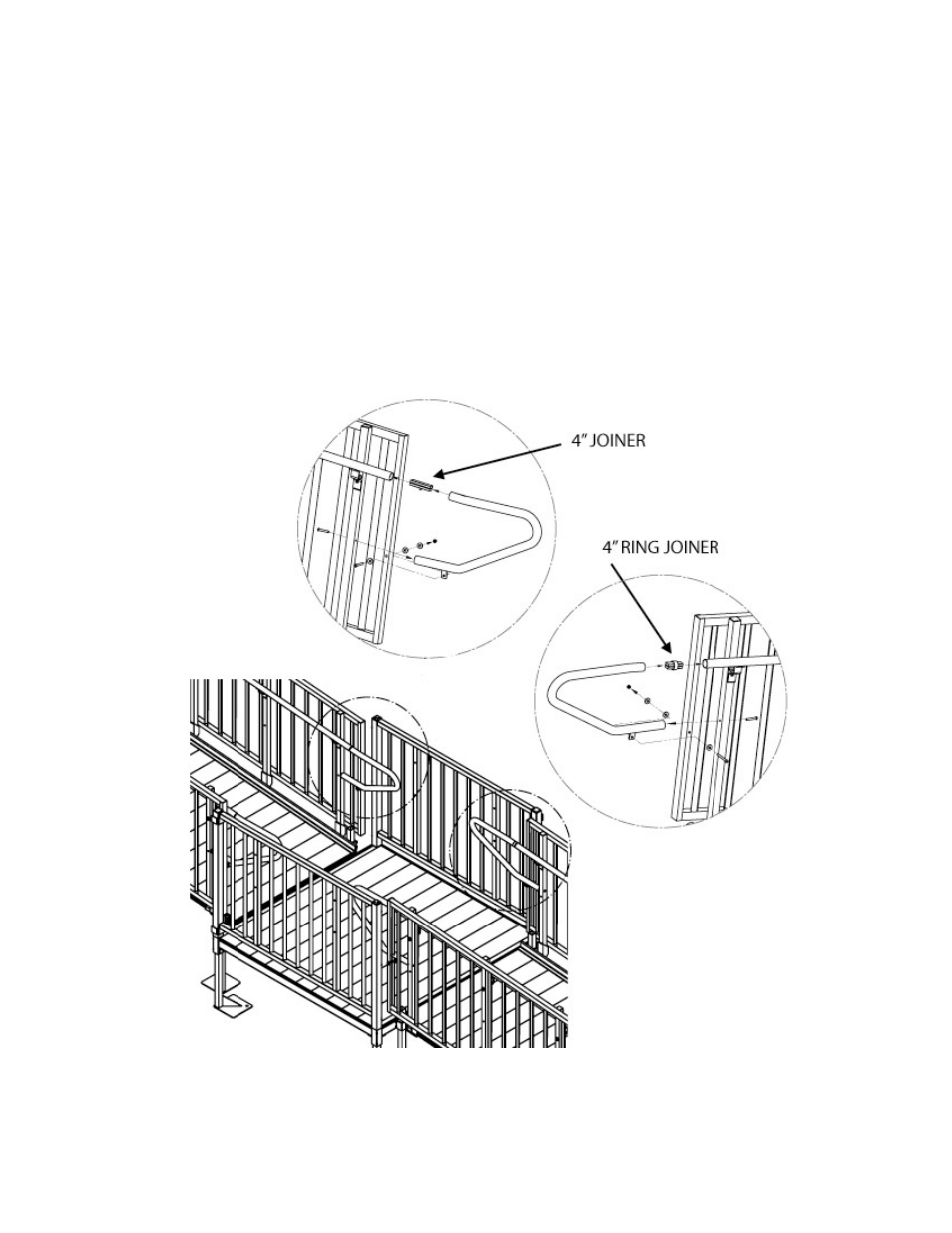

FIG. 34
